Upper Garnish Molding Replacement - Liftgate (Five Door)

Upper Garnish Molding Replacement - Liftgate (Five Door)

Removal Procedure

1. Open the liftgate.

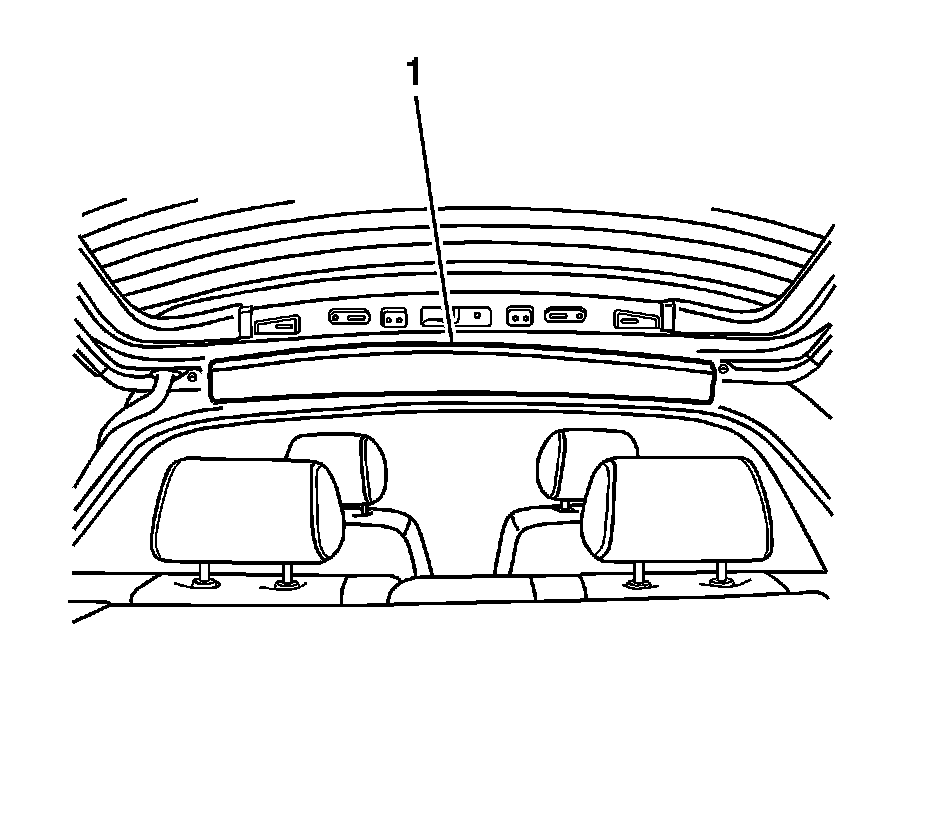

2. Pry the liftgate upper garnish molding (1) from the liftgate.

Installation Procedure




1. Position the upper garnish molding.
2. Press the liftgate upper garnish molding (1) to the liftgate.
