Quarter Lower Rear Trim Panel Replacement

Quarter Lower Rear Trim Panel Replacement

Removal Procedure




1. Remove the rear seat. Refer to Rear Seat Cushion Replacement Service and Repair and Rear Split Folding Seat Back Replacement Rear Split Folding Seat Back Replacement.
2. Remove the seat belt bolt.

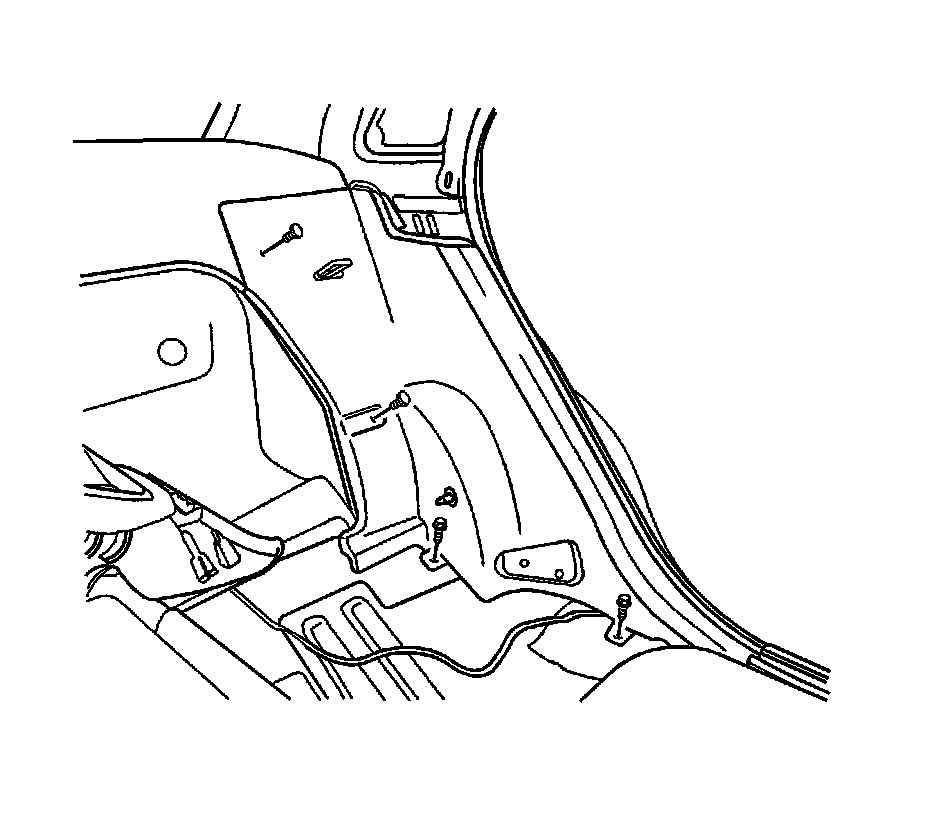

3. Remove the screws and the rear wheelhouse trim.

Installation Procedure




1. Install the rear wheelhouse trim with the screws.
2. Install the seat belt bolt.
3. Install the rear seat. Refer to Rear Seat Cushion Replacement Service and Repair and Rear Split Folding Seat Back Replacement Rear Split Folding Seat Back Replacement.
