Home >> Chevrolet >> 2004 >> Optra (CANADA) L4-2.0L >> Repair and Diagnosis >> Body and Frame >> Diagrams >> Electrical Diagrams

Electrical Diagrams




Body Rear End Schematics

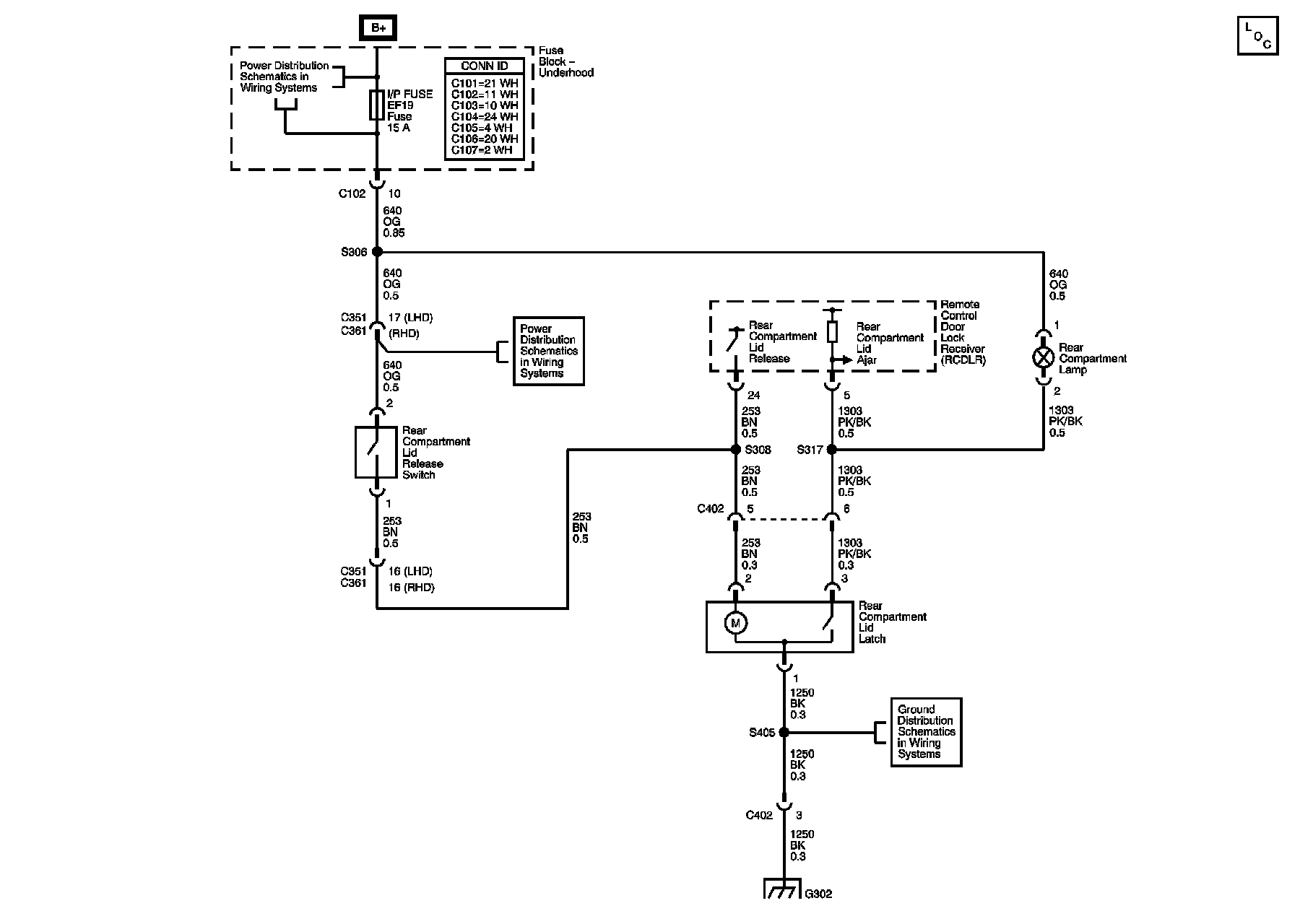

Rear Compartment Lid Release (Notchback)
