Diagnostic System Check - Theft Deterrent

Diagnostic System Check - Theft Deterrent

Test Description

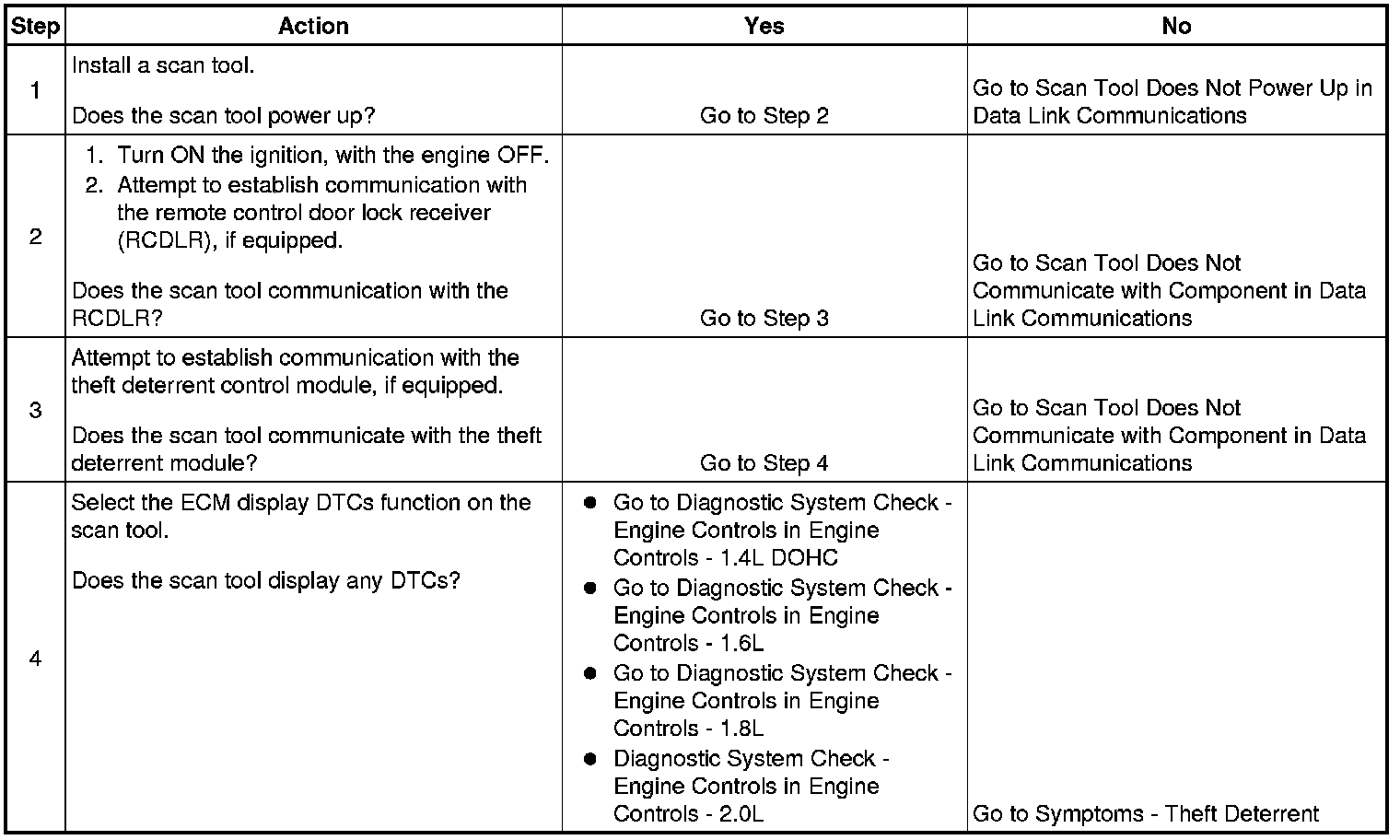

The number below refers to the step number on the diagnostic table.
2. Lack of communication may be due to a partial malfunction of the serial data circuit or due to a total malfunction of the serial data circuit. The specified procedure will determine the particular condition.
