Diagnostic System Check - Remote Keyless Entry

Diagnostic System Check - Remote Keyless Entry

Test Description

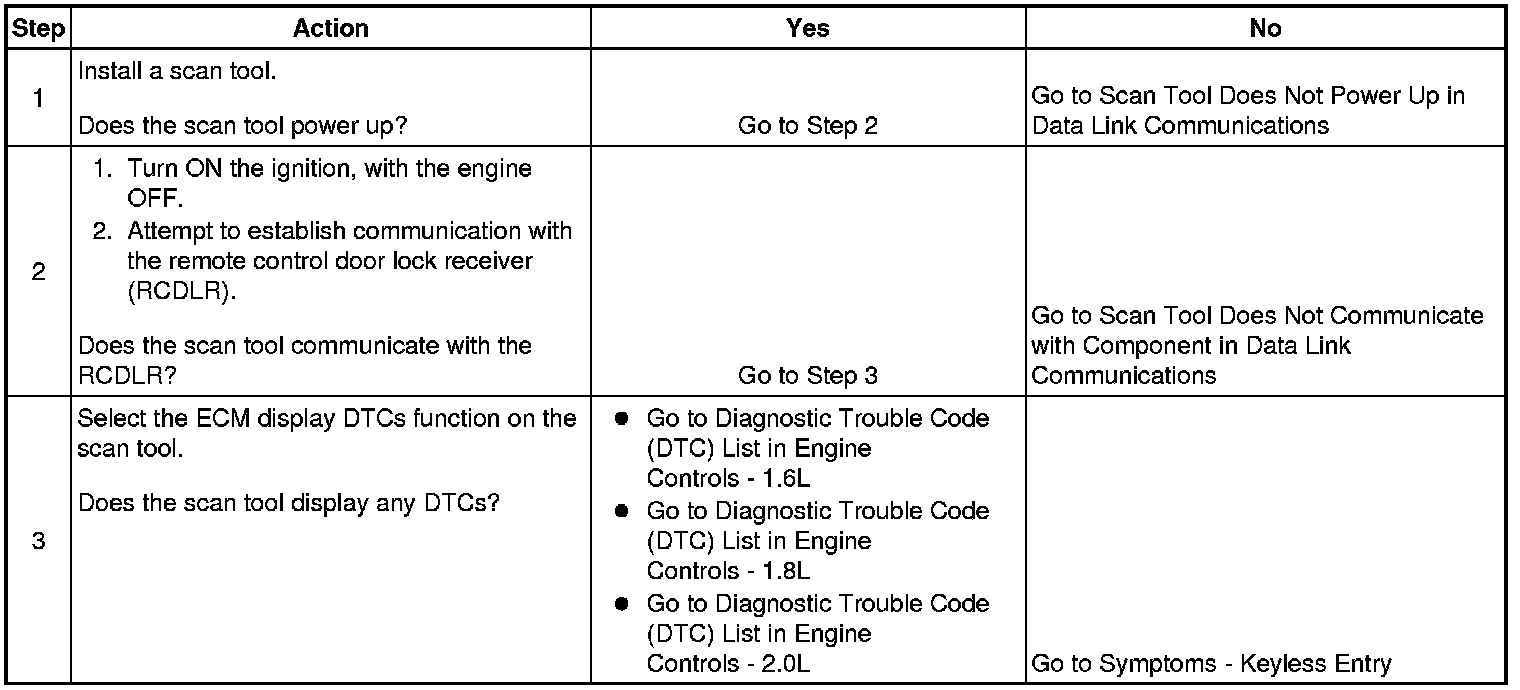

The numbers below refer to the step numbers on the diagnostic table.
2. Lack of communication may be due to a partial malfunction of the serial data circuit or due to a total malfunction of the serial data circuit. The specified procedure will determine the particular condition.
