Home >> Chevrolet >> 2004 >> Monte Carlo V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Window Switch - Driver

Window Switch - Driver

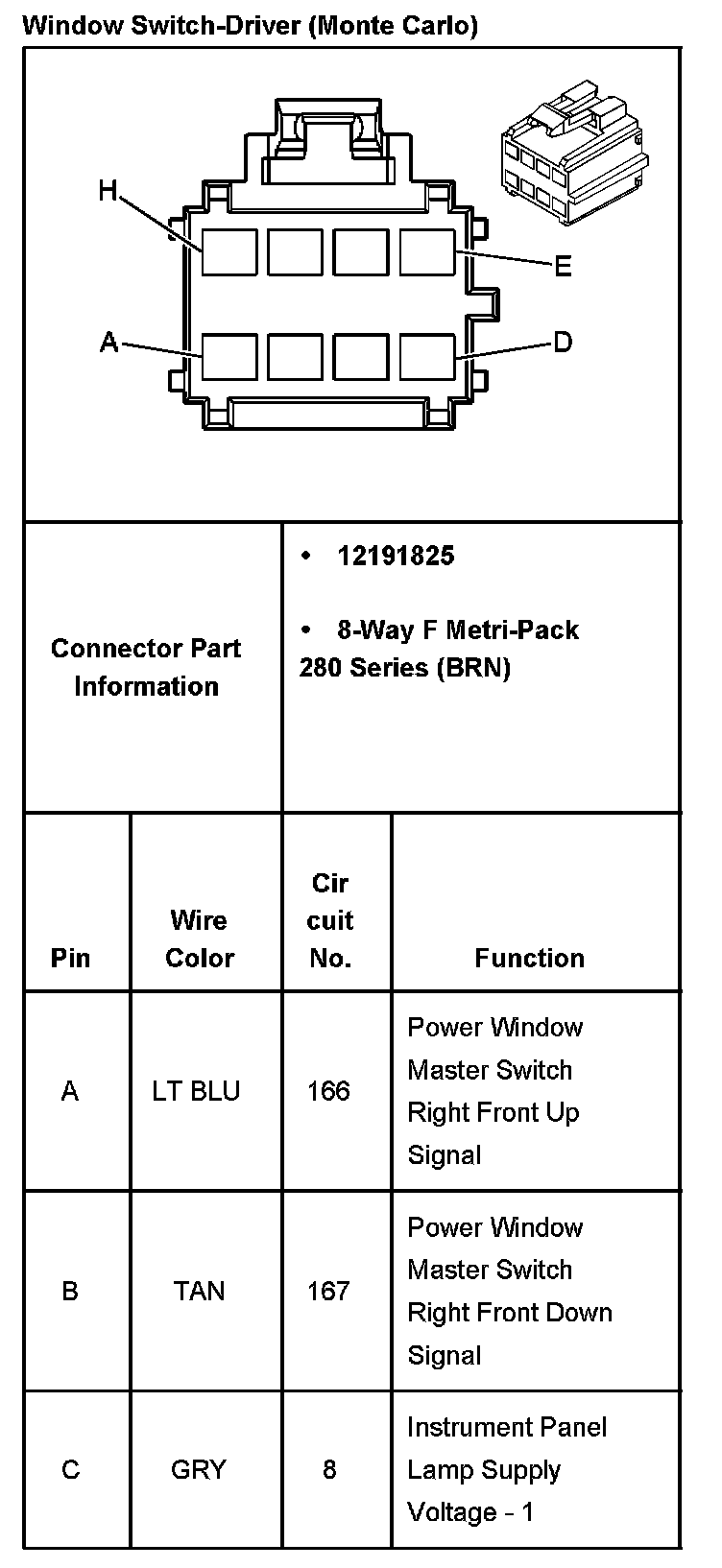

Window Switch-Driver Part 1:

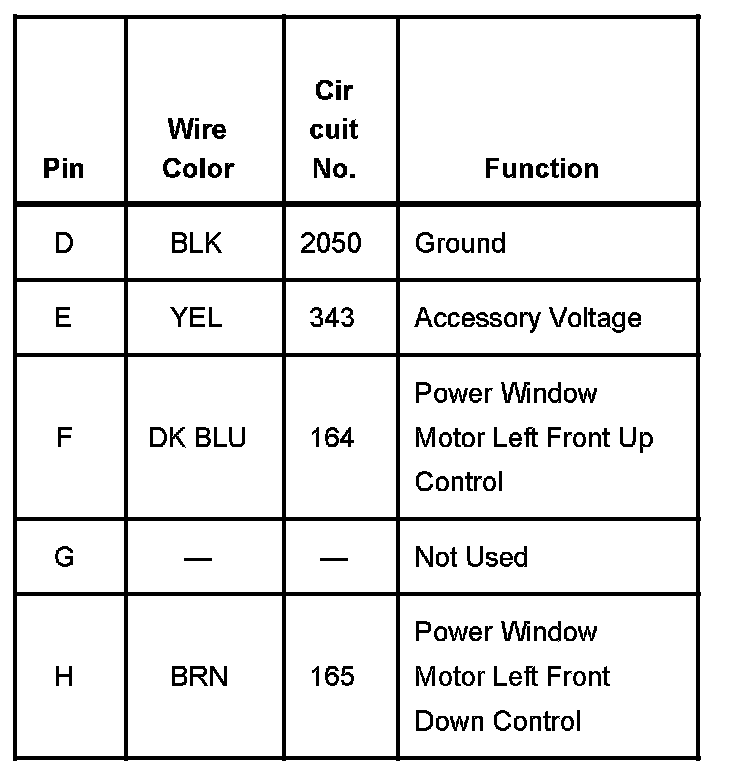

Window Switch-Driver Part 2:
