Generator Replacement

GENERATOR REPLACEMENT

The generator does not require periodic lubrication. The rotor shaft is mounted on bearings. Each bearing contains a permanent grease supply. Periodically check the mounting bolts for tightness, and the drive belt tension. The drive belt is self-adjusting, within the operating limits of the tensioner. Refer to Engine for tensioner information.

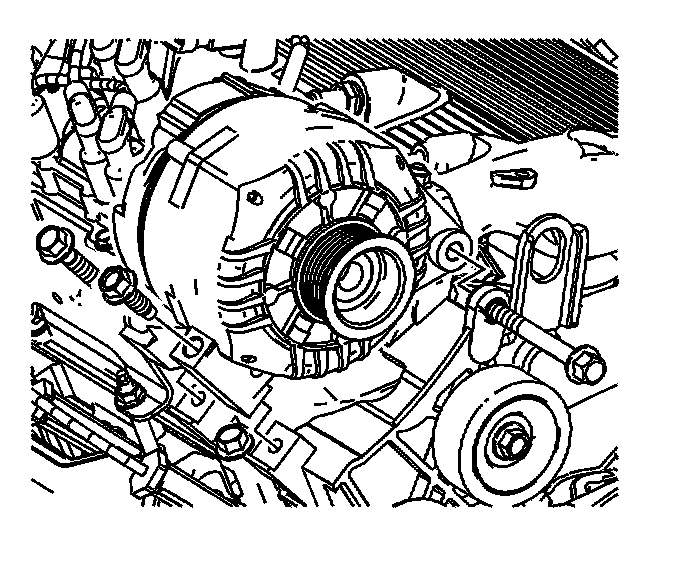

Removal Procedure

IMPORTANT: Service the generator as a complete unit.

1. Disconnect the negative battery cable.
2. Remove the drive belt.
3. Remove the generator electrical connections.




4. Remove the generator mounting nuts and bolts.
5. Remove the generator.

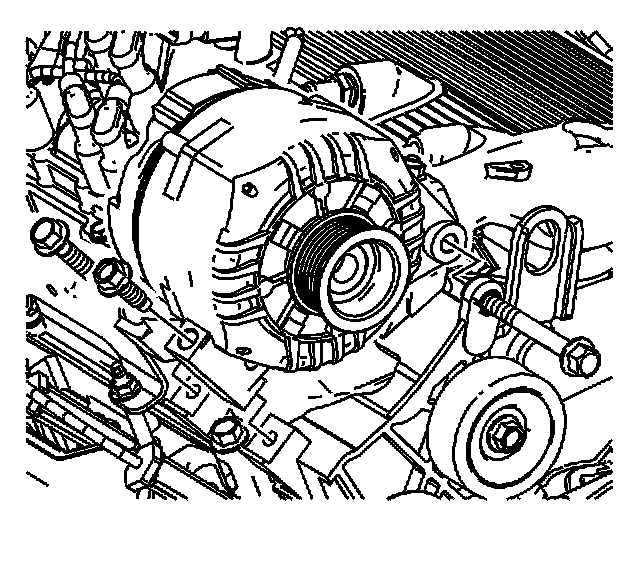

Installation Procedure

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the generator.

Tighten
- Tighten the bolts to 50 N.m (37 lb ft).
- Tighten the nuts to 30 N.m (22 lb ft).

1. Install the generator electrical connections.
2. Install the drive belt.
3. Connect the negative battery cable.
