Home >> Chevrolet >> 2004 >> Malibu V6-3.5L VIN 8 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram >> Intake Manifold and Components

Intake Manifold and Components

Disassembled Views

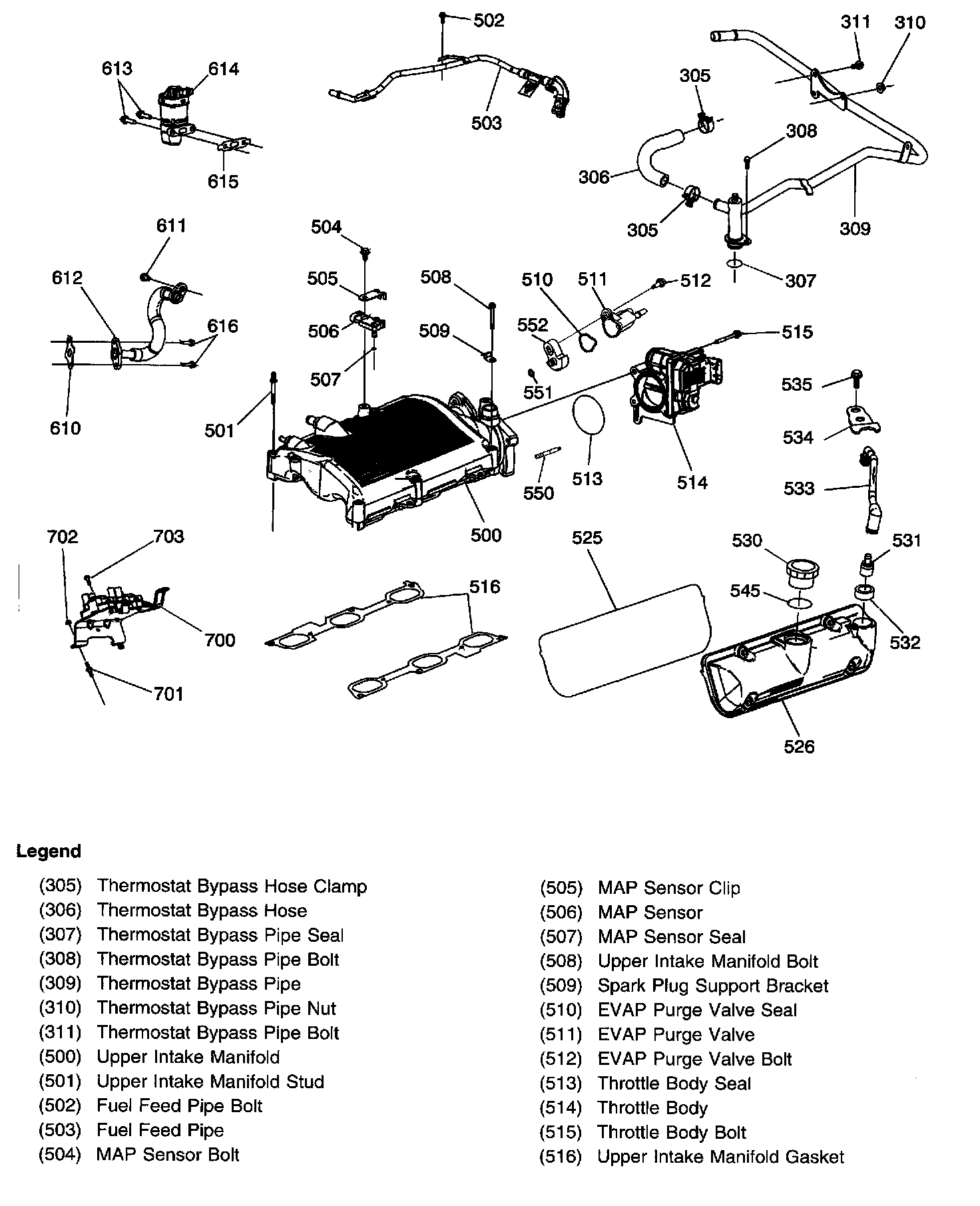

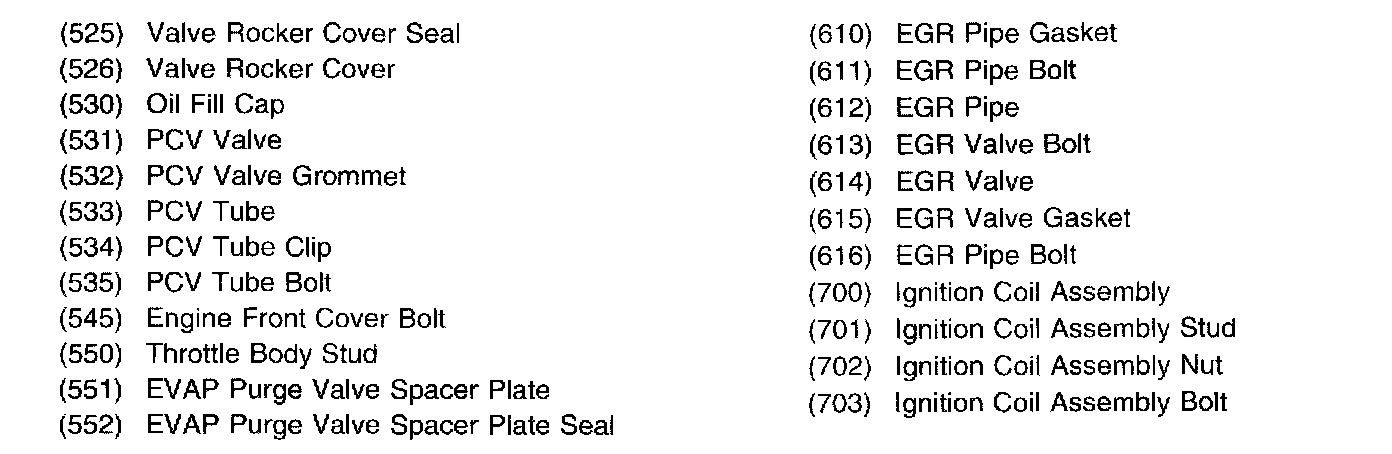

Upper Intake Manifold and Components

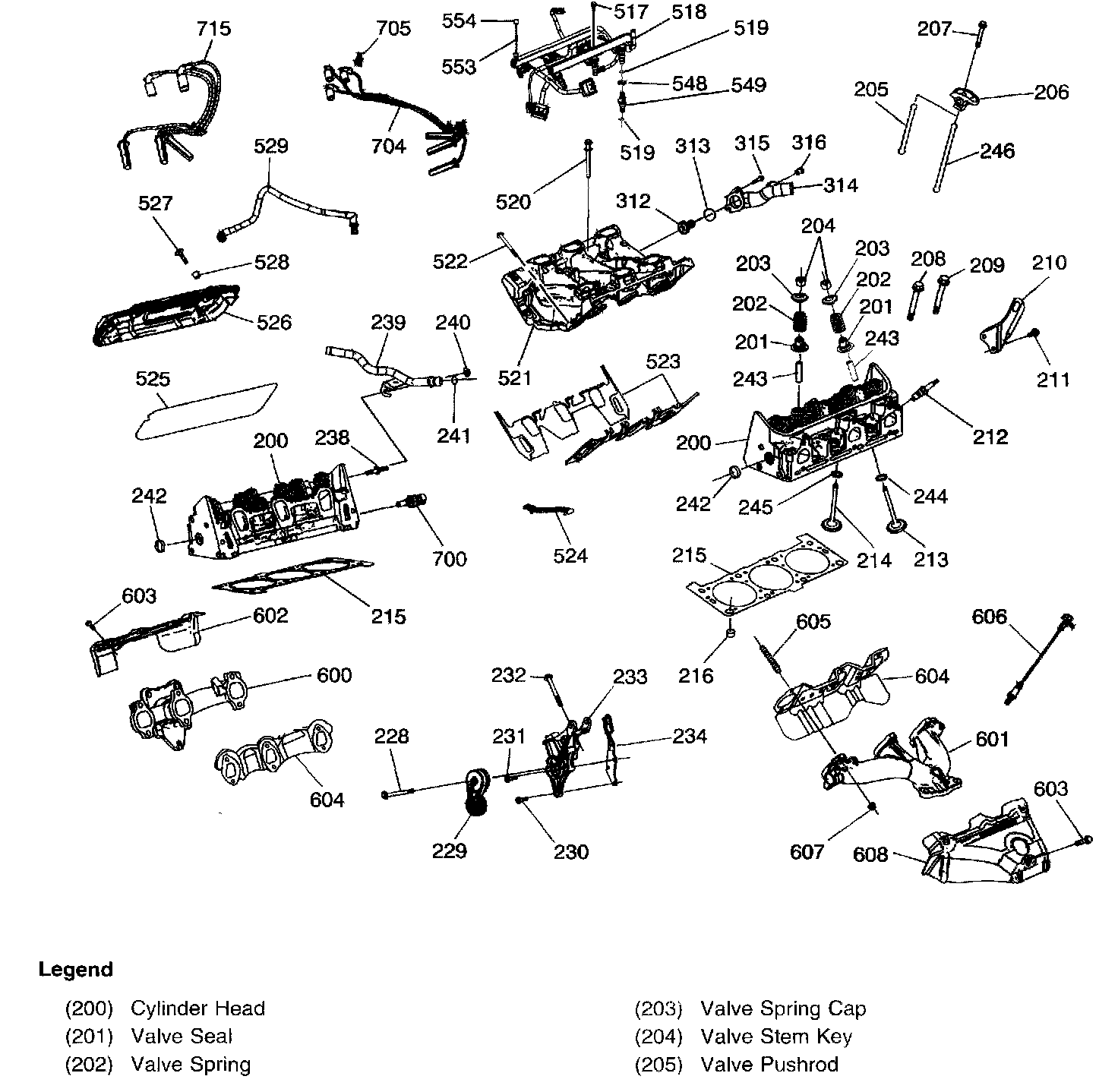

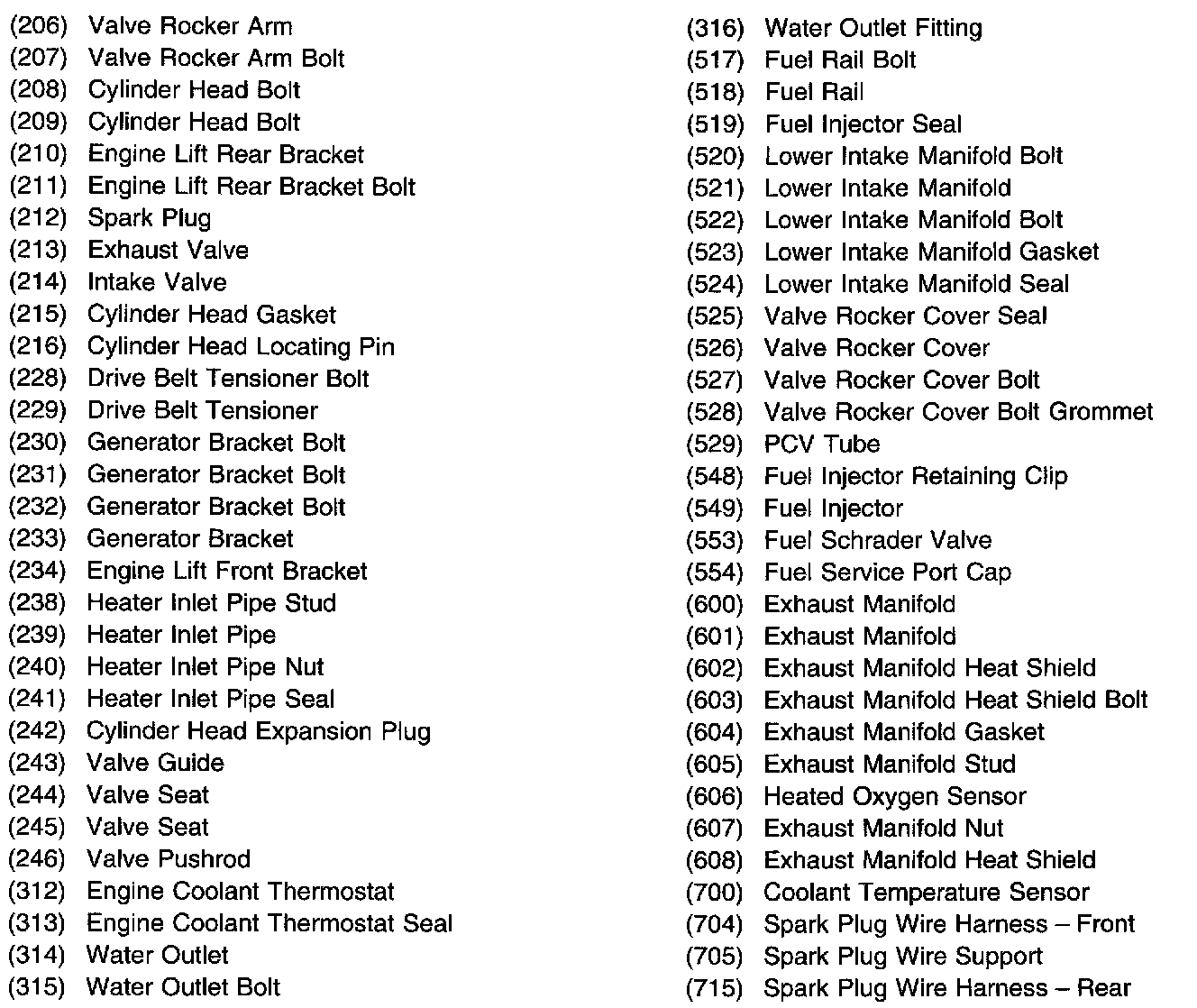

Lower Intake Manifold. Cylinder Head and Components
