Home >> Chevrolet >> 2004 >> Malibu L4-2.2L VIN F >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List - BCM

Scan Tool Data List - BCM

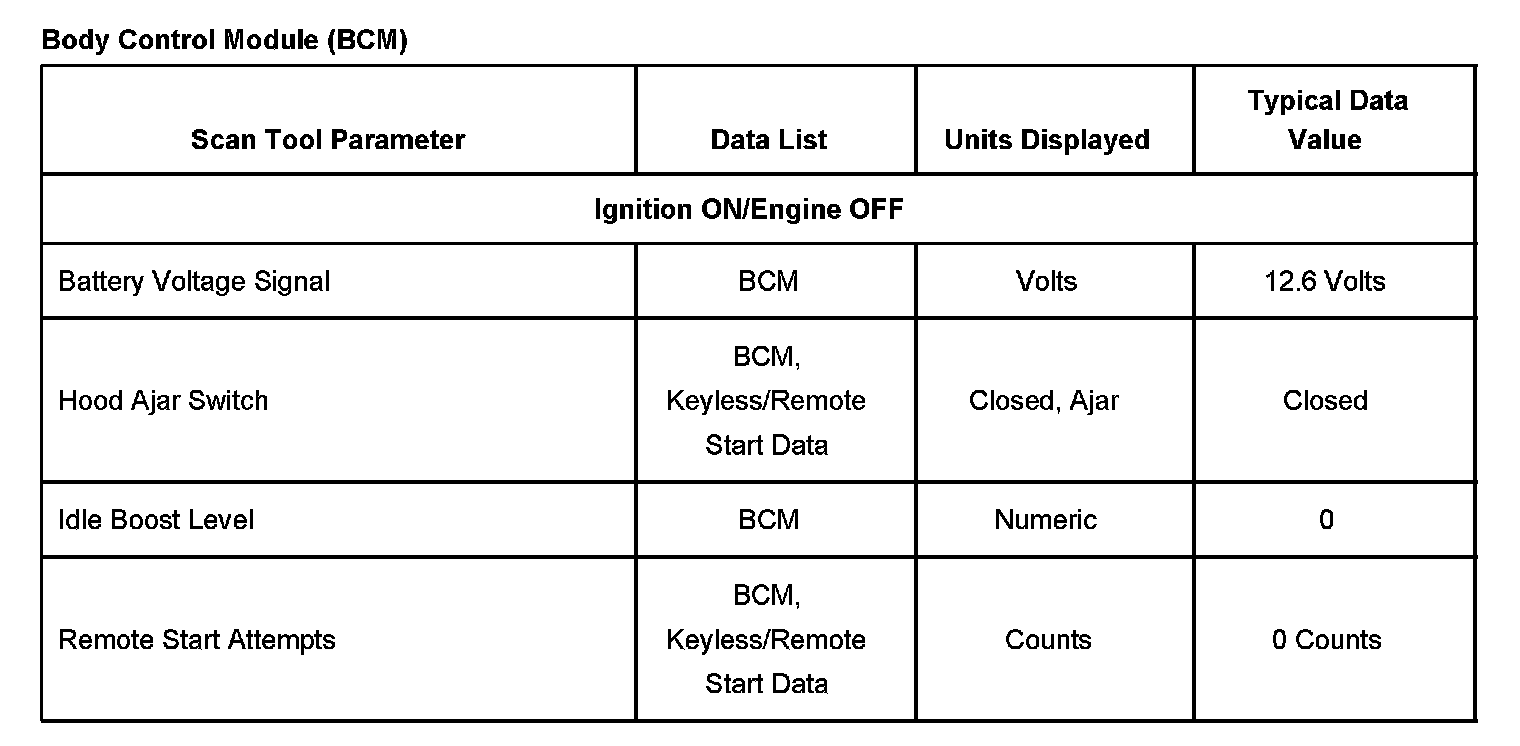

Body Control Module (BCM) Part 1:

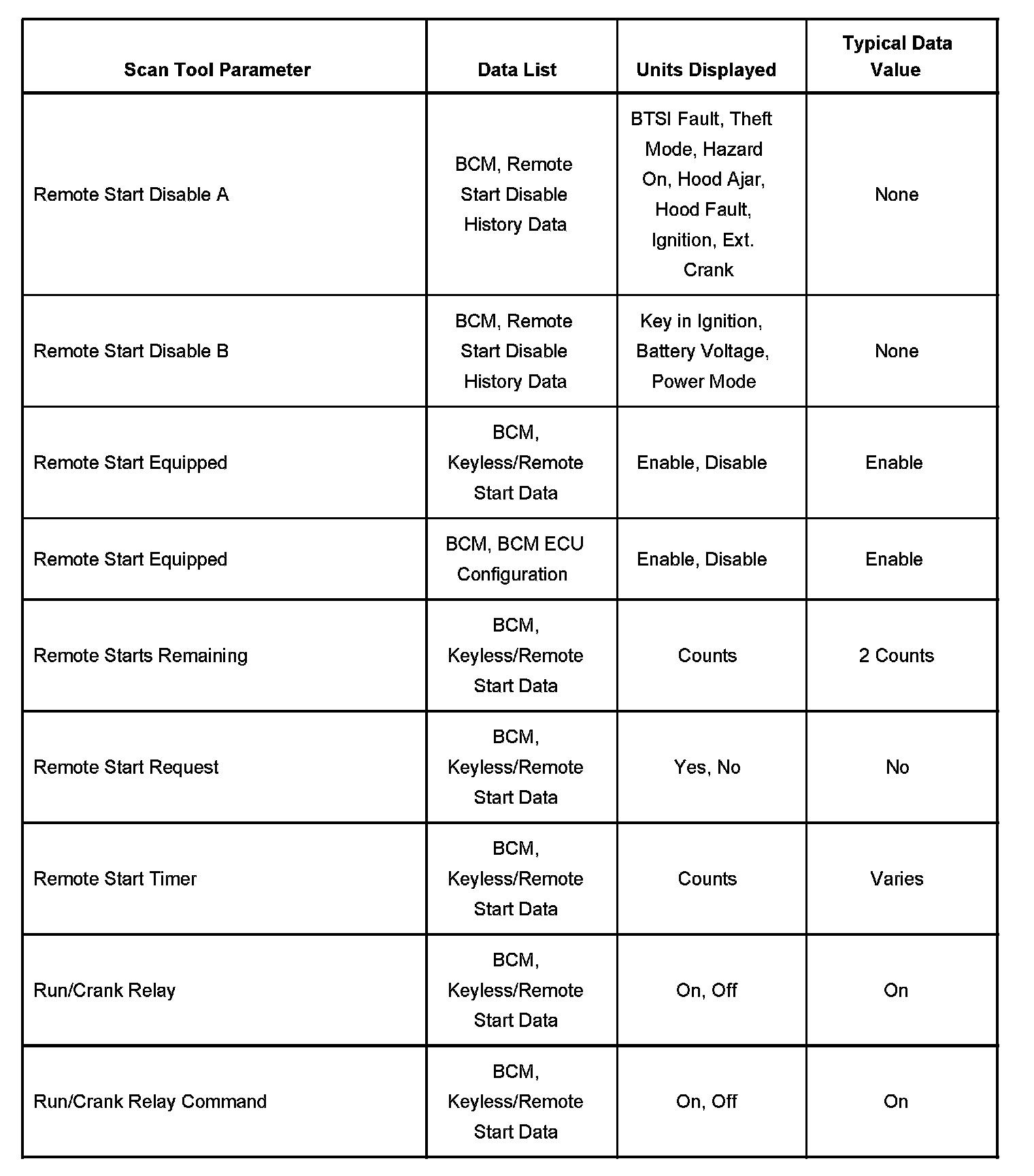

Body Control Module (BCM) Part 2:
