Home >> Chevrolet >> 2004 >> Malibu L4-2.2L VIN F >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Backfire

Backfire

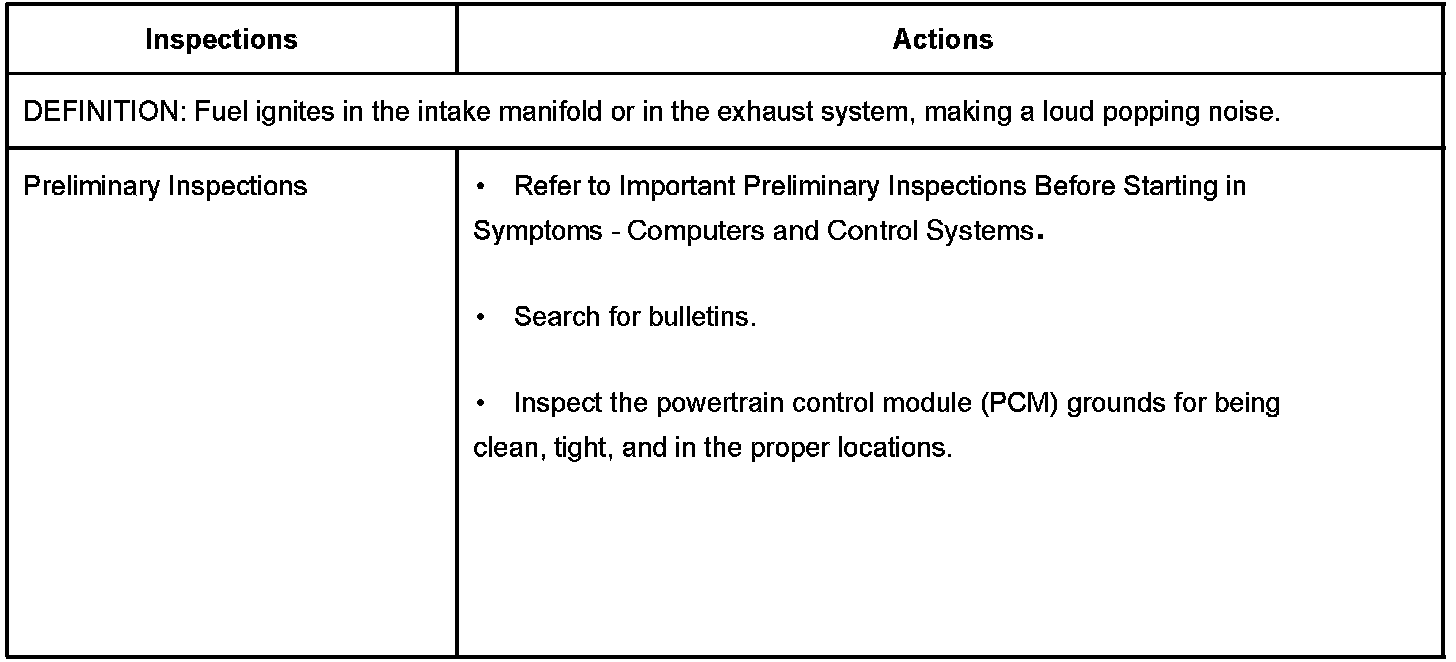

Backfire Part 1:

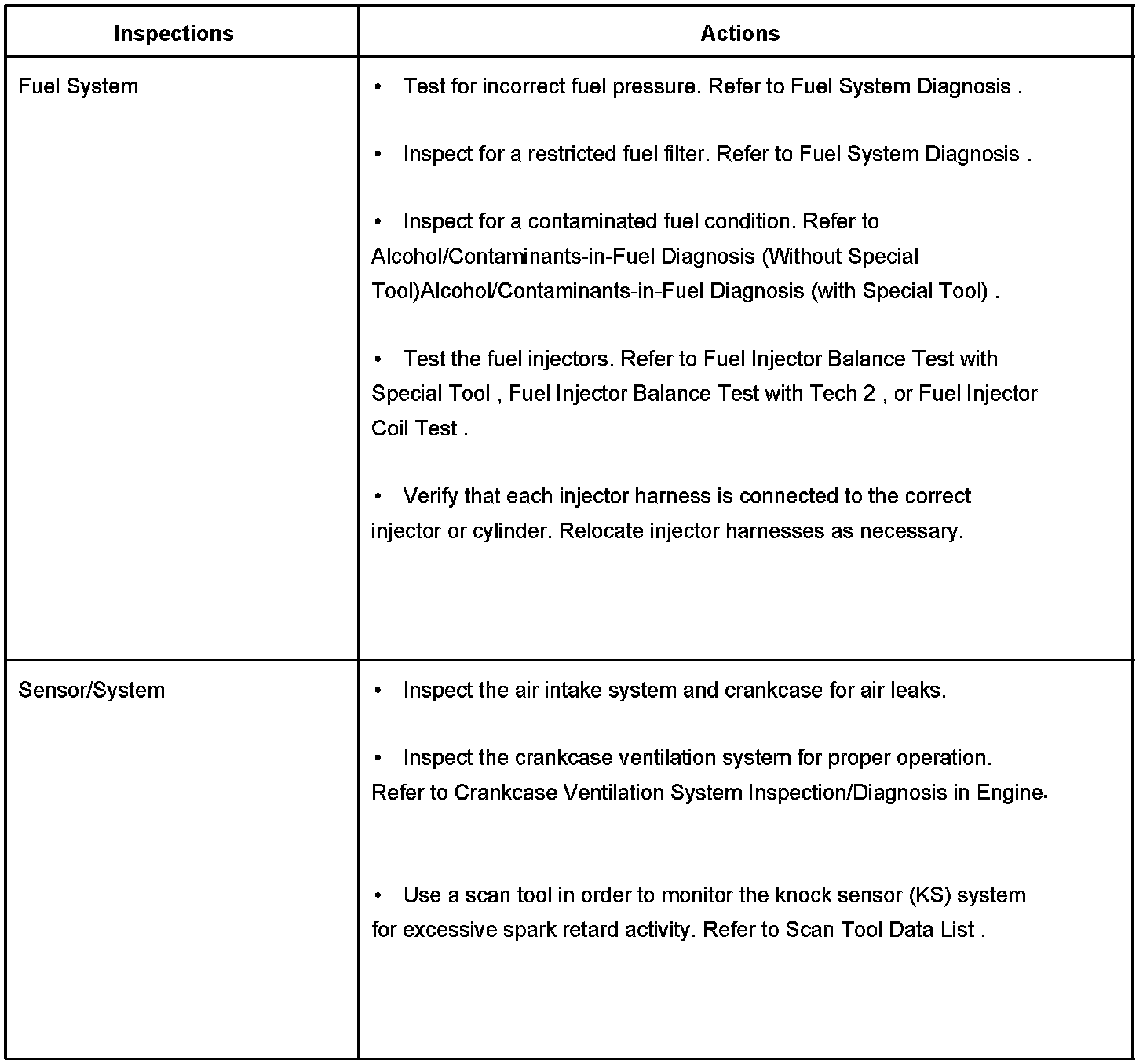

Backfire Part 2:

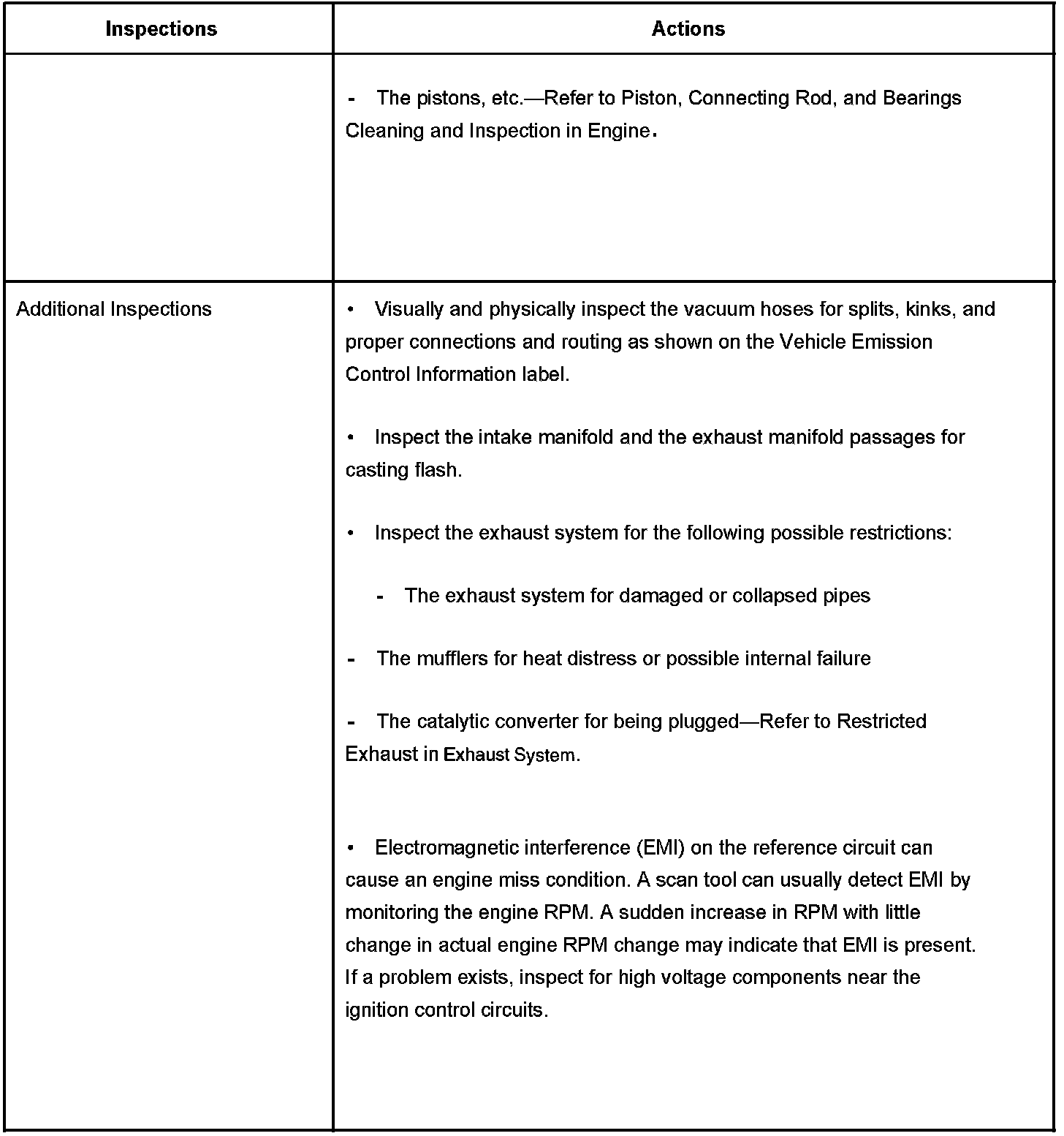

Backfire Part 3:

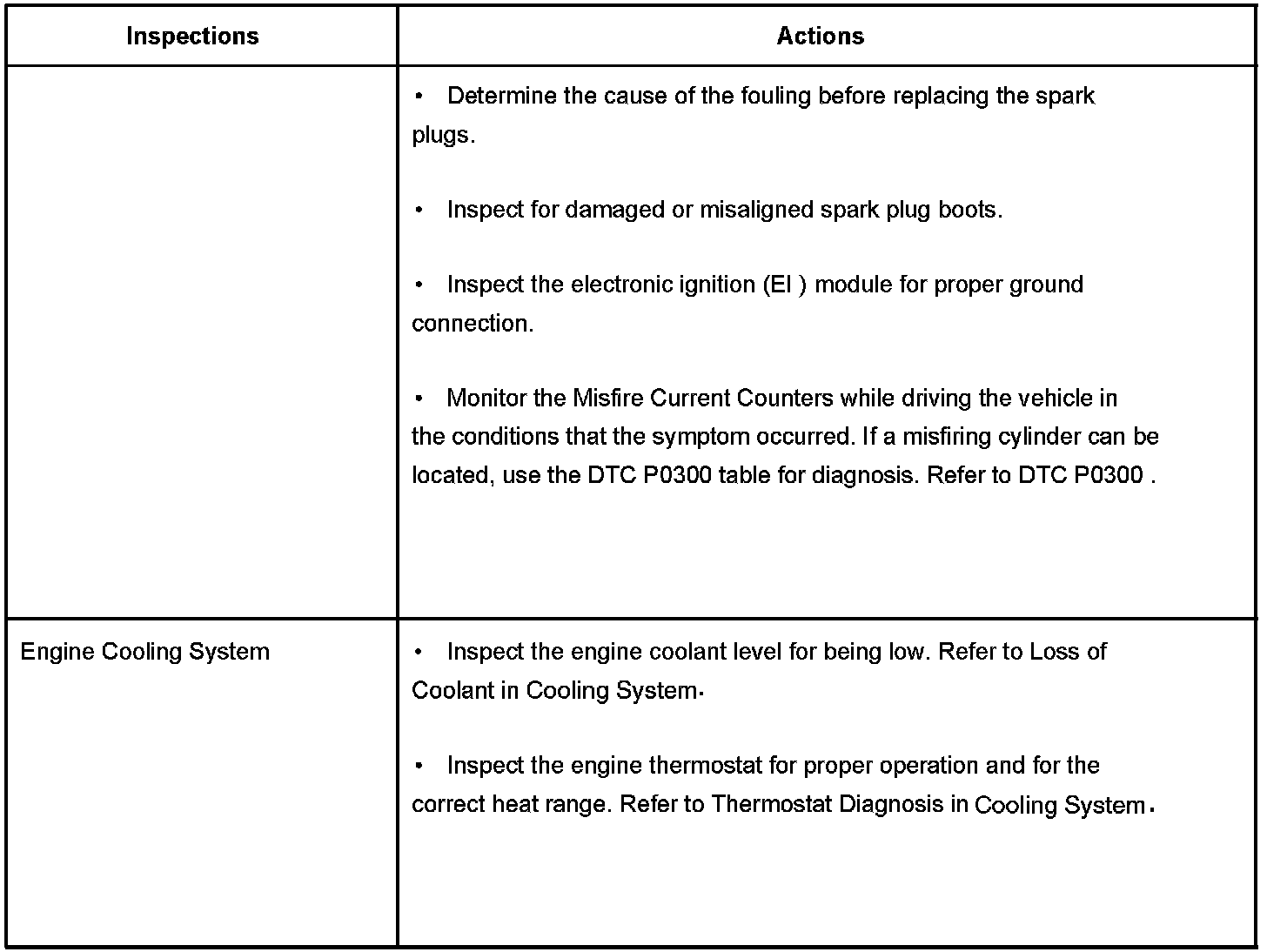

Backfire Part 4:

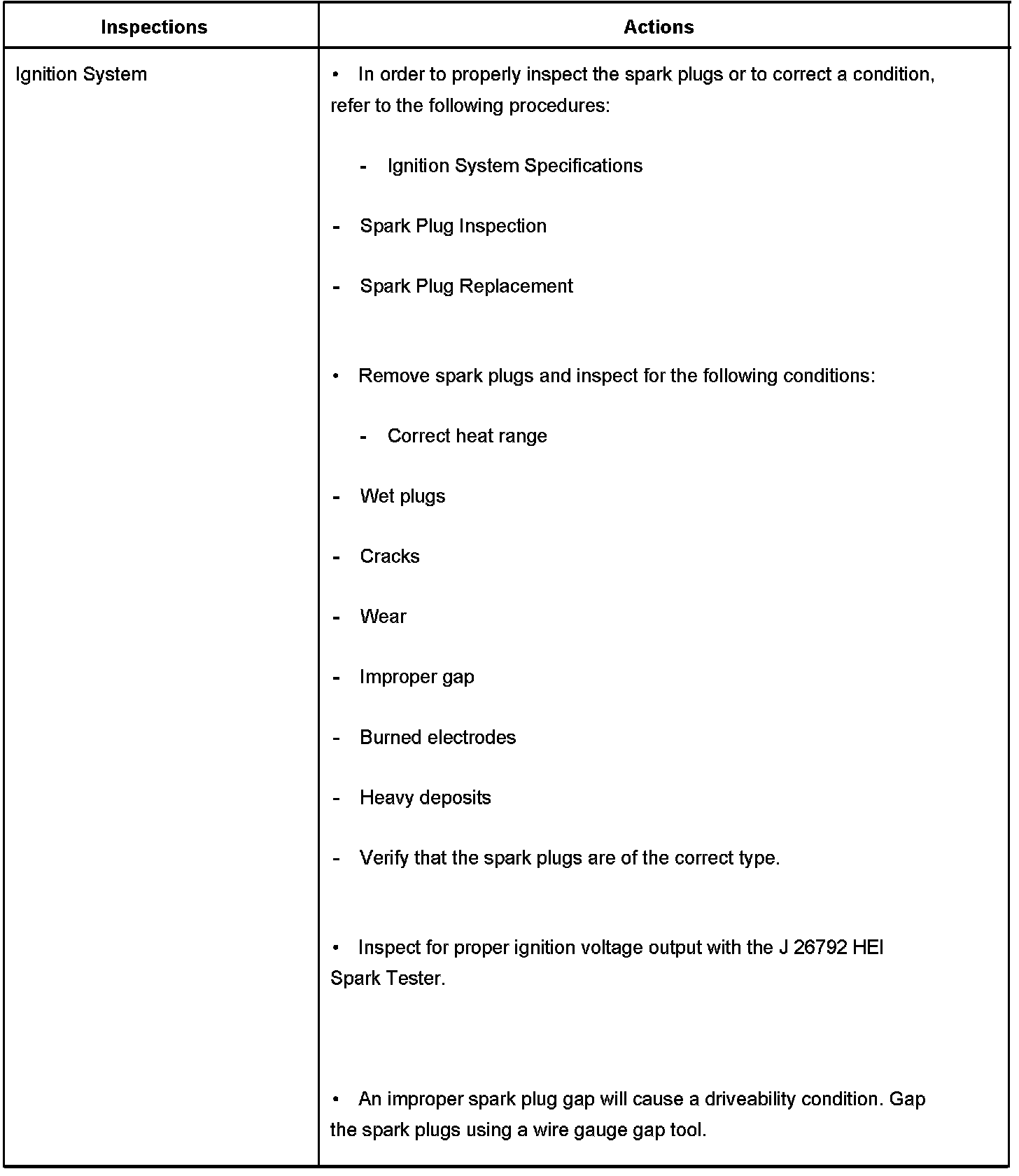

Backfire Part 5:

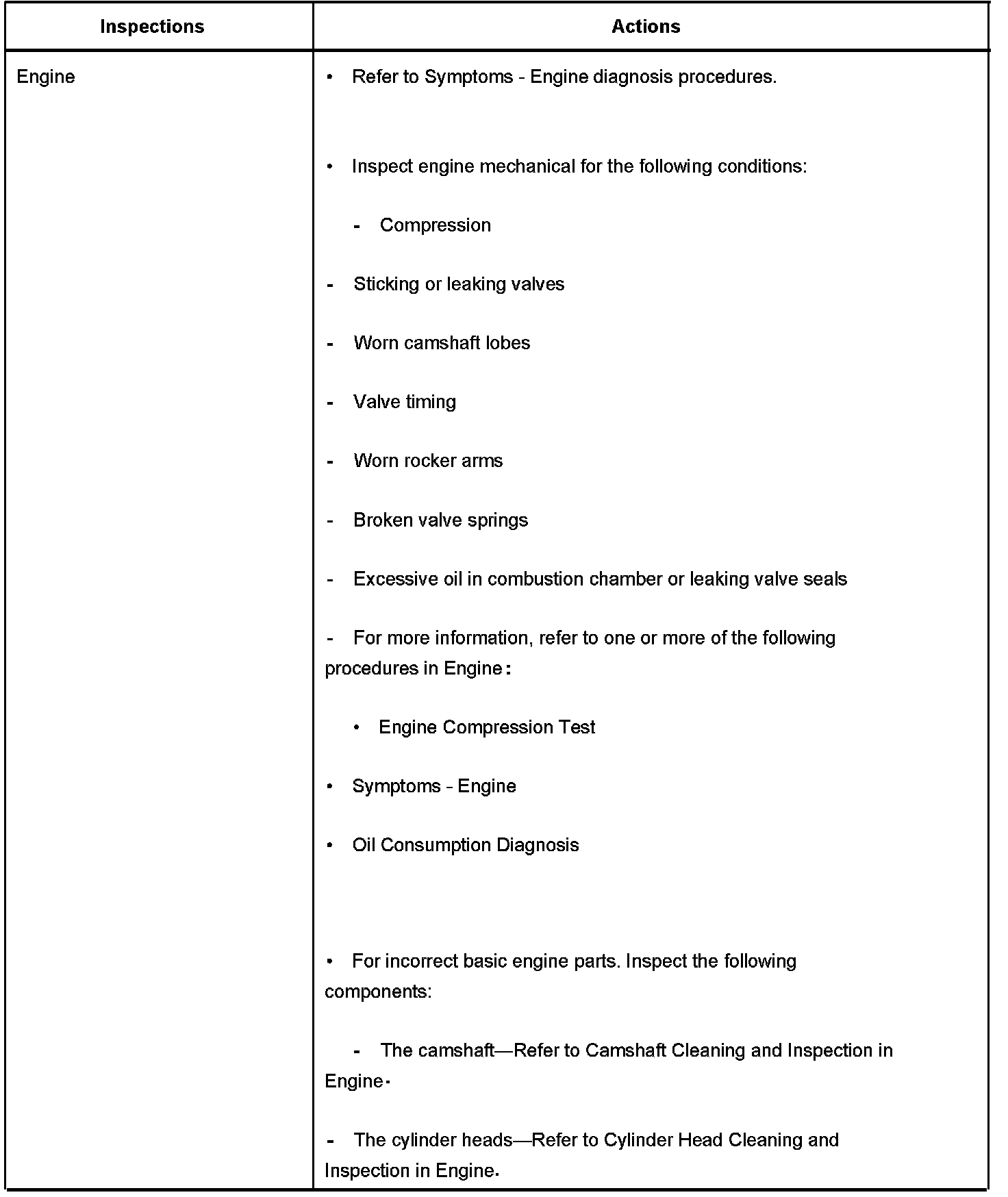

Backfire Part 6:
