Trunk / Liftgate Switch

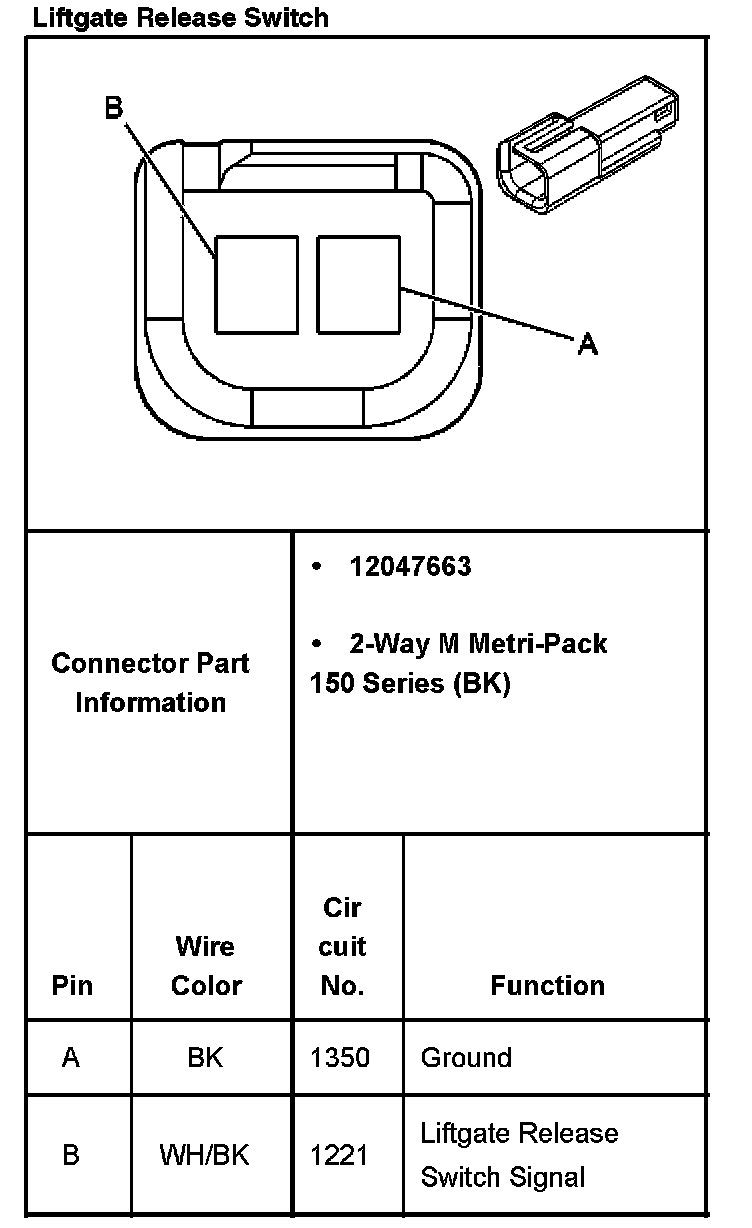

Liftgate Release Switch:

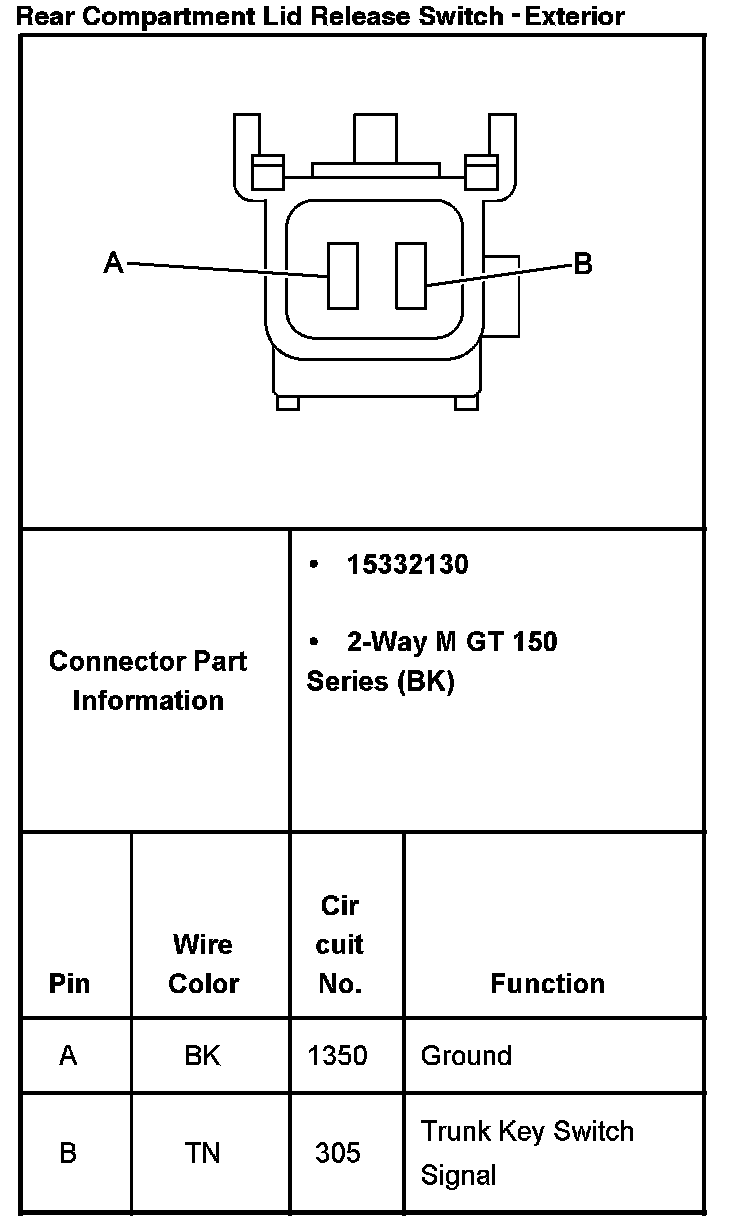

Rear Compartment Lid Release Switch - Exterior:

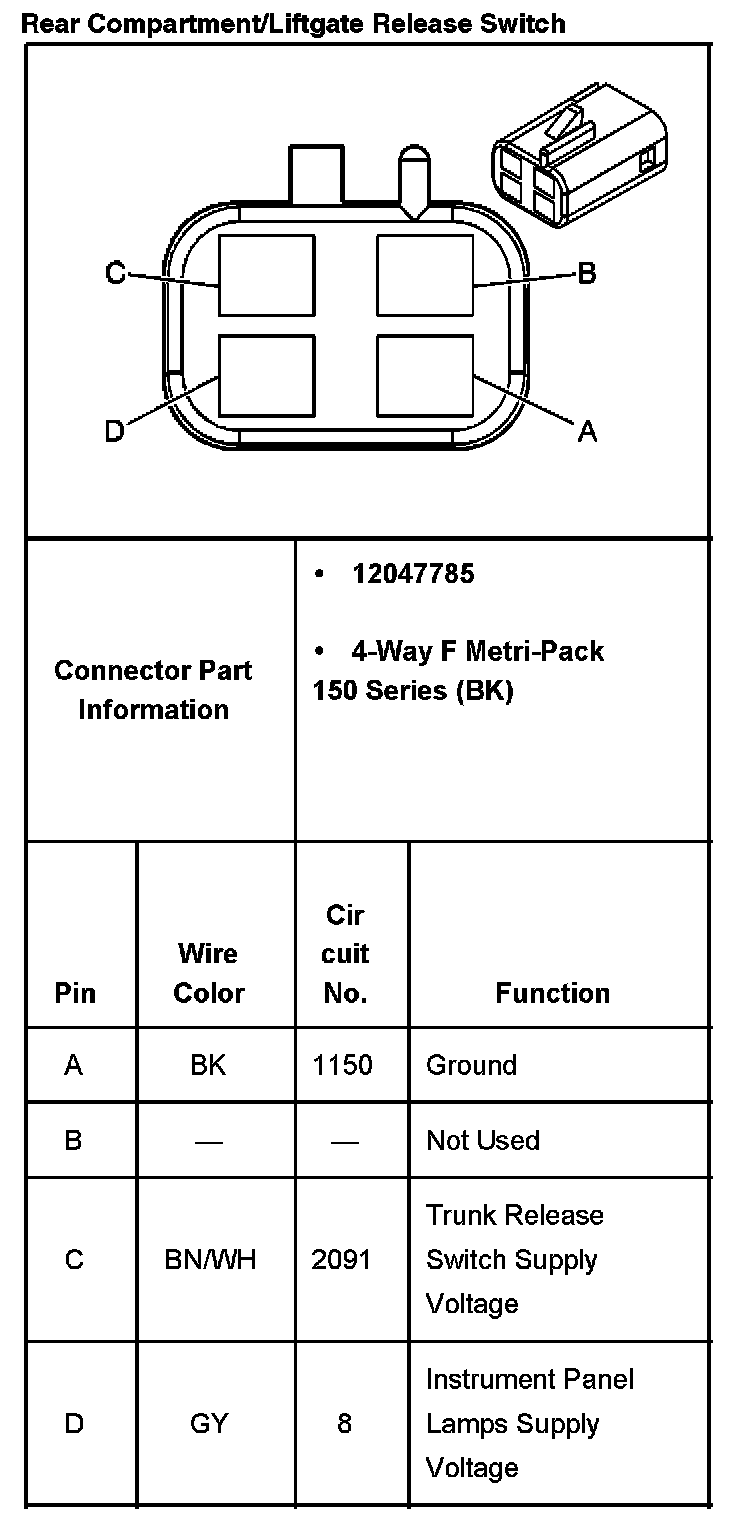

Rear Compartment/Liftgate Release Switch:
