Trunk / Liftgate Latch
Trunk / Liftgate Latch

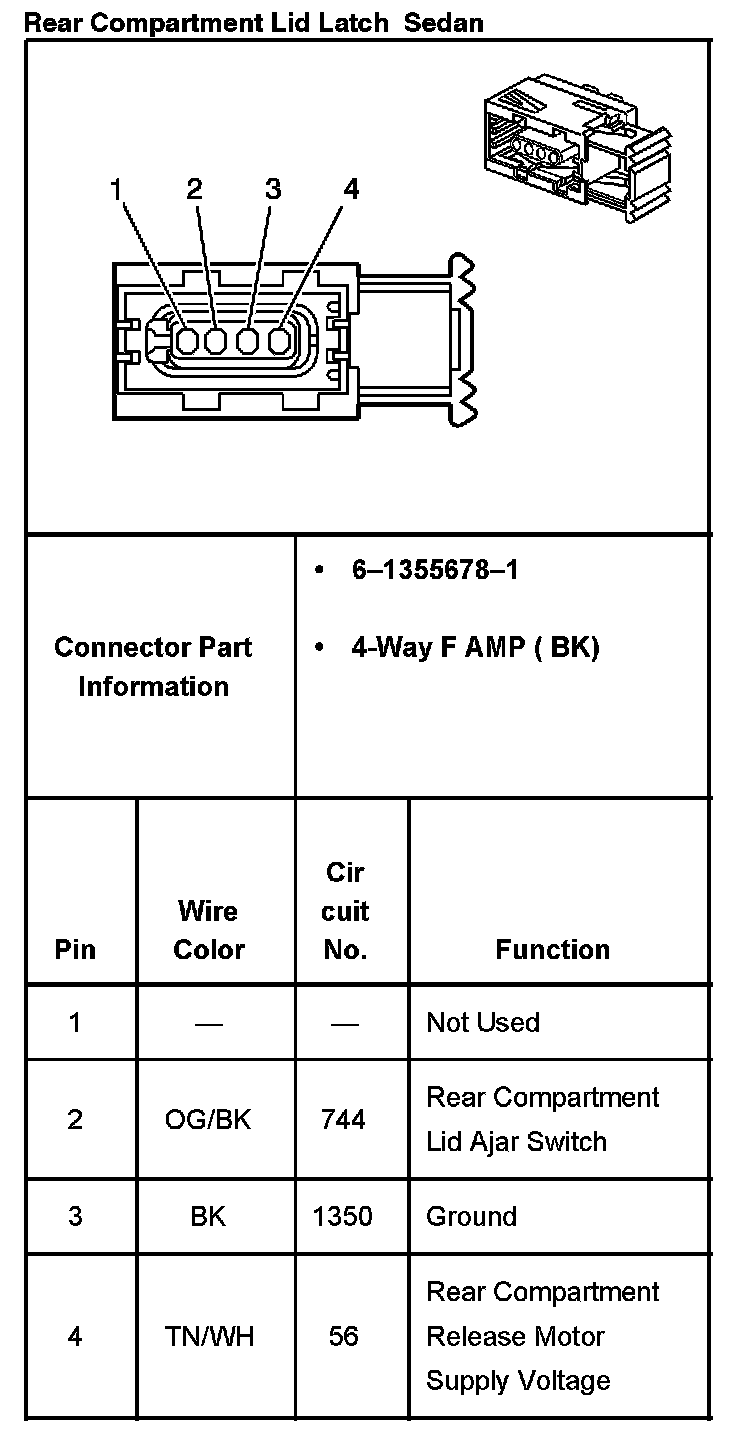

Rear Compartment Lid Latch - Sedan:
Rear Compartment Lid Latch - Extended Sedan:
