Pedal Positioning Sensor

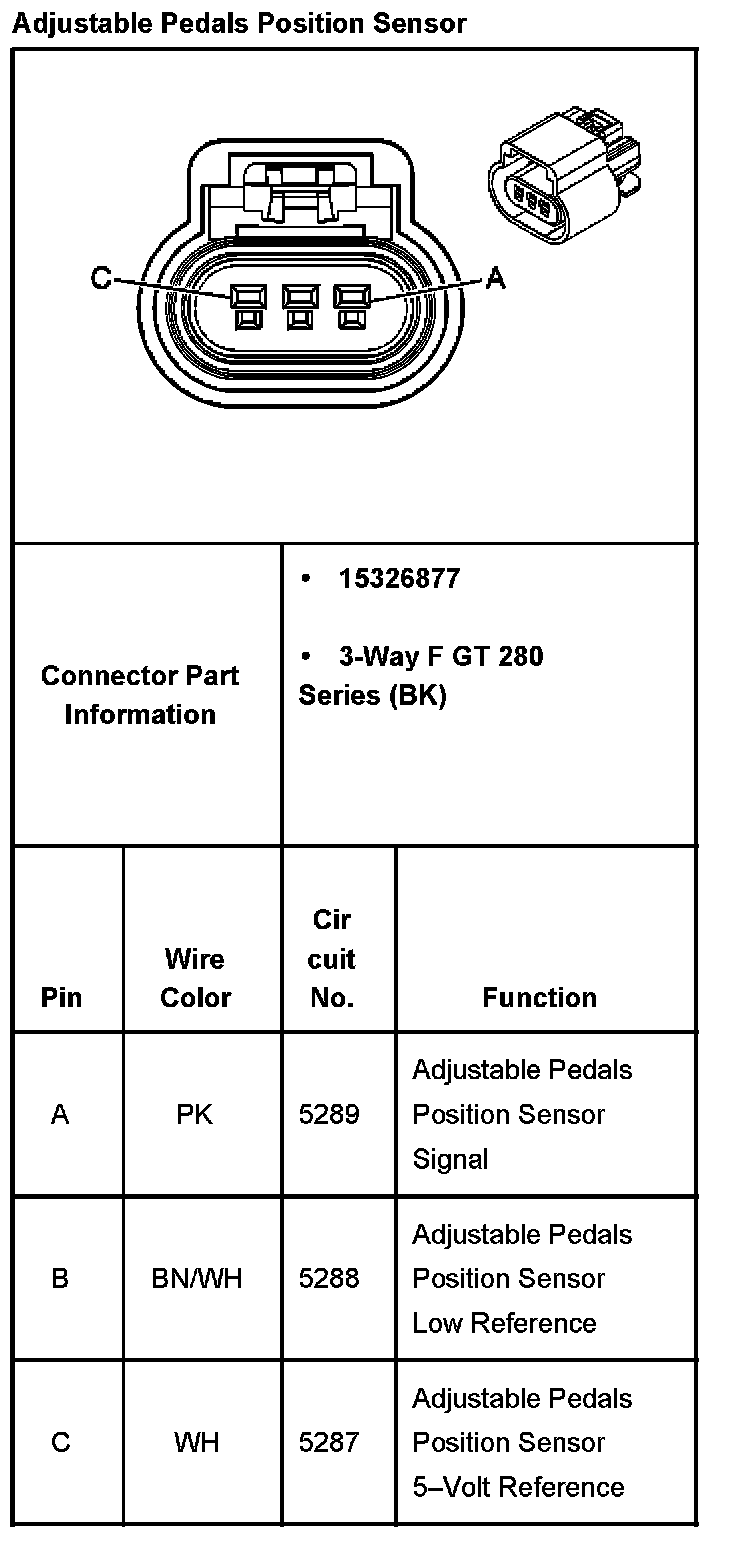

Adjustable Pedals Position Sensor:

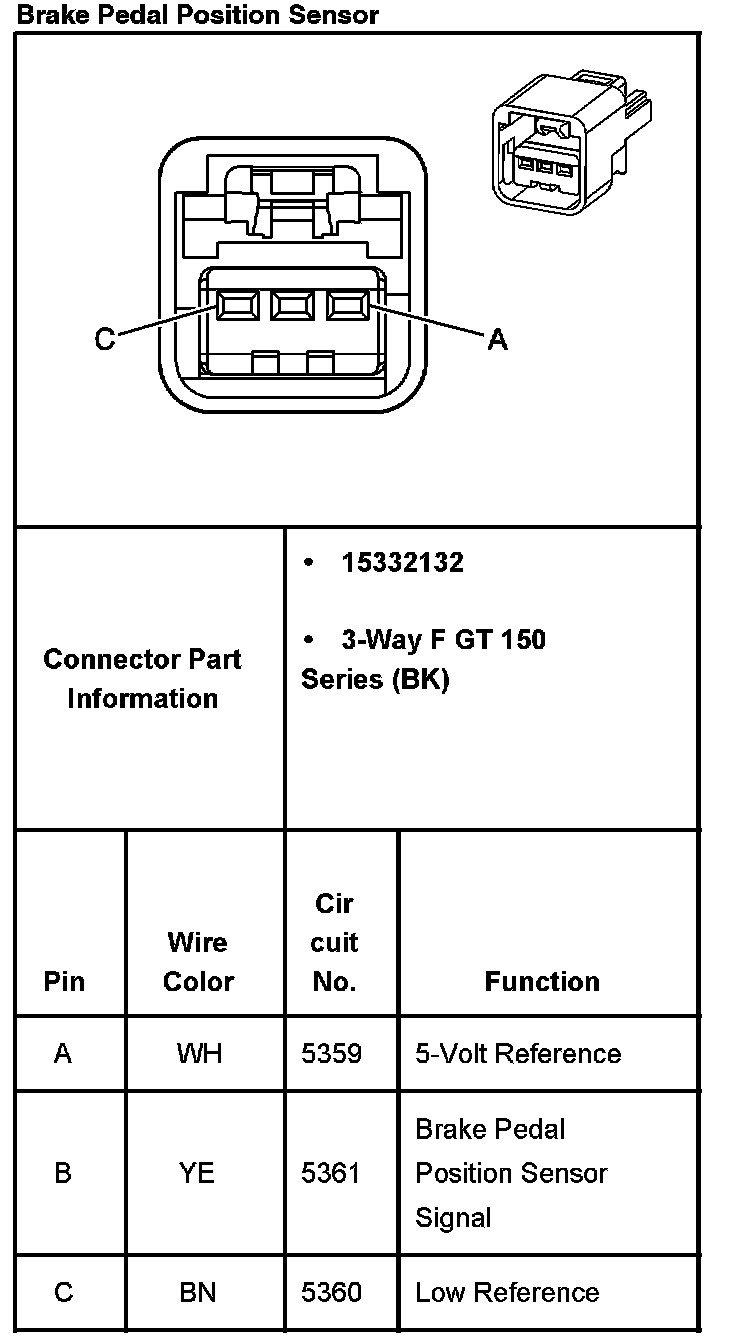

Brake Pedal Position Sensor:

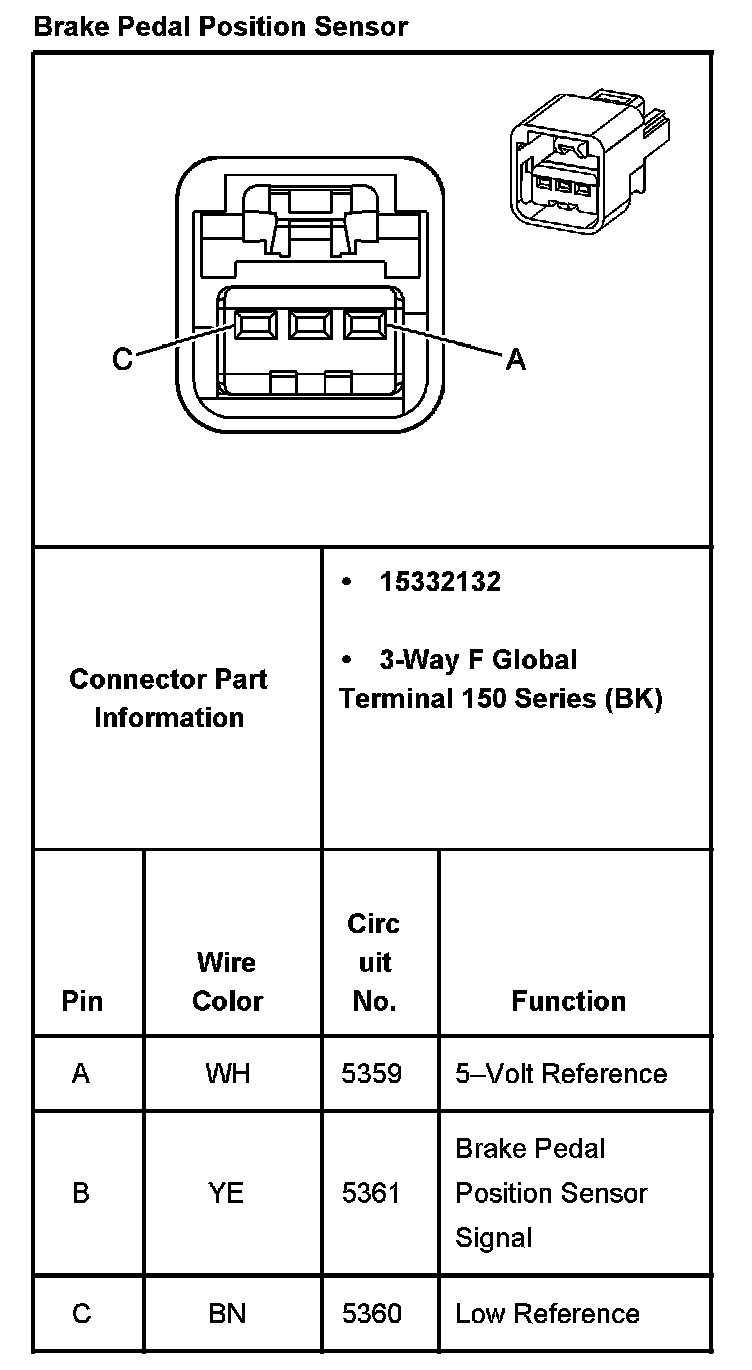

Brake Pedal Position Sensor:
