Fuse Block - Rear C3

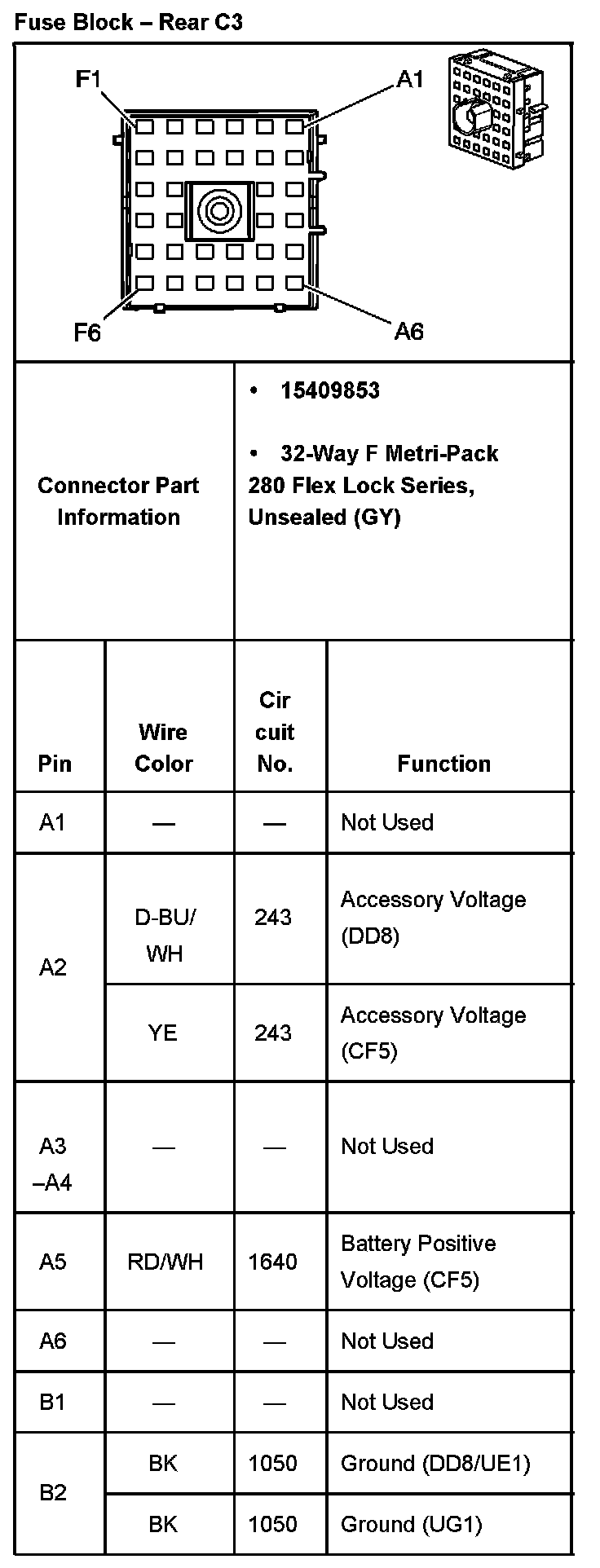

Fuse Block - Rear C3 Part 1:

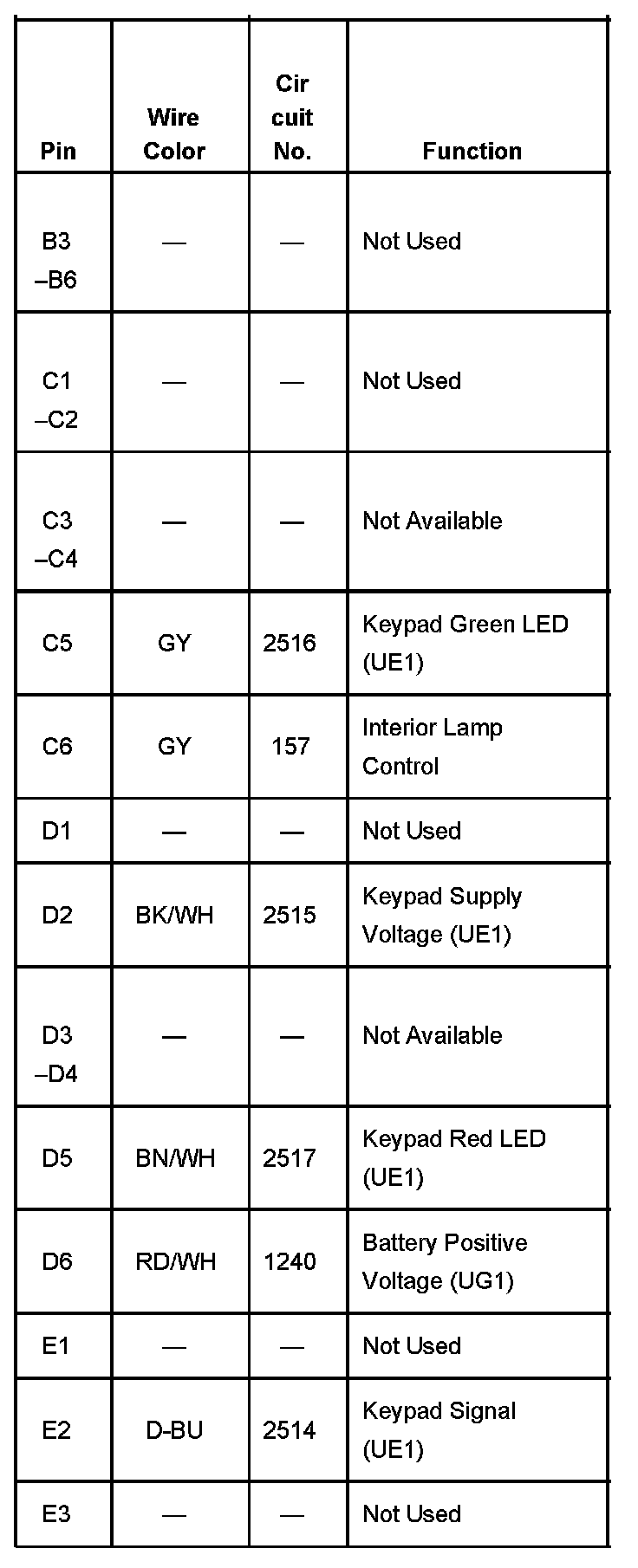

Fuse Block - Rear C3 Part 2:

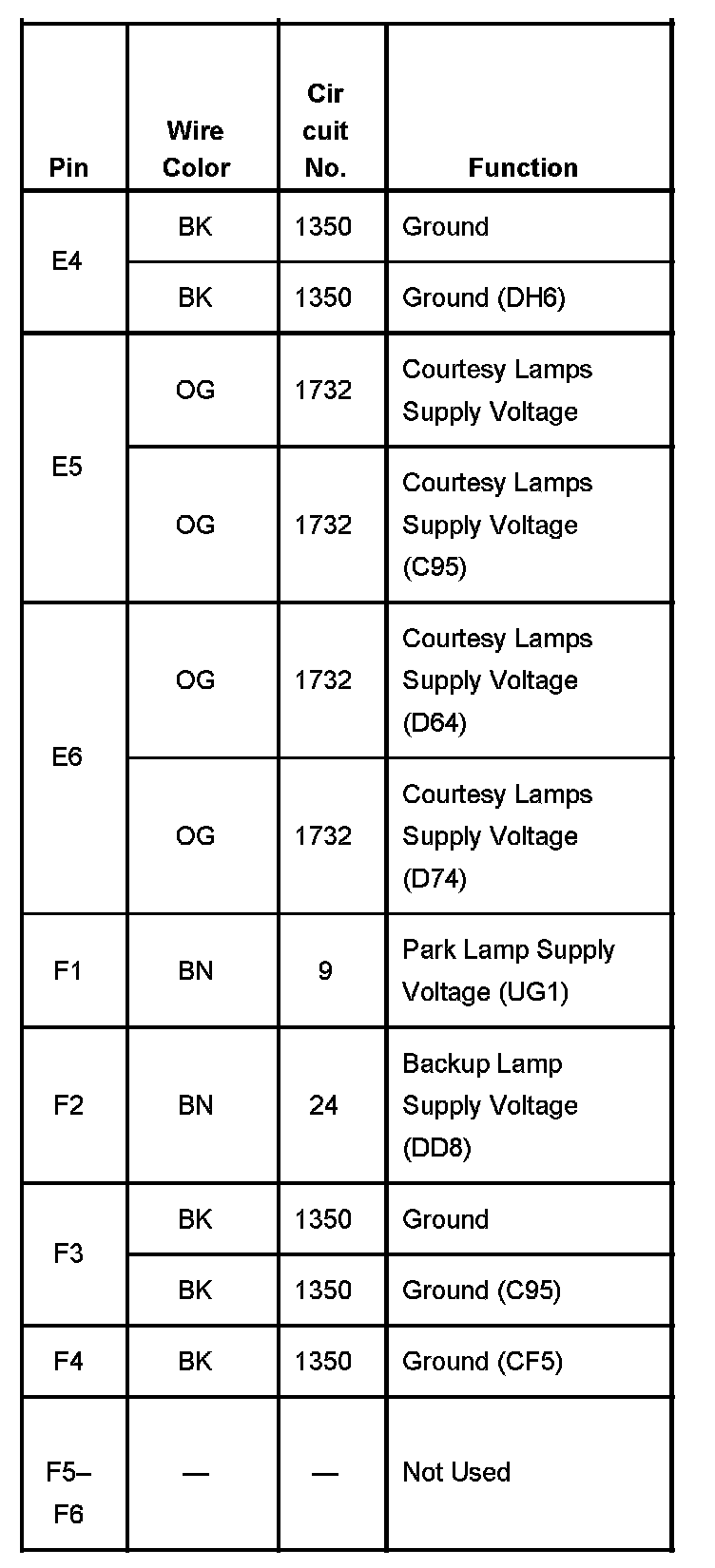

Fuse Block - Rear C3 Part 3:
