DVD Player

DVD Player C1 Part 1:

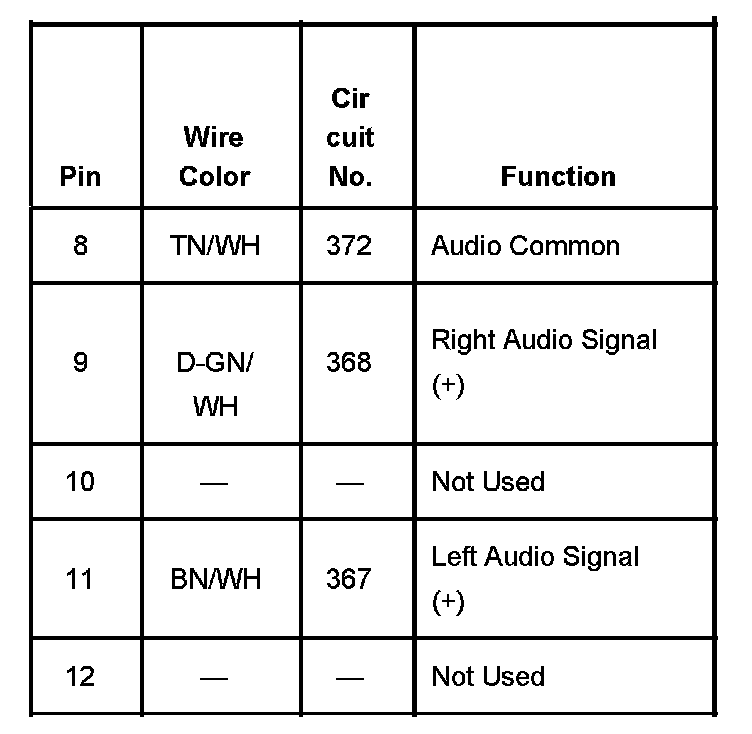

DVD Player C1 Part 2:

DVD Player C2 Part 1:

DVD Player C1 Part 2:

DVD Player C3:
