(Sedan)

REMOTE CONTROL DOOR LOCK RECEIVER REPLACEMENT (SEDAN)

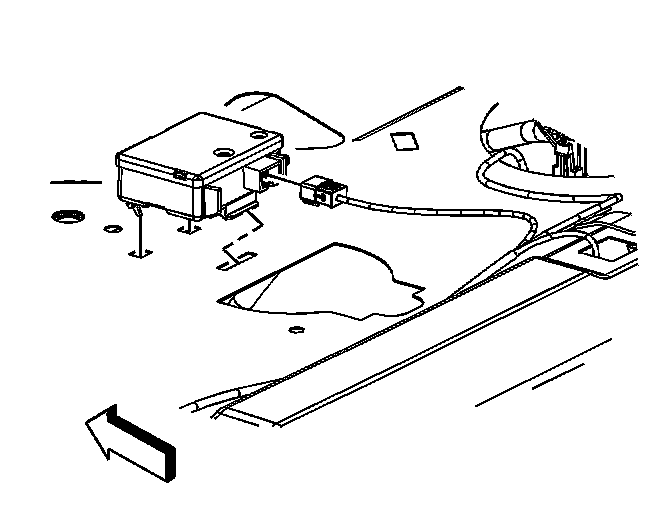

REMOVAL PROCEDURE
1. Remove the rear window shelf panel.
2. Disconnect the electrical connectors from the receiver.




3. Remove the receiver from the vehicle.

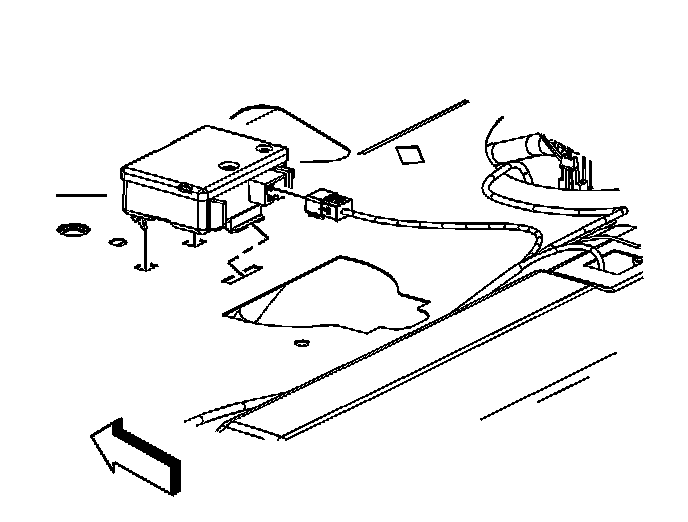

INSTALLATION PROCEDURE




1. Install the receiver to the vehicle.
2. Connect the electrical connectors to the receiver.
3. Install the rear window shelf panel.
