Alarm Module: Service and Repair

THEFT DETERRENT CONTROL MODULE REPLACEMENT

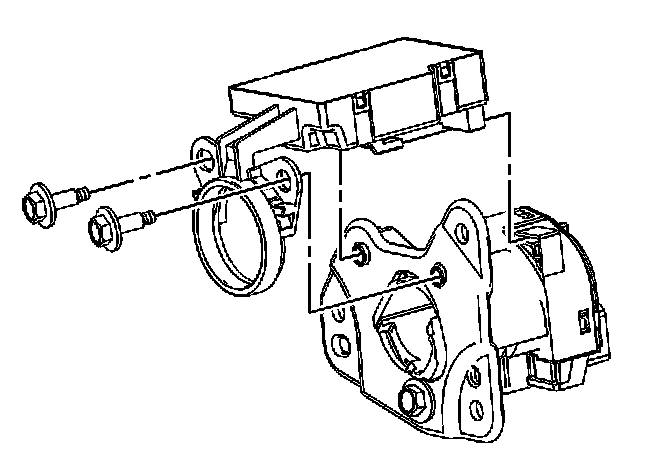

REMOVAL PROCEDURE
1. Remove the ignition switch.
2. Remove the theft deterrent control module screws.




3. Remove the theft deterrent control module.

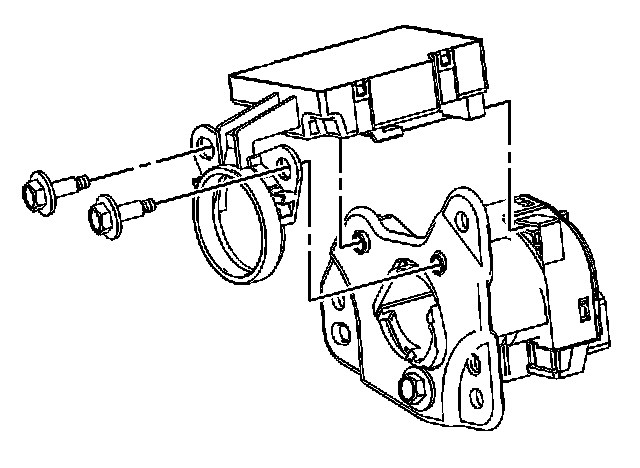

INSTALLATION PROCEDURE




1. Install the theft deterrent control module.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Tighten the theft deterrent control module screws.

Tighten
Tighten the screws to 5 N.m (44 lb in).

3. Install the ignition switch.
4. Perform the vehicle theft deterrent system learn procedure. Refer to Programming Theft Deterrent System Components. Programming and Relearning
