Home >> Chevrolet >> 2004 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Output Controls

Scan Tool Output Controls

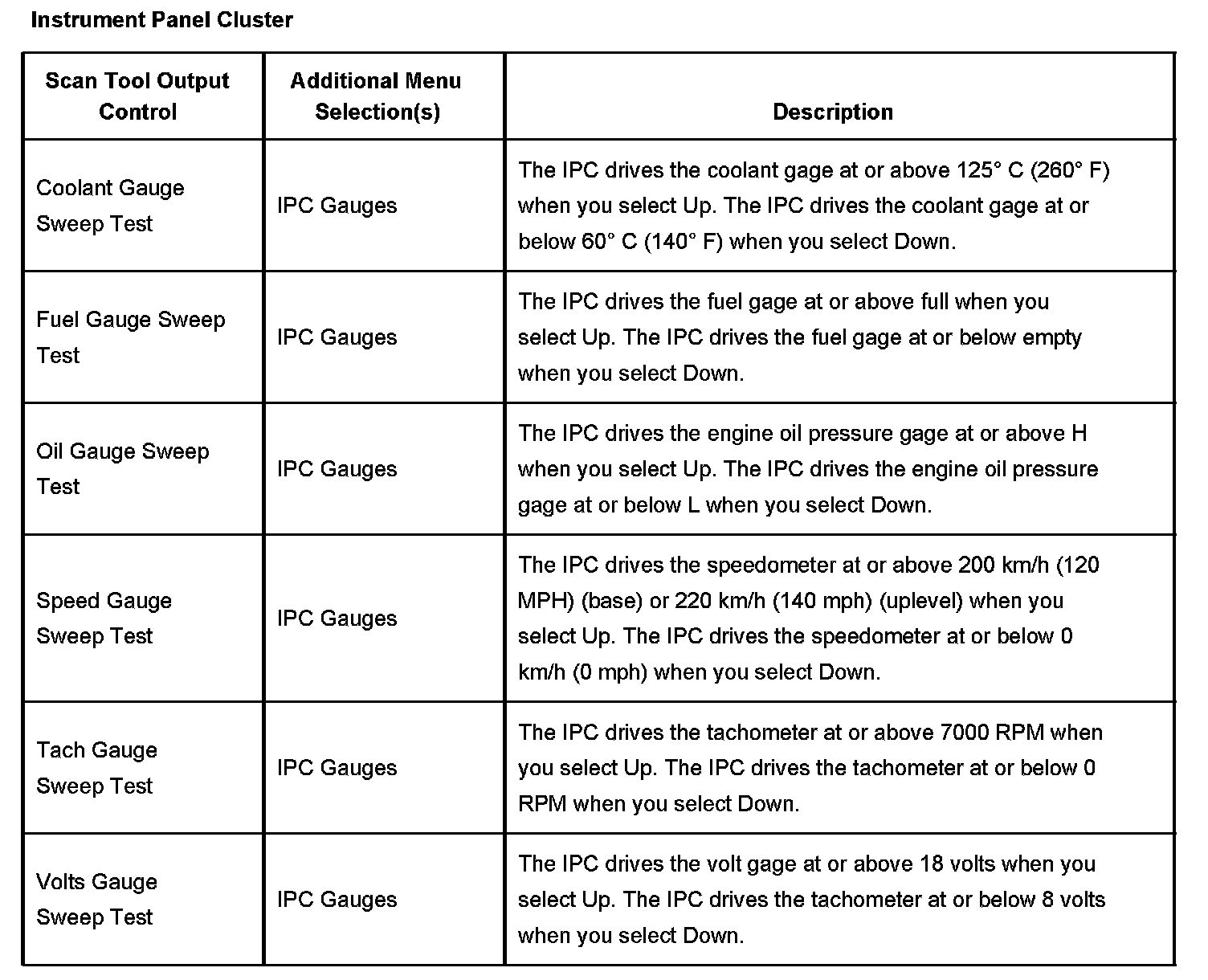

Instrument Panel Cluster Part 1:

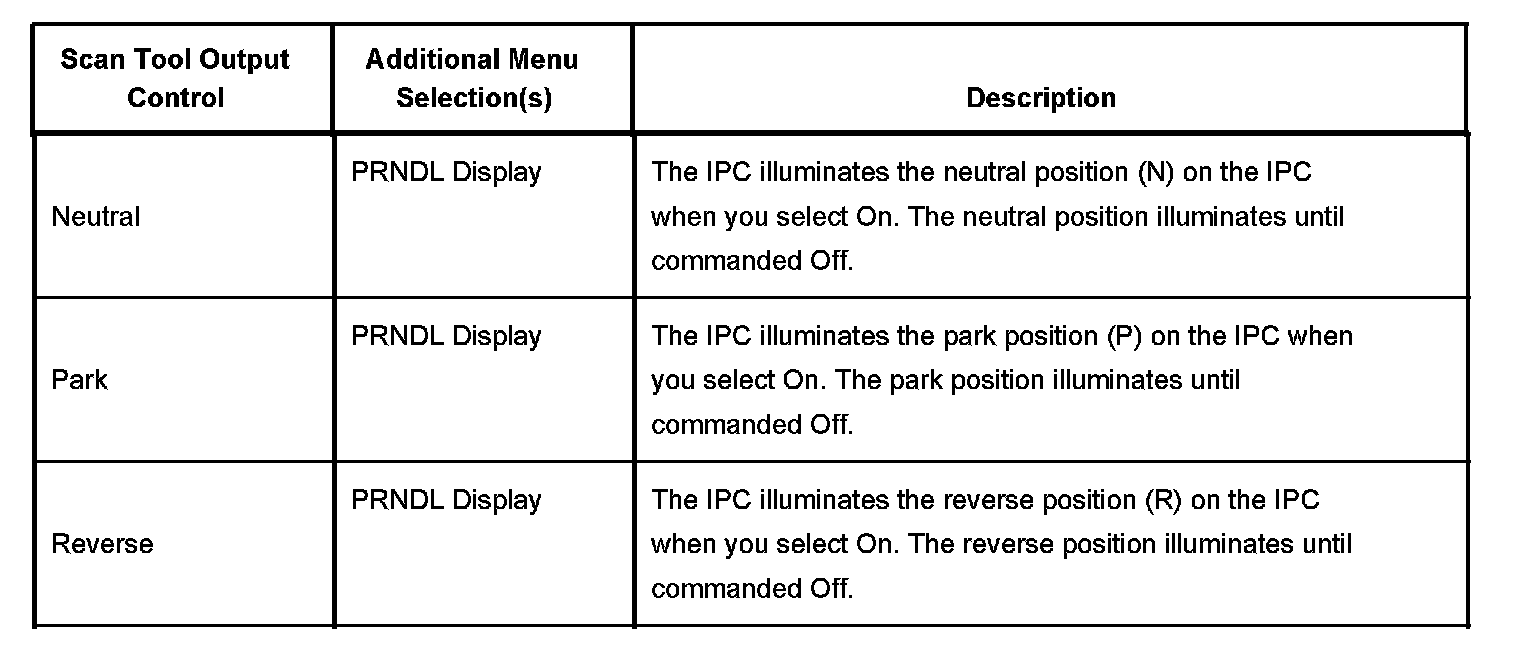

Instrument Panel Cluster Part 2:

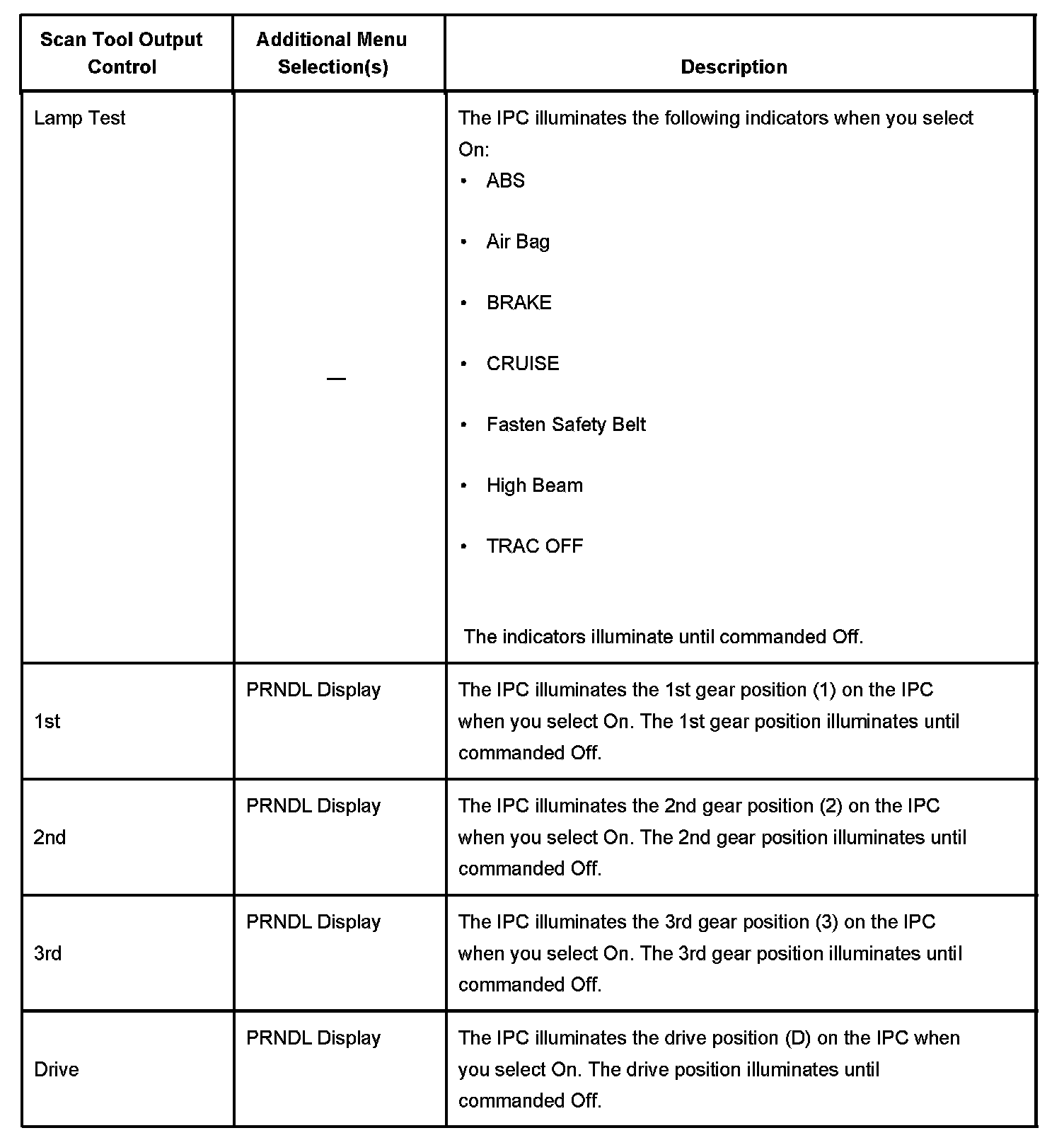

Instrument Panel Cluster Part 3:



Powertrain Control Module:
