Home >> Chevrolet >> 2004 >> Impala V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> 4T65-E Automatic Transmission >> Fastener Tightening Specifications

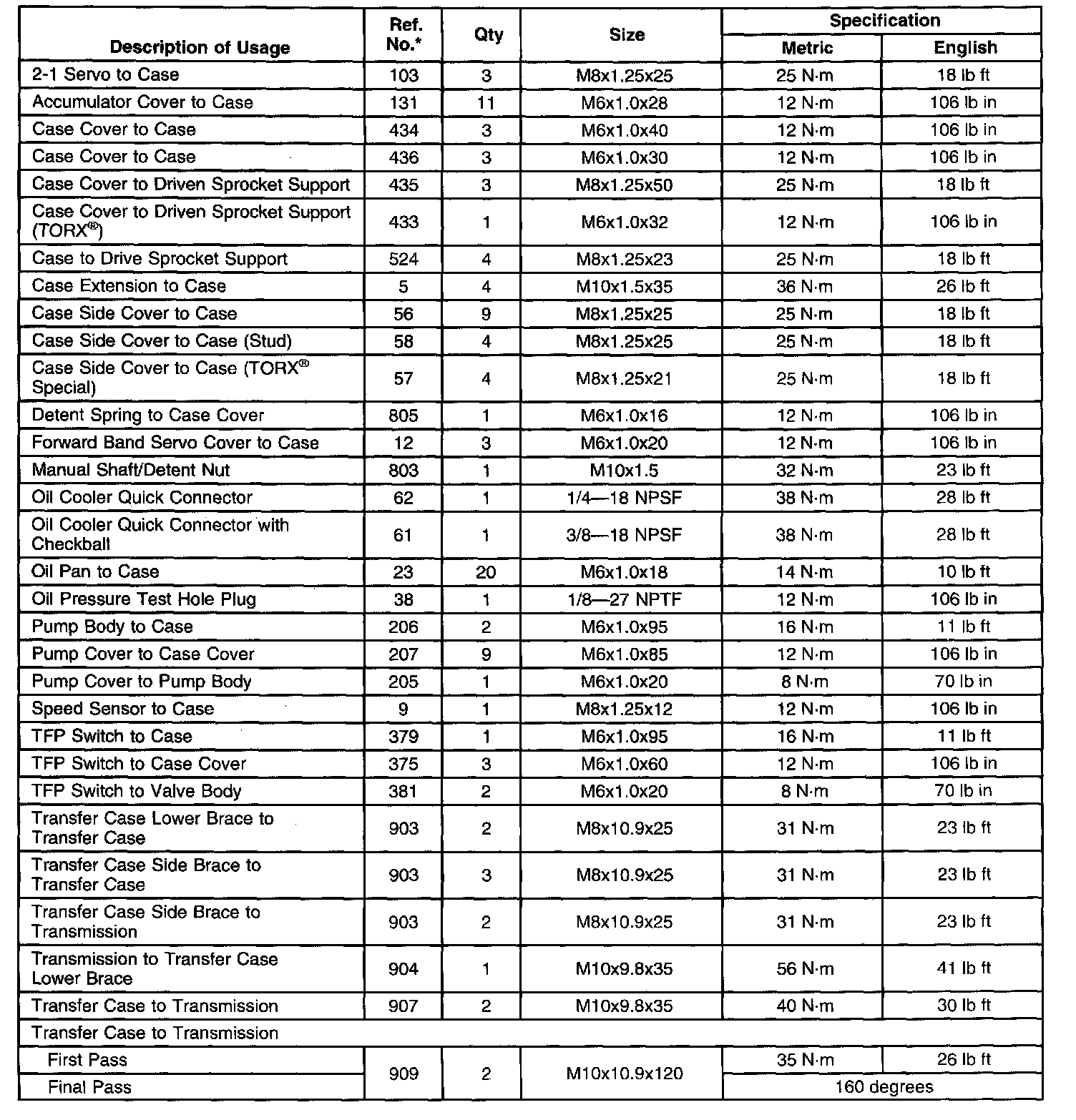

Fastener Tightening Specifications





Part 1 of 2





Part 2 of 2

Fastener Tightening Specifications
