Impala V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Locations
>>

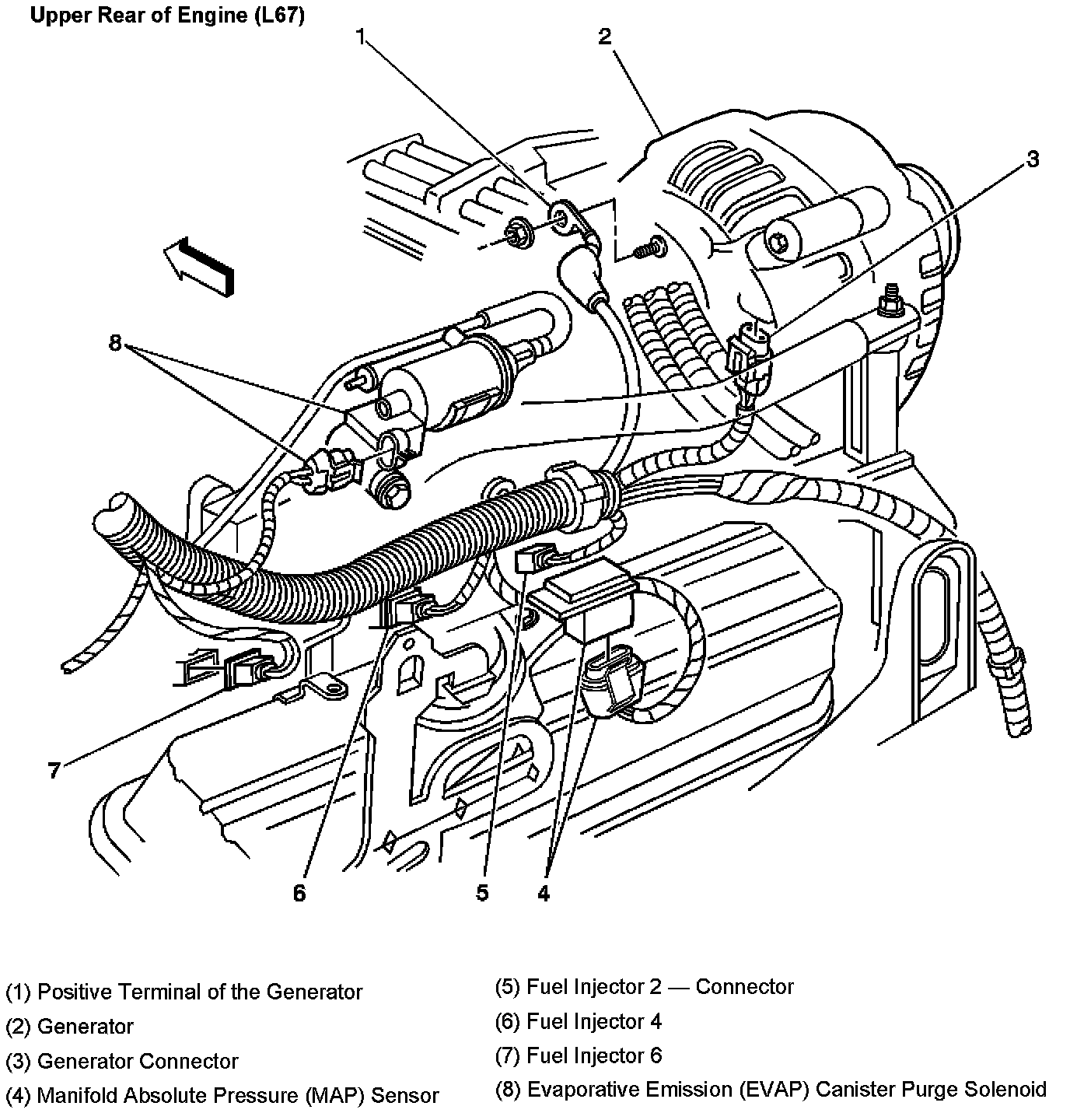

Upper Rear of Engine
Upper Rear of Engine
Upper Rear Of Engine:
