Master Connector List

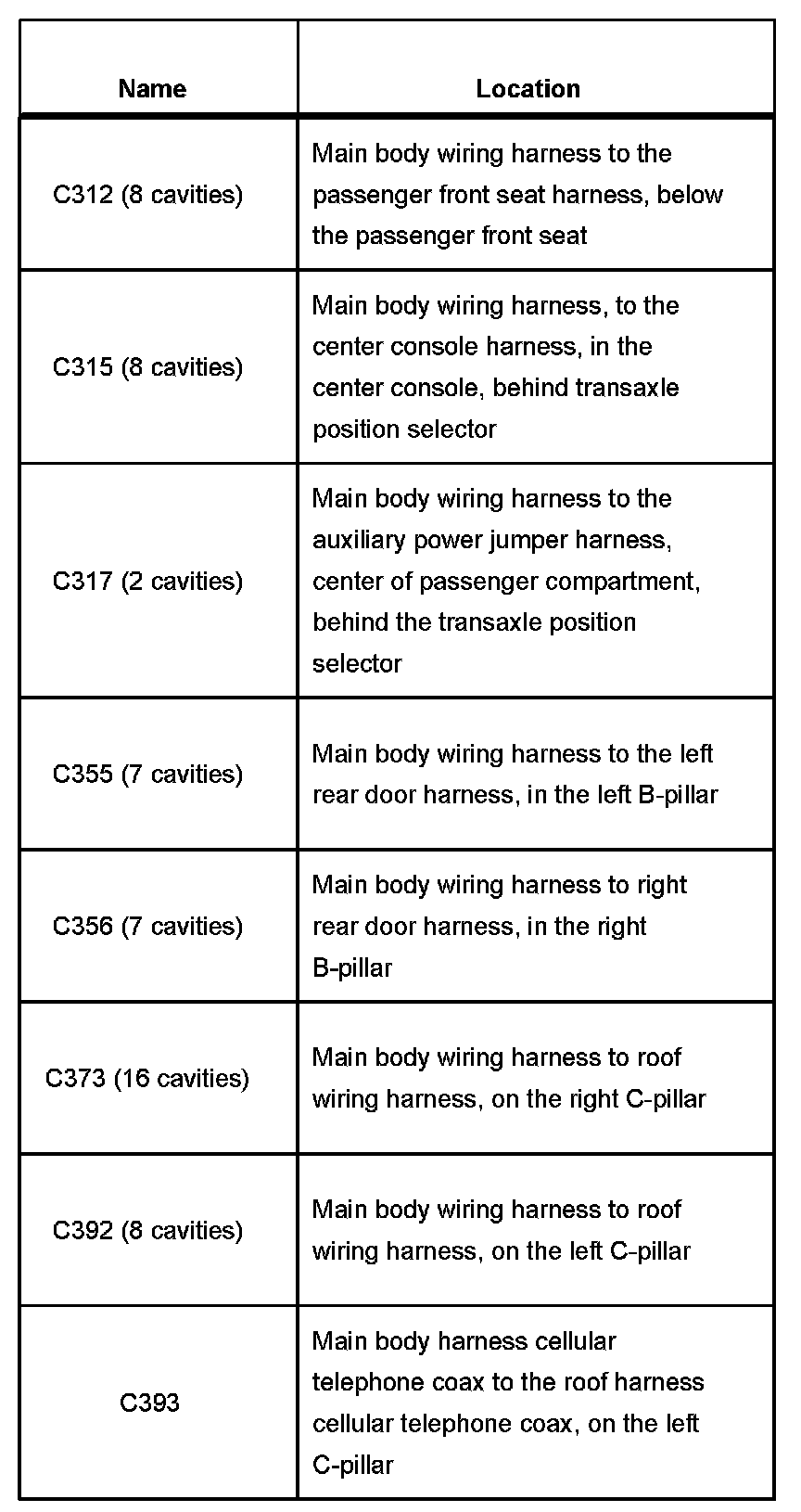

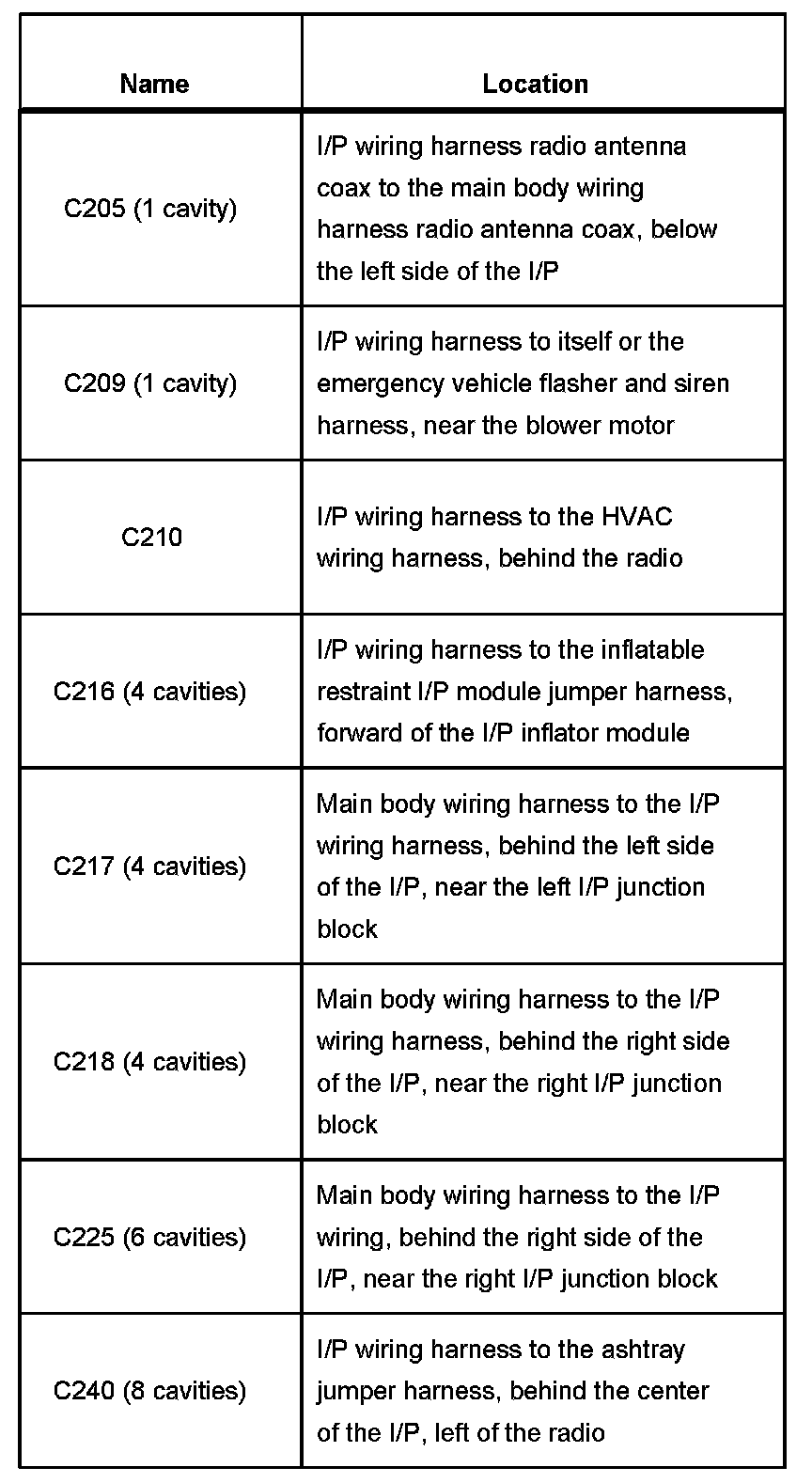

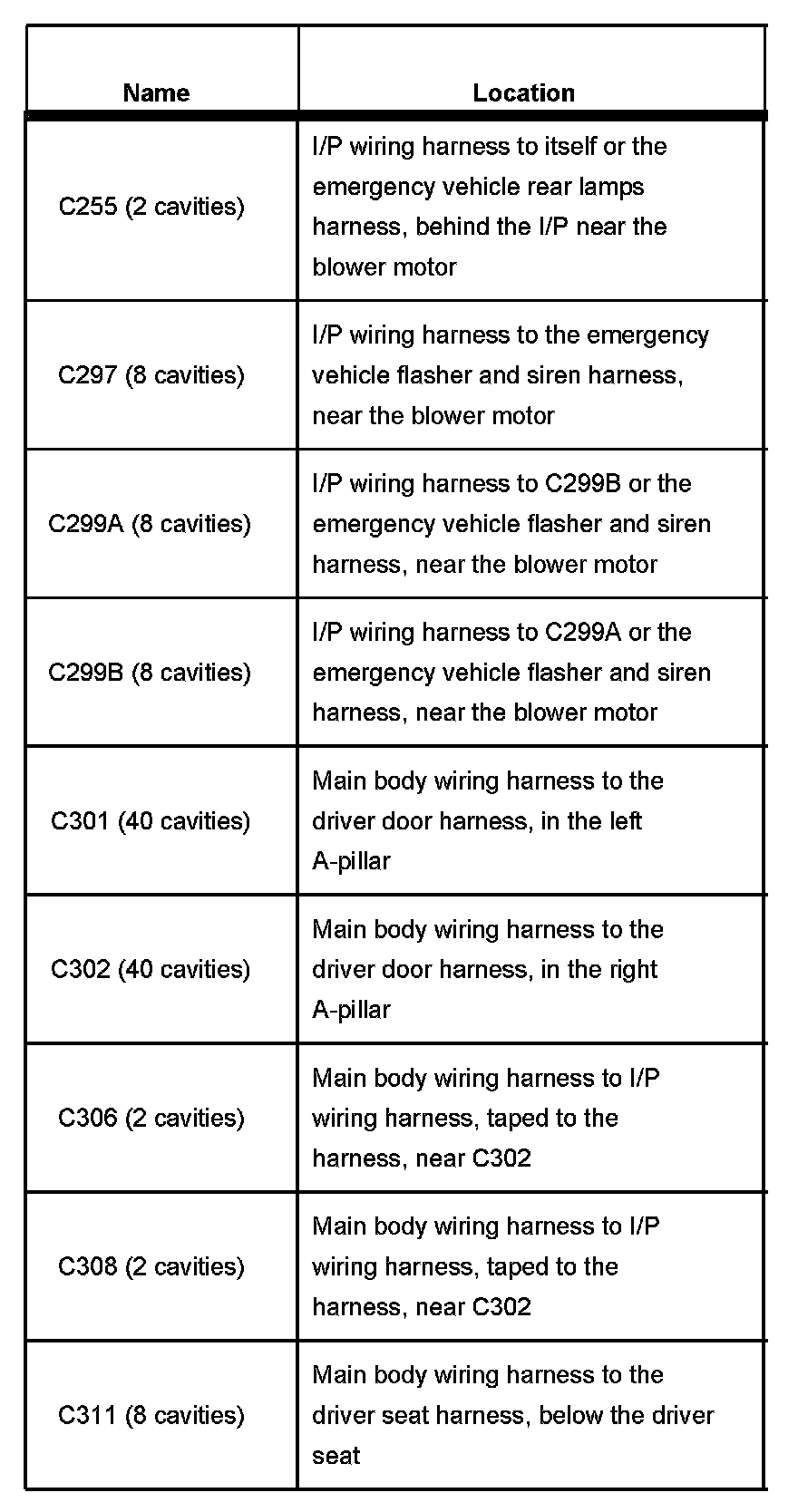

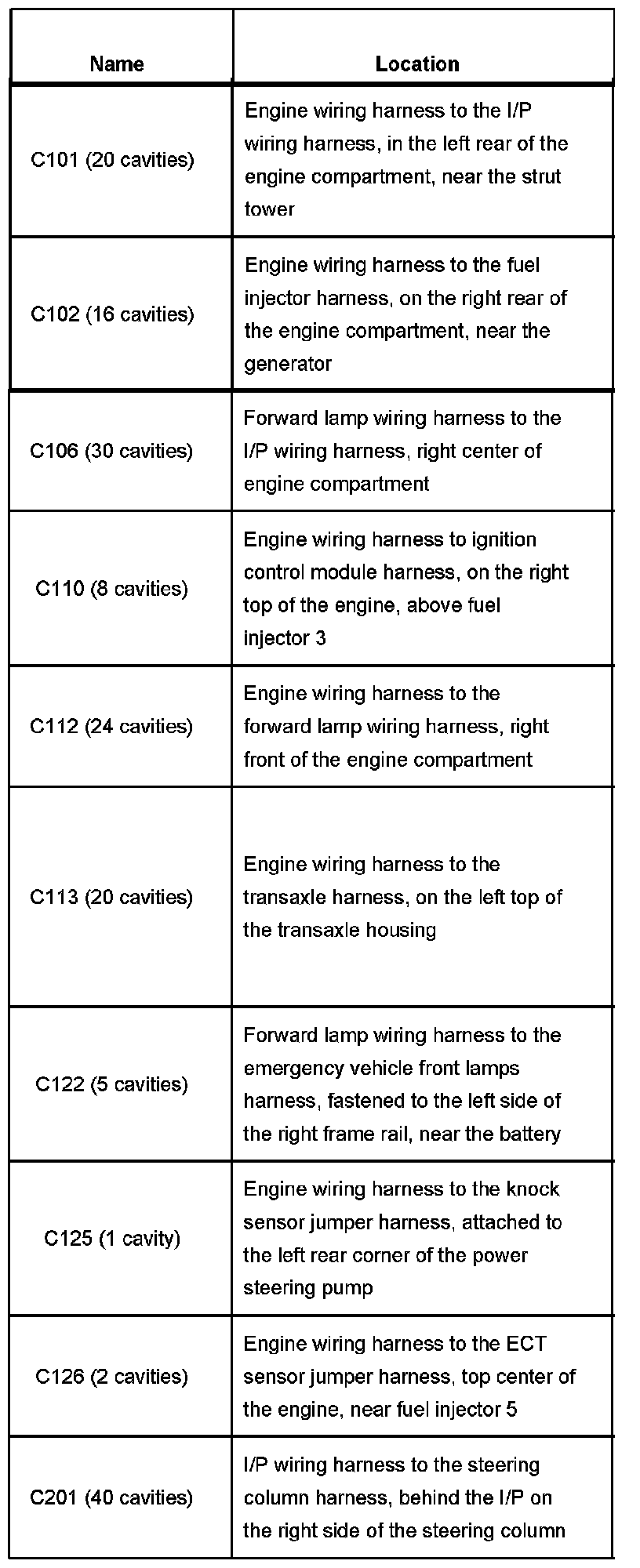

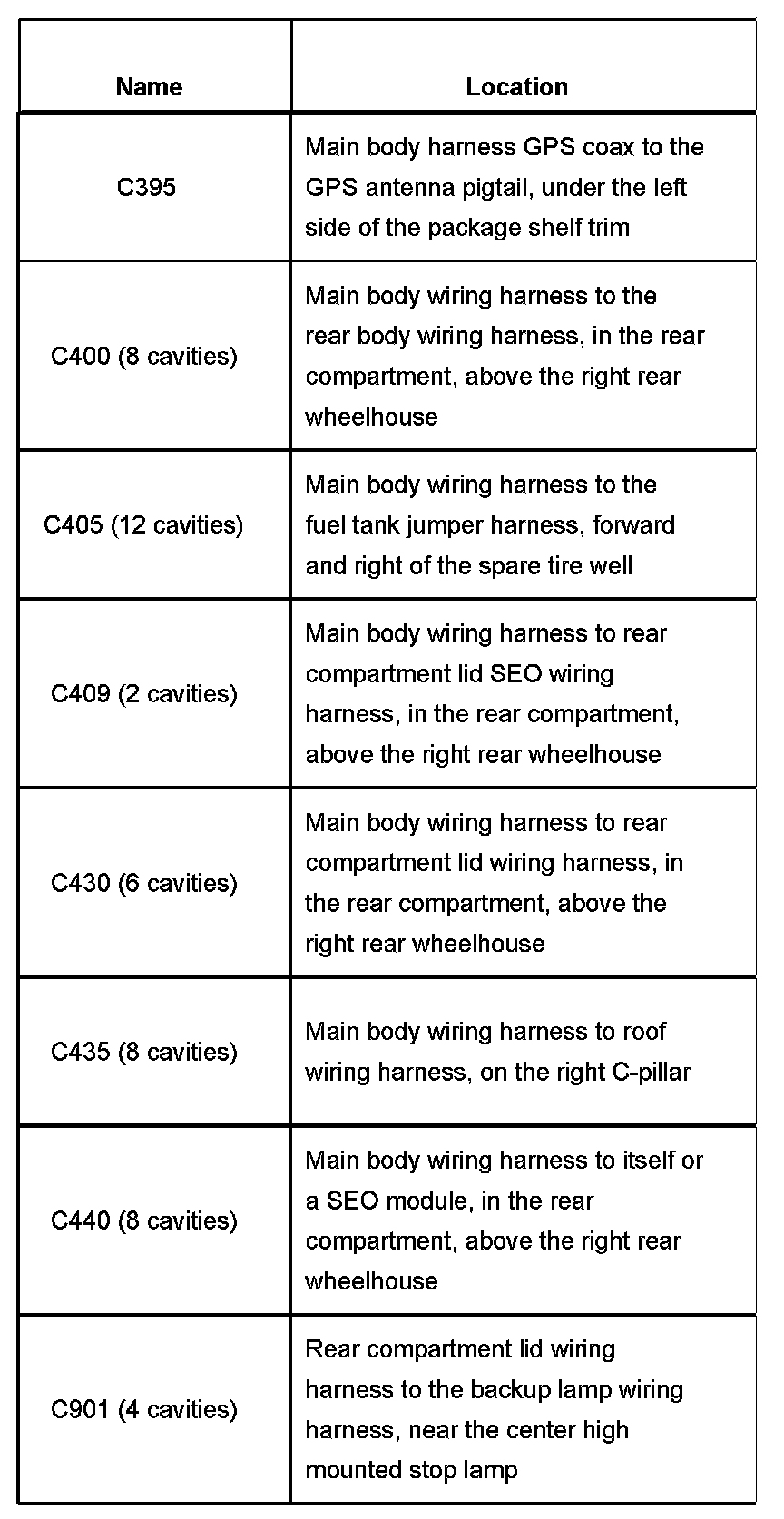

Master Electrical Component List Part 35:




Master Electrical Component List Part 36:




Master Electrical Component List Part 37:




Master Electrical Component List Part 38:




Master Electrical Component List Part 39:
