Home
>>
Chevrolet
>>
2004
>>
Impala V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>

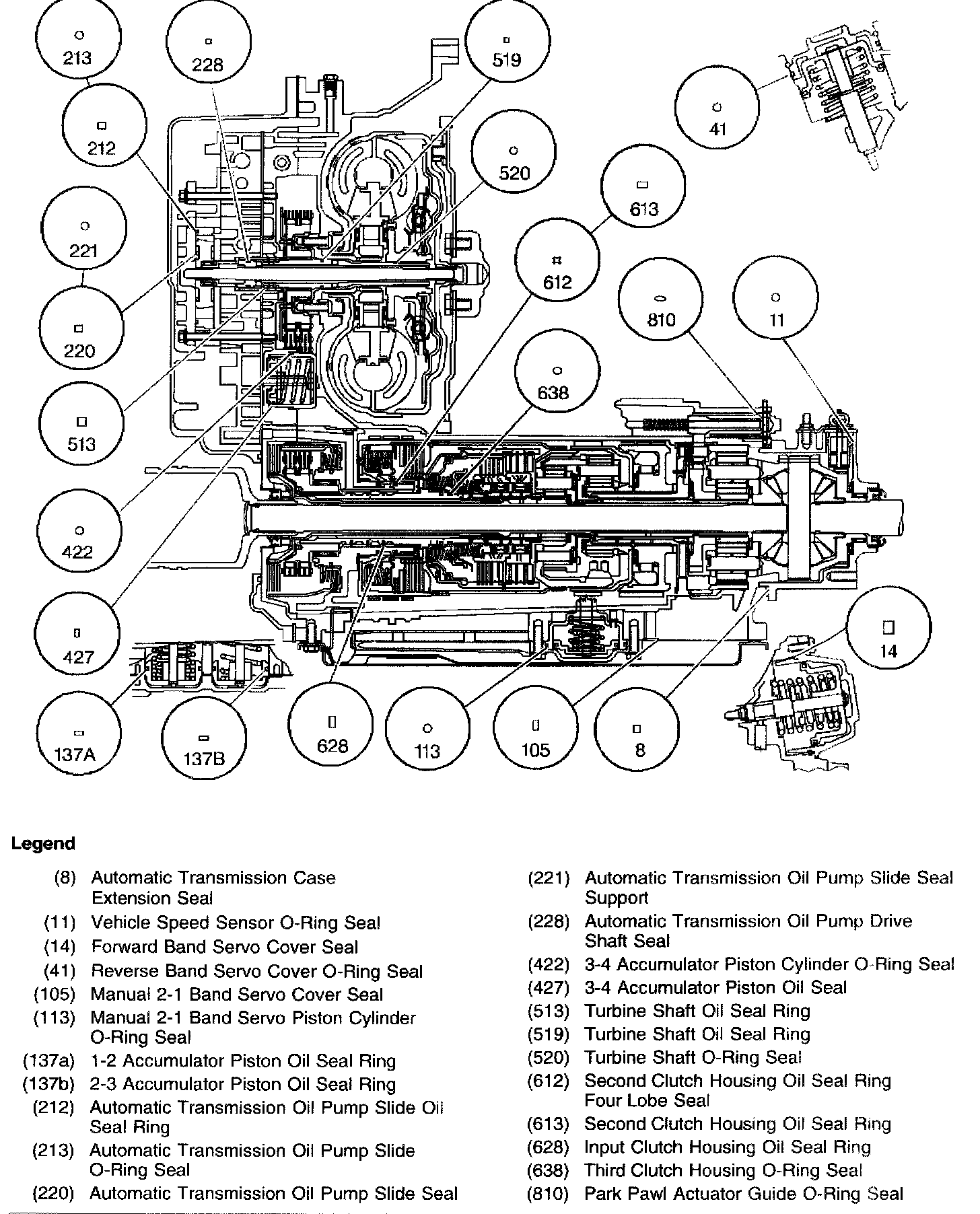

Square and O-Ring Seals
Square and O-Ring Seals
Square and O-Ring Seals:
