Impala V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
Speaker

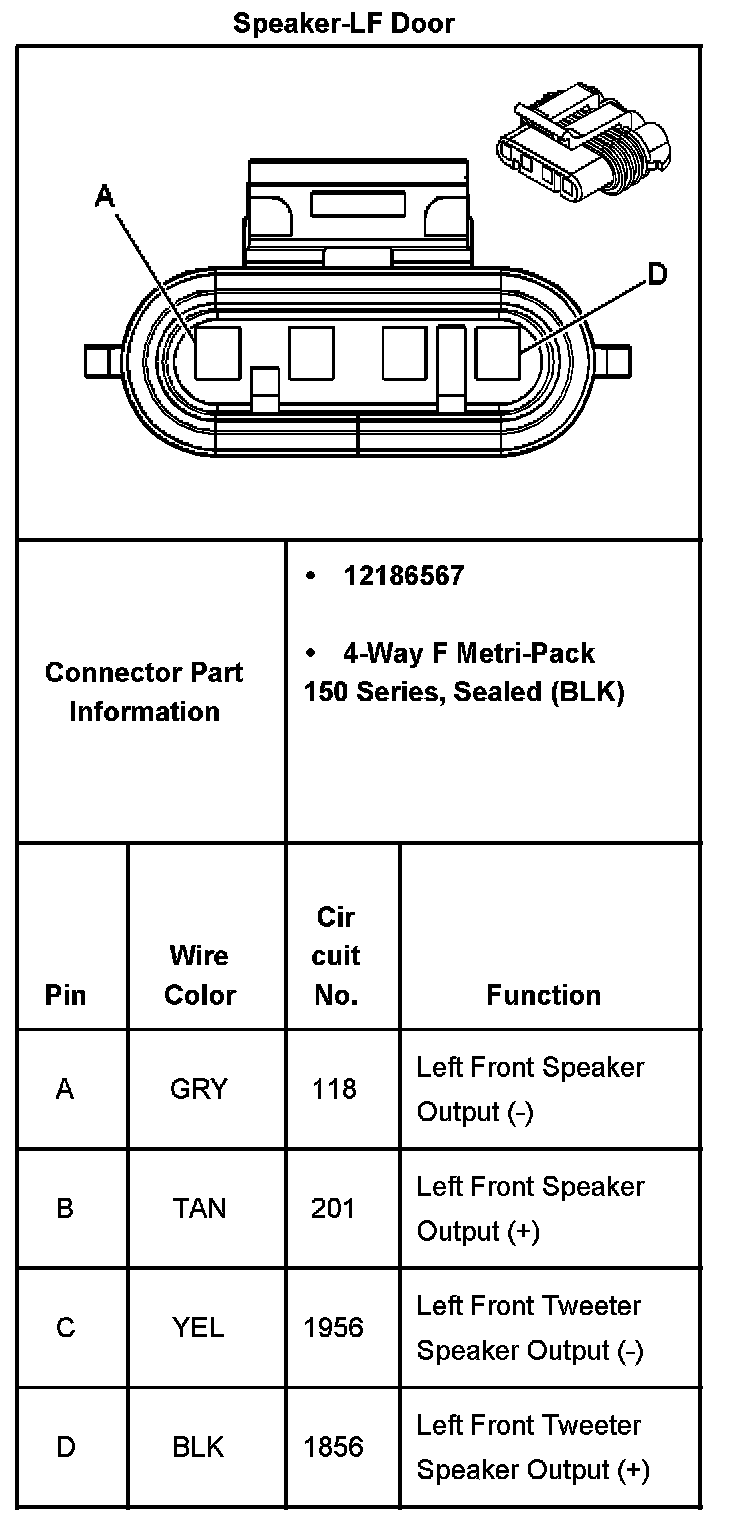

Speaker - LF Door:
Speaker - RF Door:
Speaker - LR:

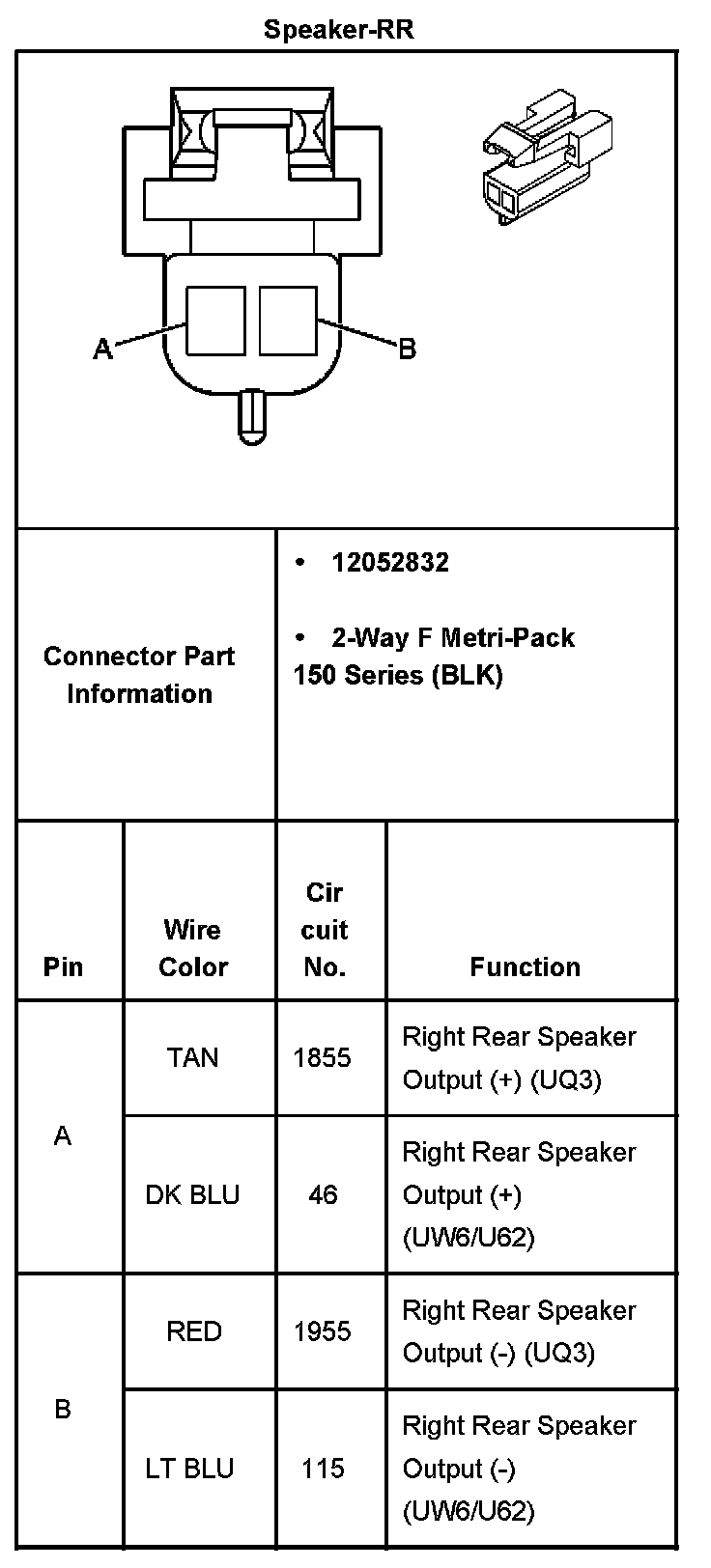

Speaker - RR:
