EGR Tube: Service and Repair

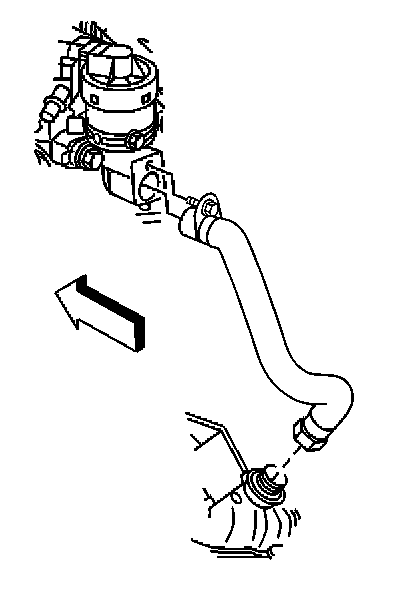

EXHAUST GAS RECIRCULATION (EGR) PIPE REPLACEMENTREMOVAL PROCEDURE
1. Remove the exhaust gas recirculation (EGR) pipe bolt and carefully pull the pipe assembly back.
2. Remove the EGR pipe assembly nut from the exhaust manifold.
3. Remove the EGR pipe.

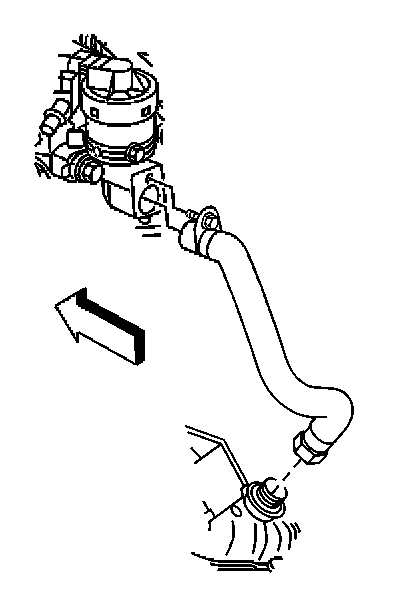

INSTALLATION PROCEDURE
NOTE: Refer to Fastener Notice in Service Precautions.
1. Install the EGR pipe to the exhaust manifold.
Tighten
Tighten the EGR pipe nut to 25 N.m (18 lb ft).
2. Install the EGR pipe to the EGR valve.
3. Install the EGR pipe bolt.
Tighten
Tighten the bolt to 30 N.m (22 lb ft).
