Oxygen Sensor: Locations

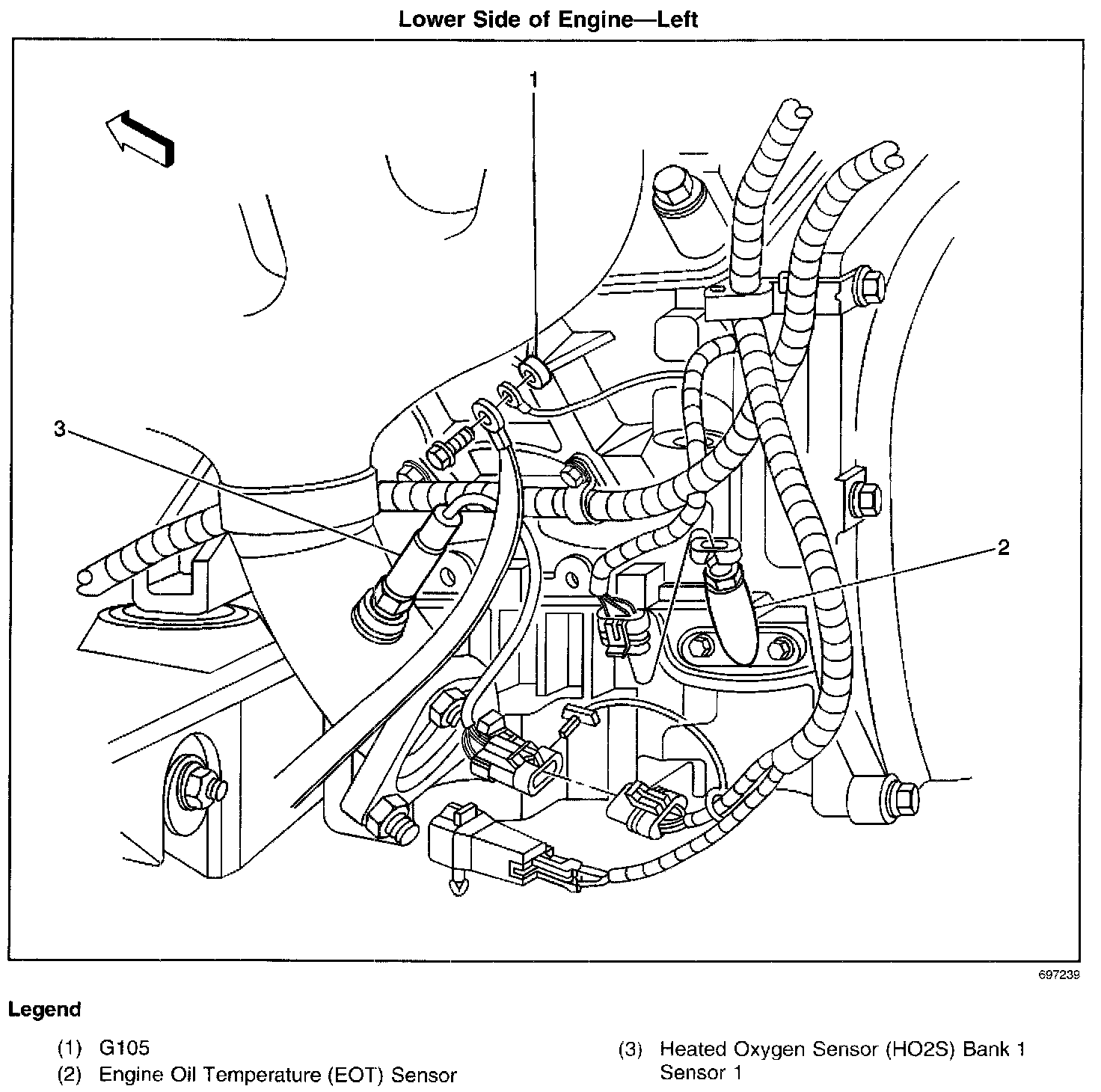

Lower Side Of Engine - Left:



Lower Side Of Engine - Right:

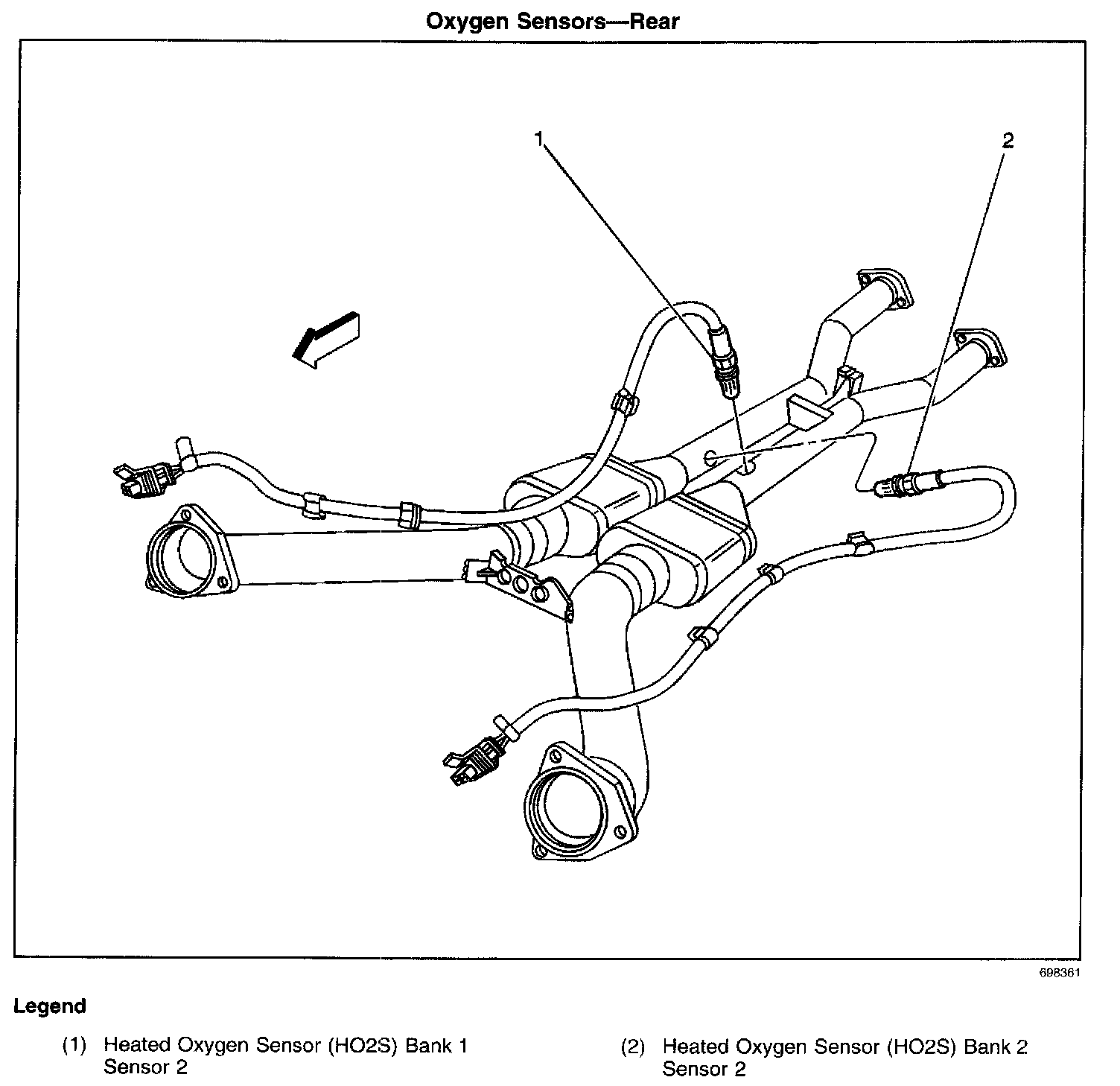

Oxygen Sensor - Rear:
