Scan Tool Does Not Communicate With E and C Data Line
Scan Tool Does Not Communicate With E and C Data Line

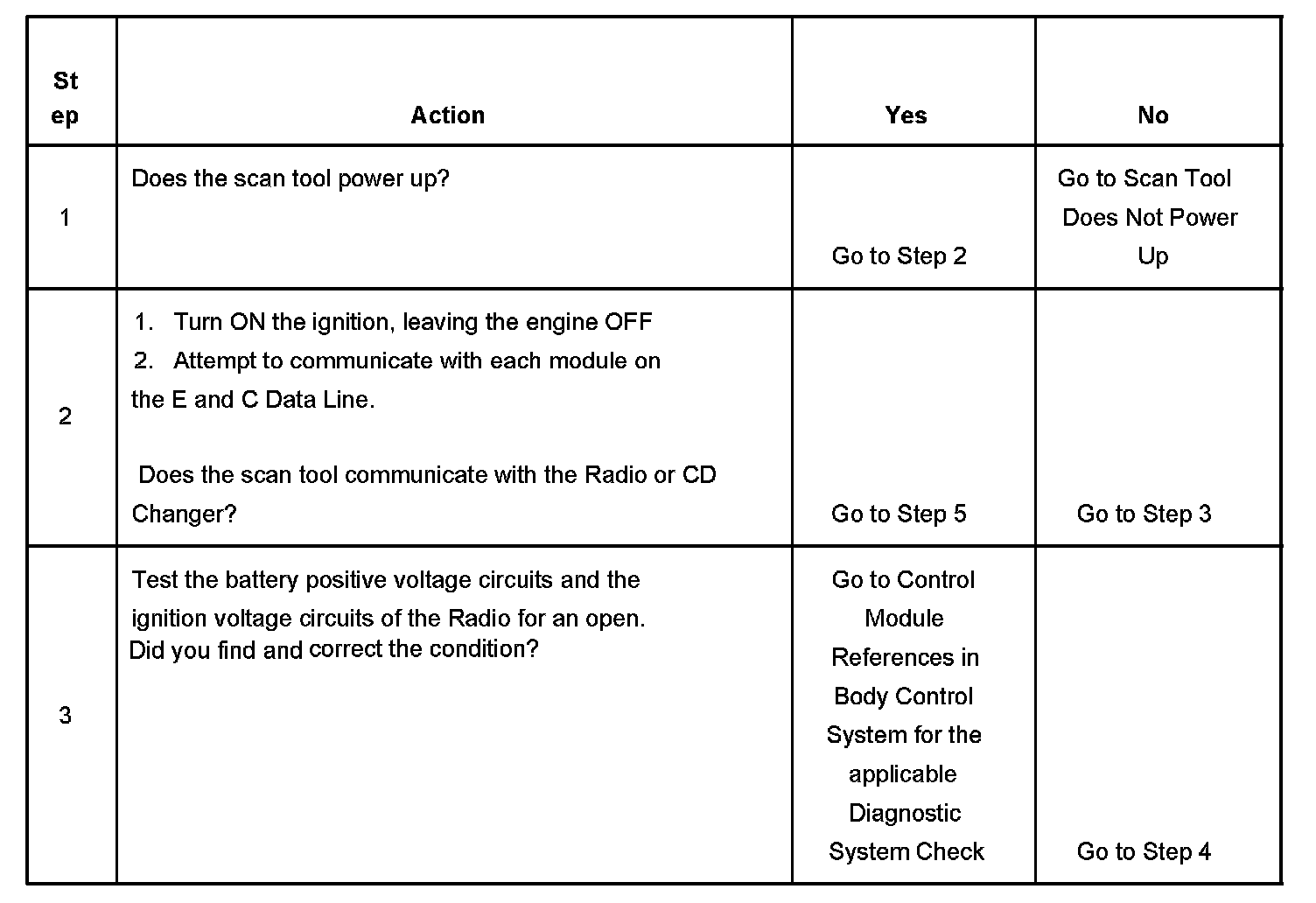

Steps 1-3:

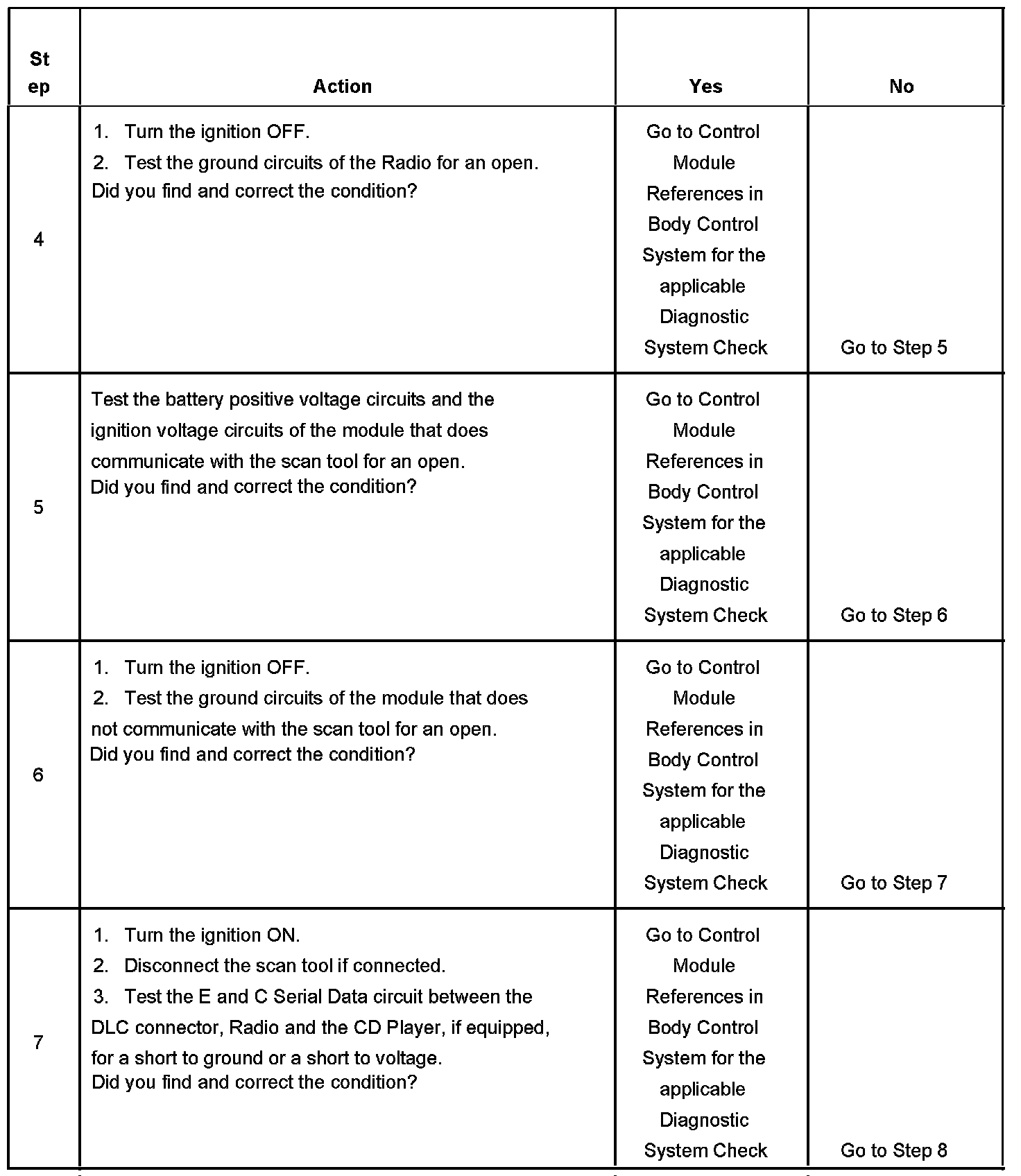

Steps 4-7:

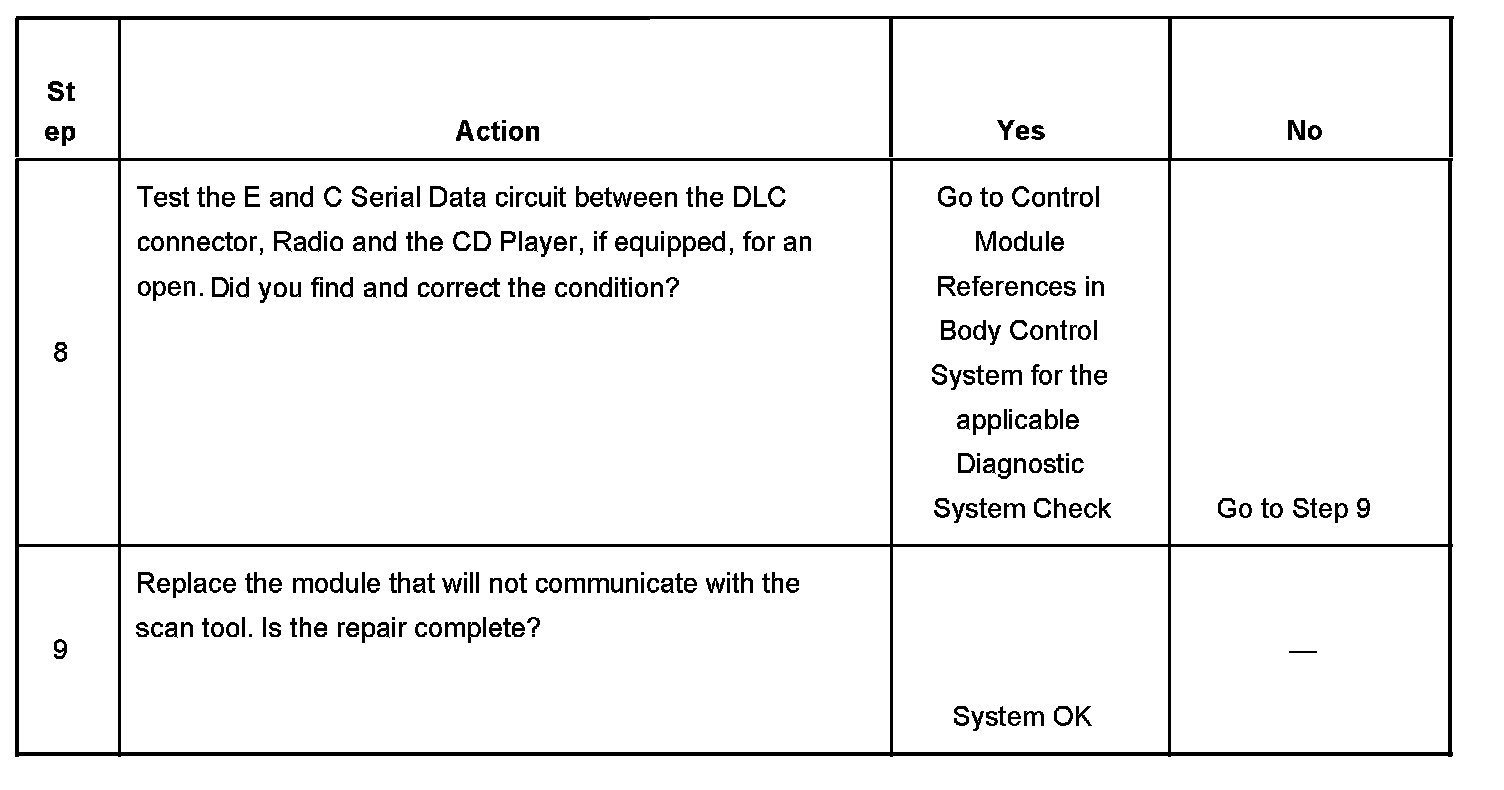

Steps 8-9:
