Rear Toe Adjustment

Rear Toe Adjustment

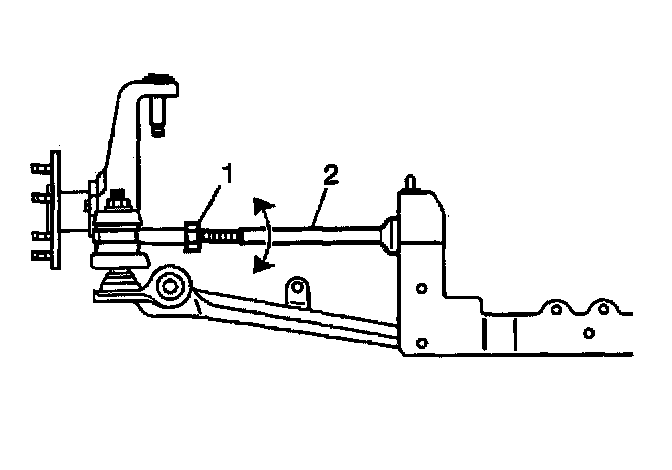

1. Loosen the rear suspension adjustment link lock nut (1).
2. Rotate the inner tie rod (2) to the required toe specification setting.

Notice: Refer to Fastener Notice in Service Precautions.

3. Tighten the rear suspension adjustment link lock nut.
- Tighten the rear suspension adjustment link lock nut to 60 Nm (44 ft. lbs.).
4. Check the toe setting after tightening.
5. Adjust the toe setting if necessary.
