Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cooling System
Cooling System
Cooling Fan-Left:

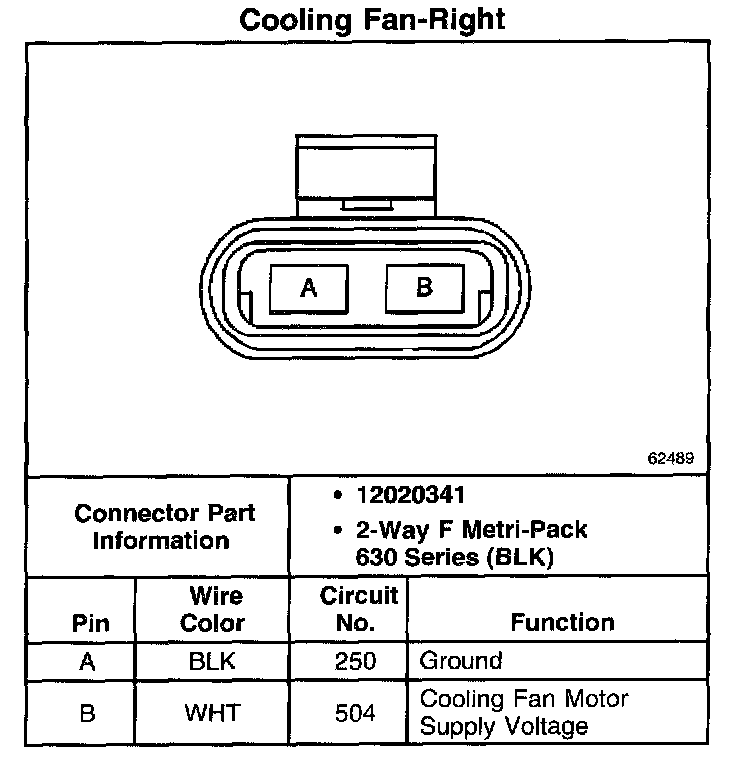

Cooling Fan-Right:
