Generator Bracket Replacement

REMOVAL PROCEDURE




1. Remove the generator.
2. Remove the power steering pump.

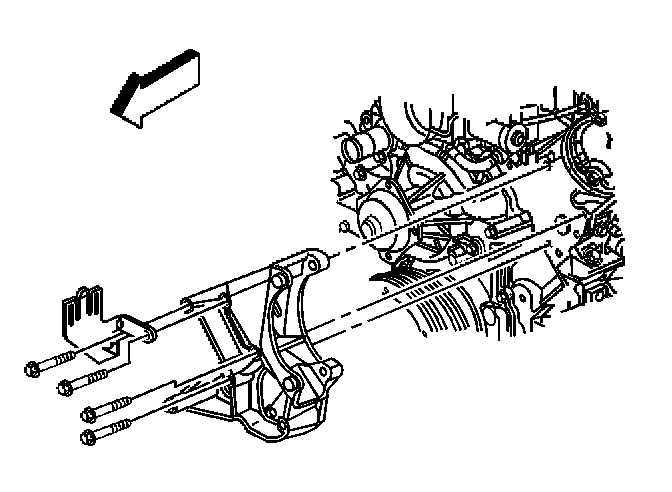

3. Remove the generator bracket bolts, bracket, and power steering reservoir bracket.

INSTALLATION PROCEDURE




1. Install the generator bracket, power steering reservoir bracket and generator bracket bolts to the cylinder head.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the generator bracket bolts to 50 N.m (37 lb ft).

2. Install the power steering pump.
3. Install the generator.
