Vacuum Controller: Service and Repair

VACUUM CONTROL ASSEMBLY REPLACEMENT







REMOVAL PROCEDURE
1. Remove the right instrument panel (I/P) lower insulator panel.

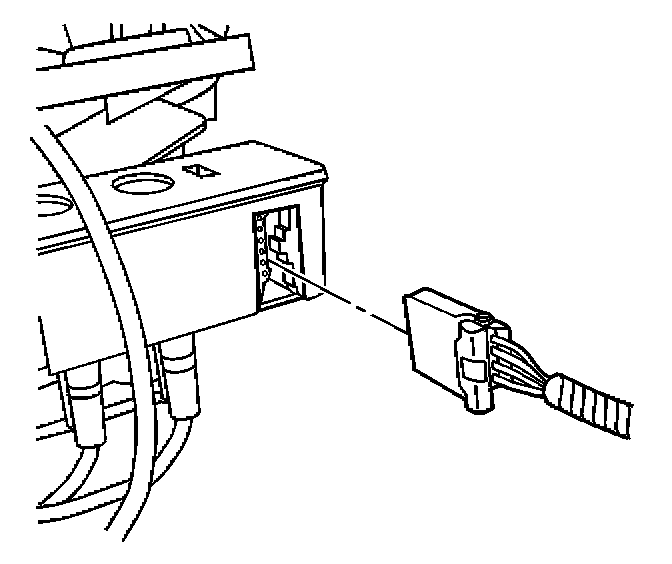

2. Disconnect the electrical connector from the vacuum control solenoid.

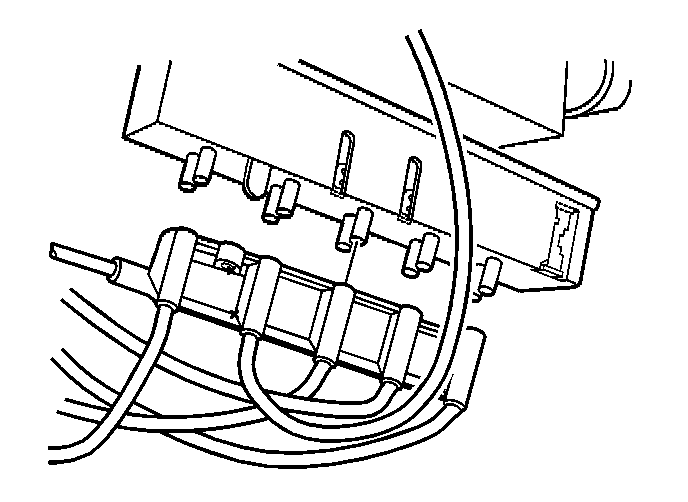

3. Disconnect the vacuum harness connector from the vacuum control solenoid.

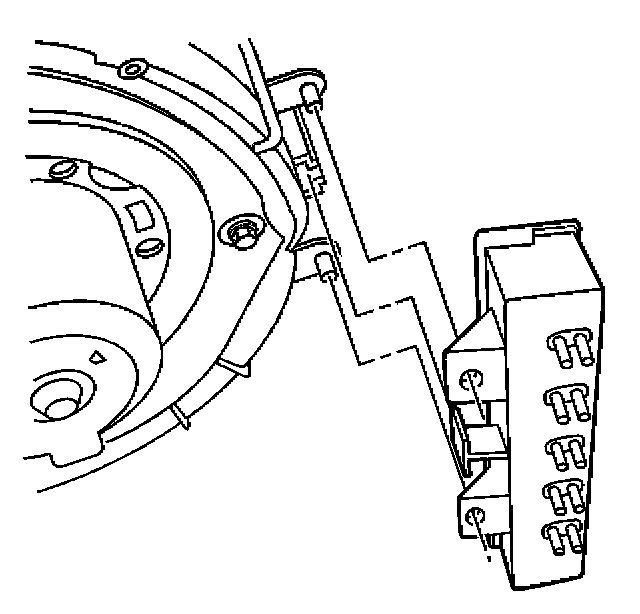

4. Remove the vacuum control solenoid valve retaining screws.
5. Remove the control solenoid.
Pull the control solenoid straight down to release the tab from the slot in the HVAC module case.








INSTALLATION PROCEDURE

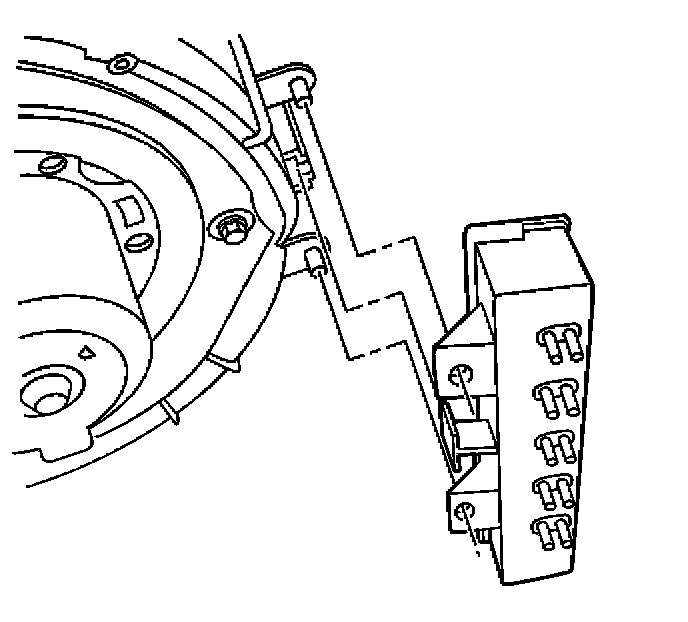

1. Align the vacuum control solenoid tab to the slot in the HVAC module case, then push up to seat the control solenoid.
2. Install the vacuum control solenoid retaining screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to..........................1.5 N.m (13 lb in).







3. Connect the vacuum harness connector to the vacuum control solenoid.







4. Connect the electrical connector to the vacuum control solenoid.
5. Install the right I/P lower insulator panel.
