Differential Assembly
Differential Assembly
Rear Axle Disassembled Views

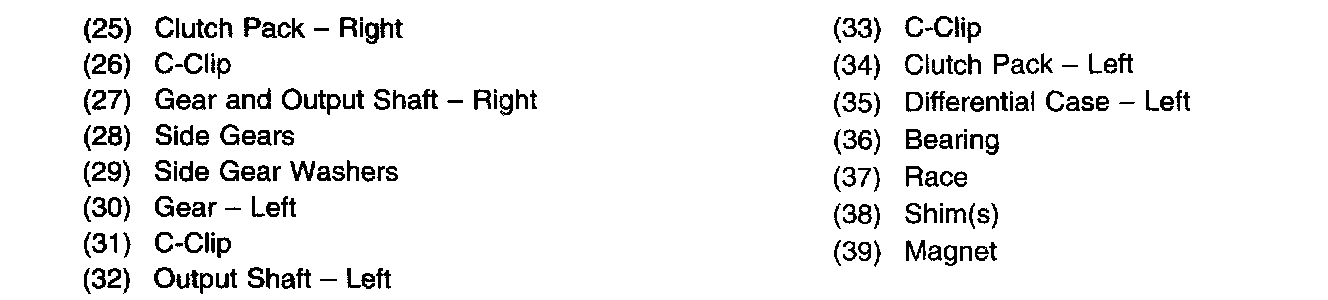

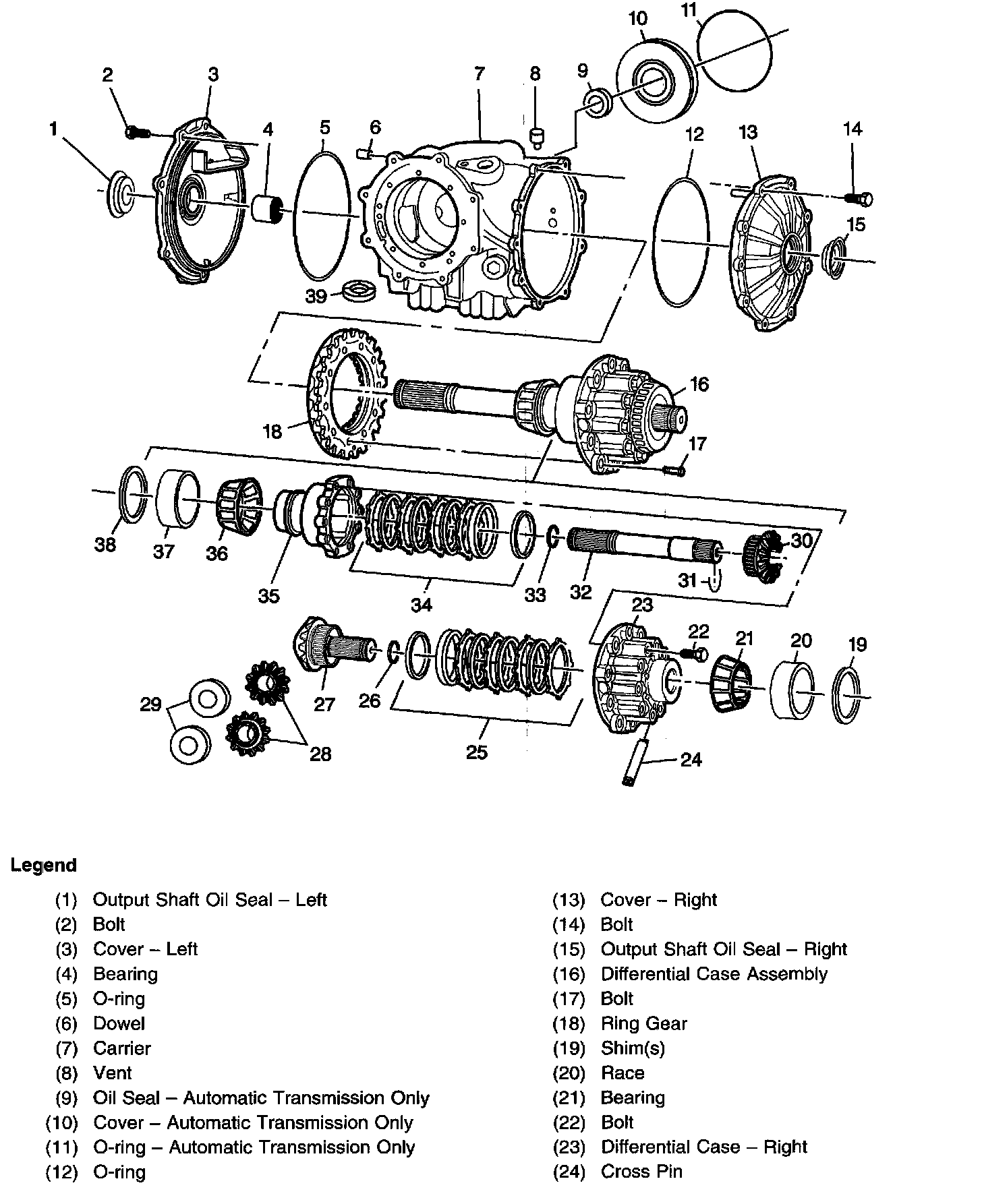

Differential Carrier
and Case Assemble

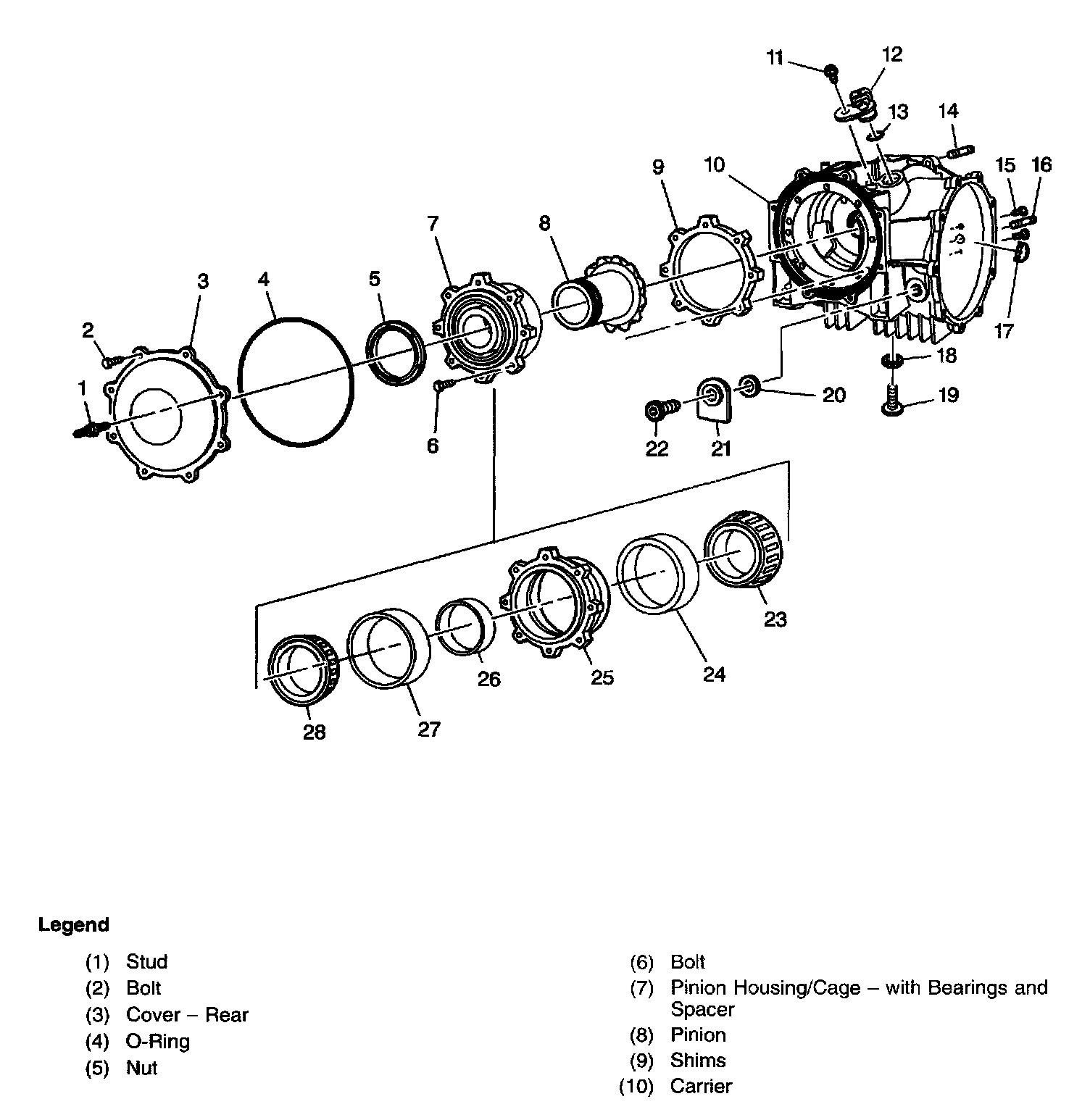

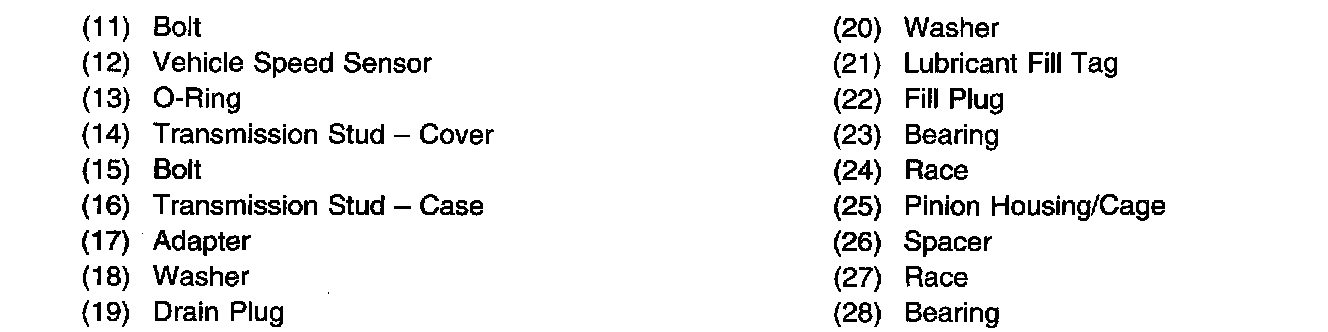

Drive Pinion Assembly
