Fuse Block-Underhood C3

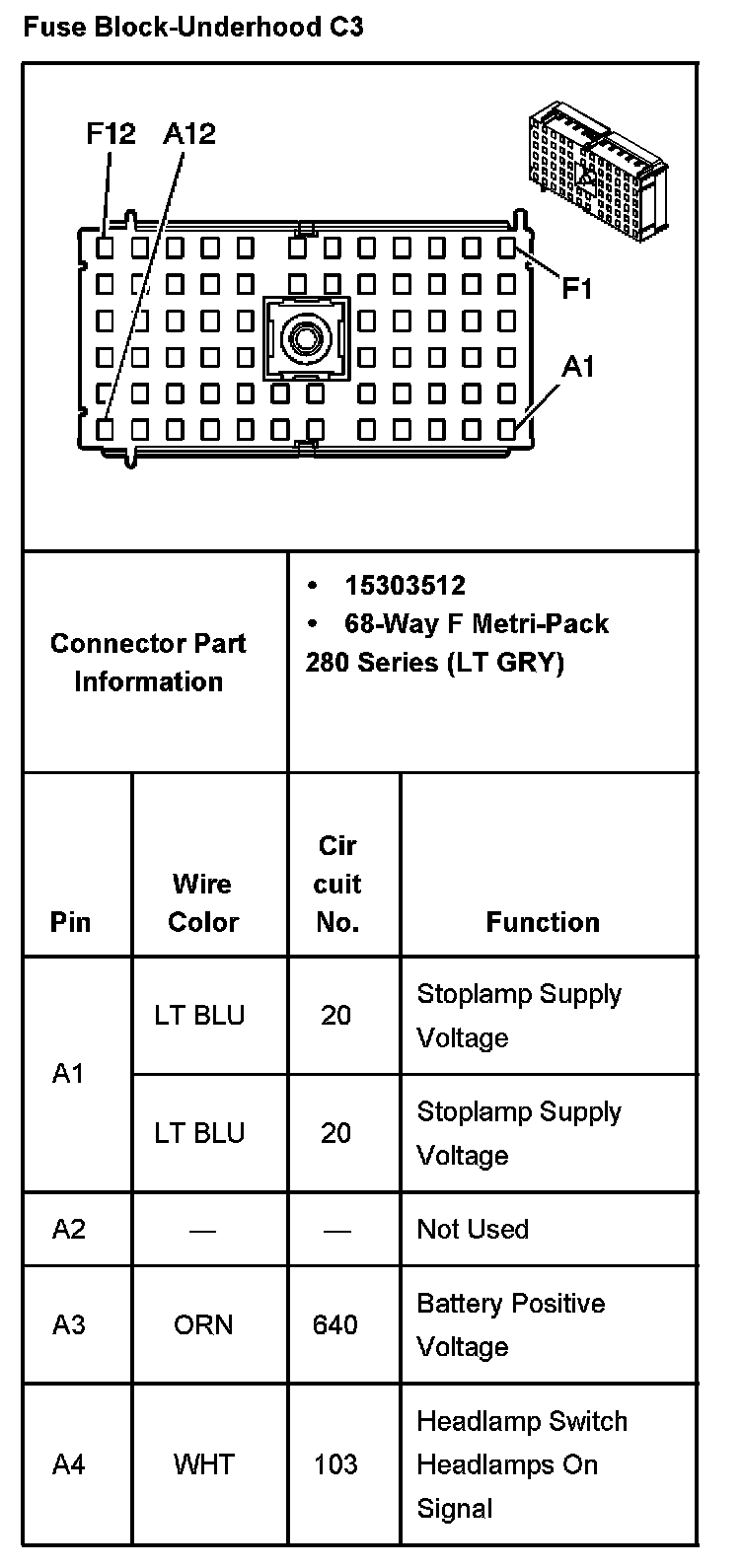

Fuse Block-Underhood C3 Part 1:

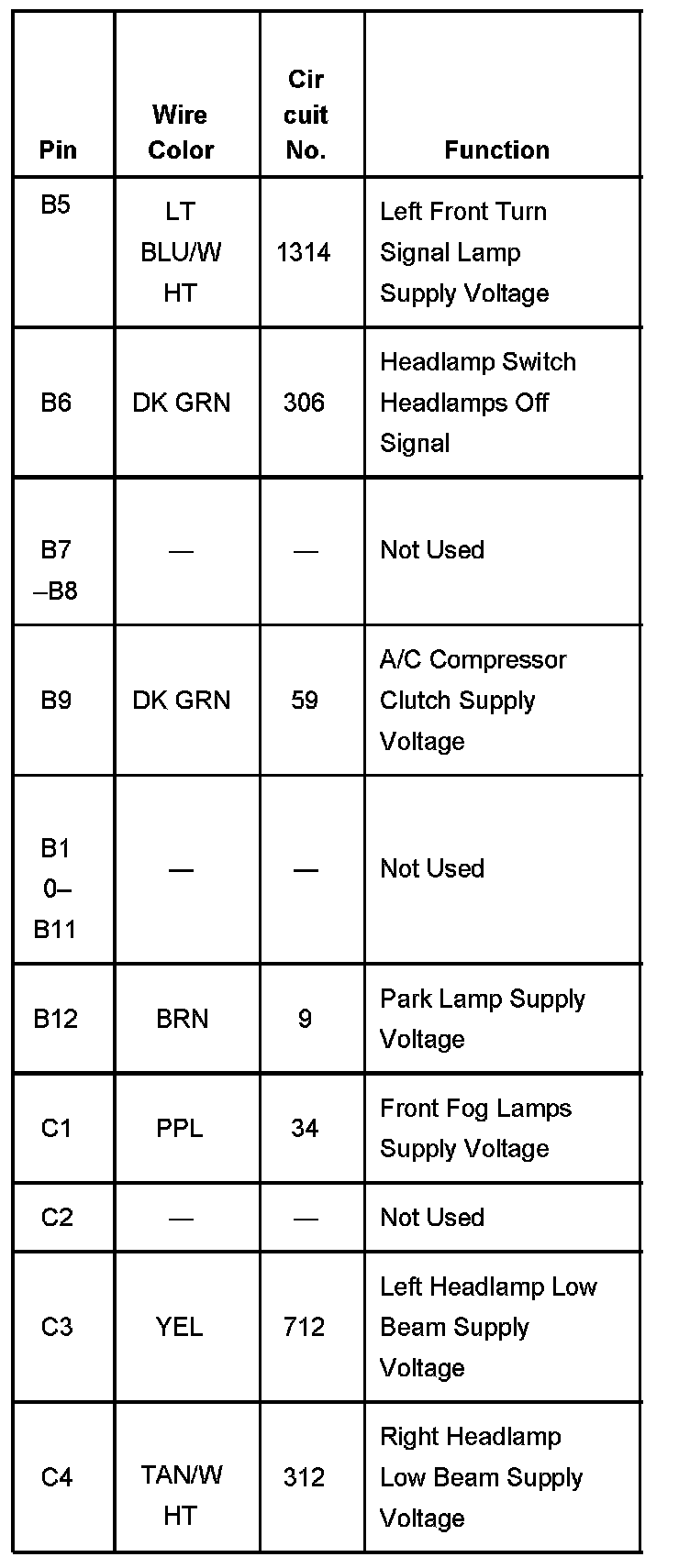

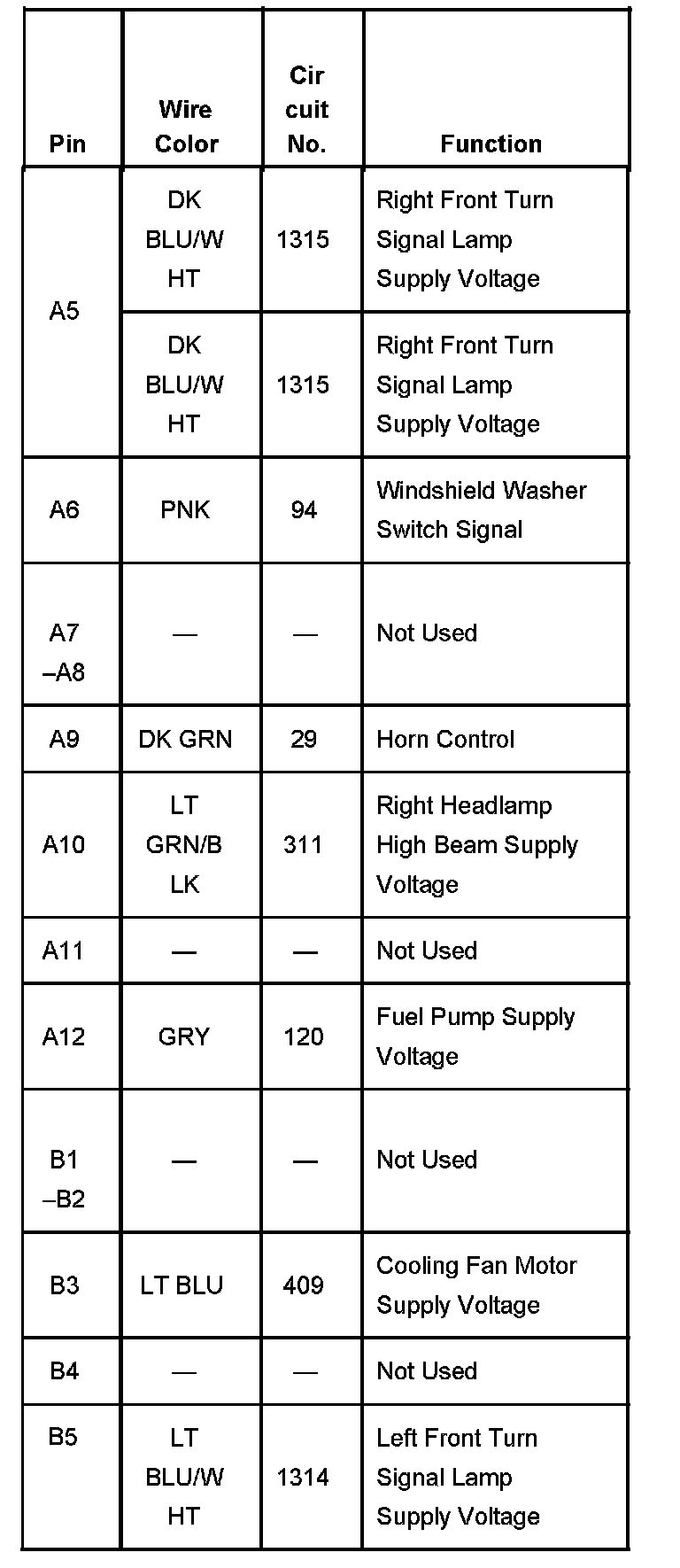

Fuse Block-Underhood C3 Part 2:

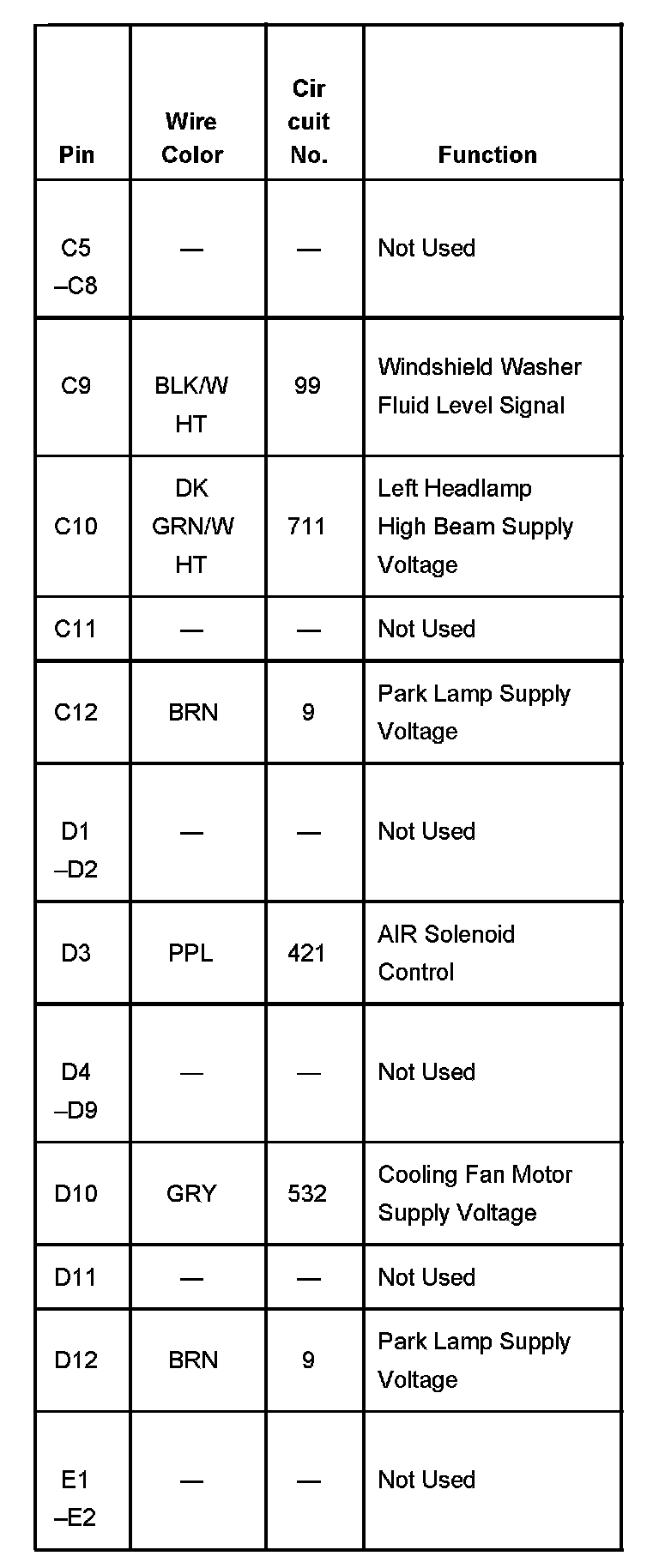

Fuse Block-Underhood C3 Part 3:




Fuse Block-Underhood C3 Part 4:

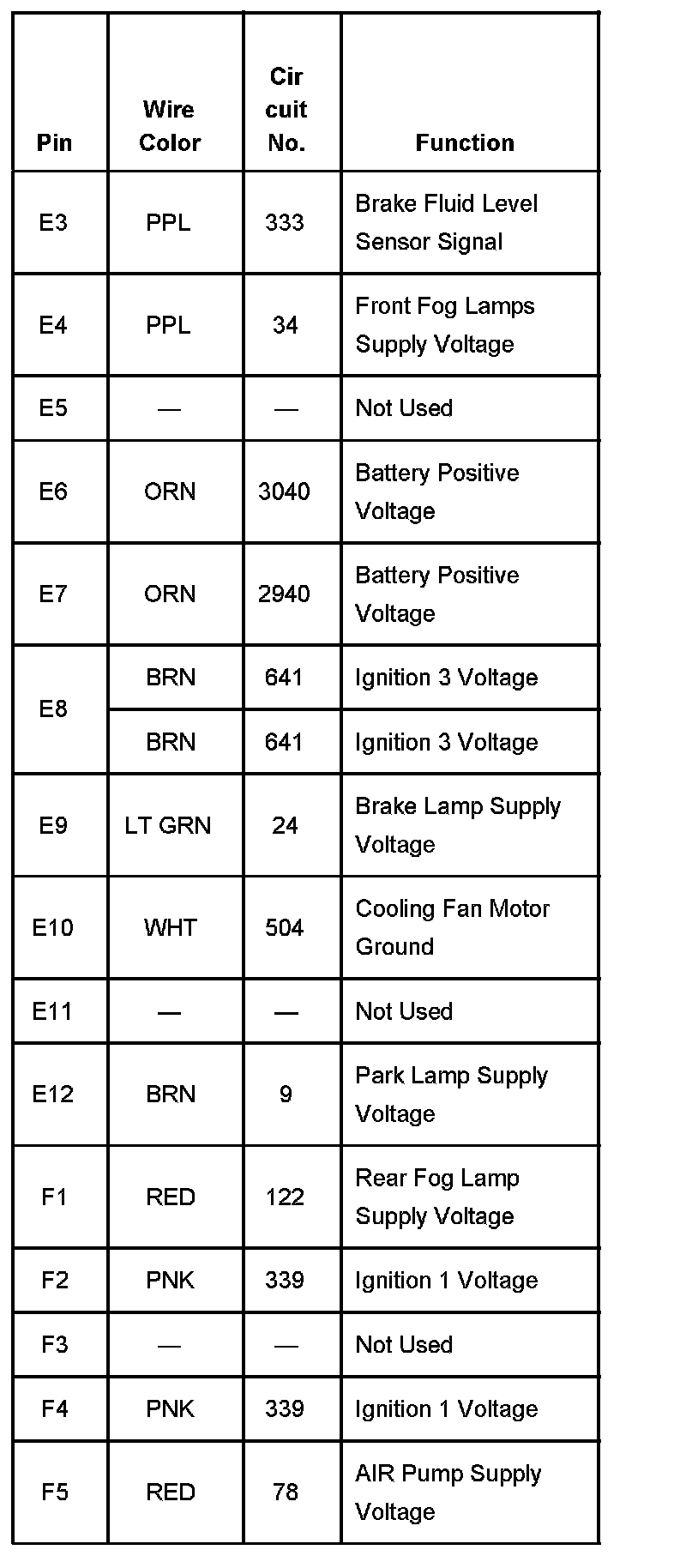

Fuse Block-Underhood C3 Part 5:




Fuse Block Underhood C3 Part 6:
