Home >> Chevrolet >> 2004 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Locations

Body Control Systems: Locations

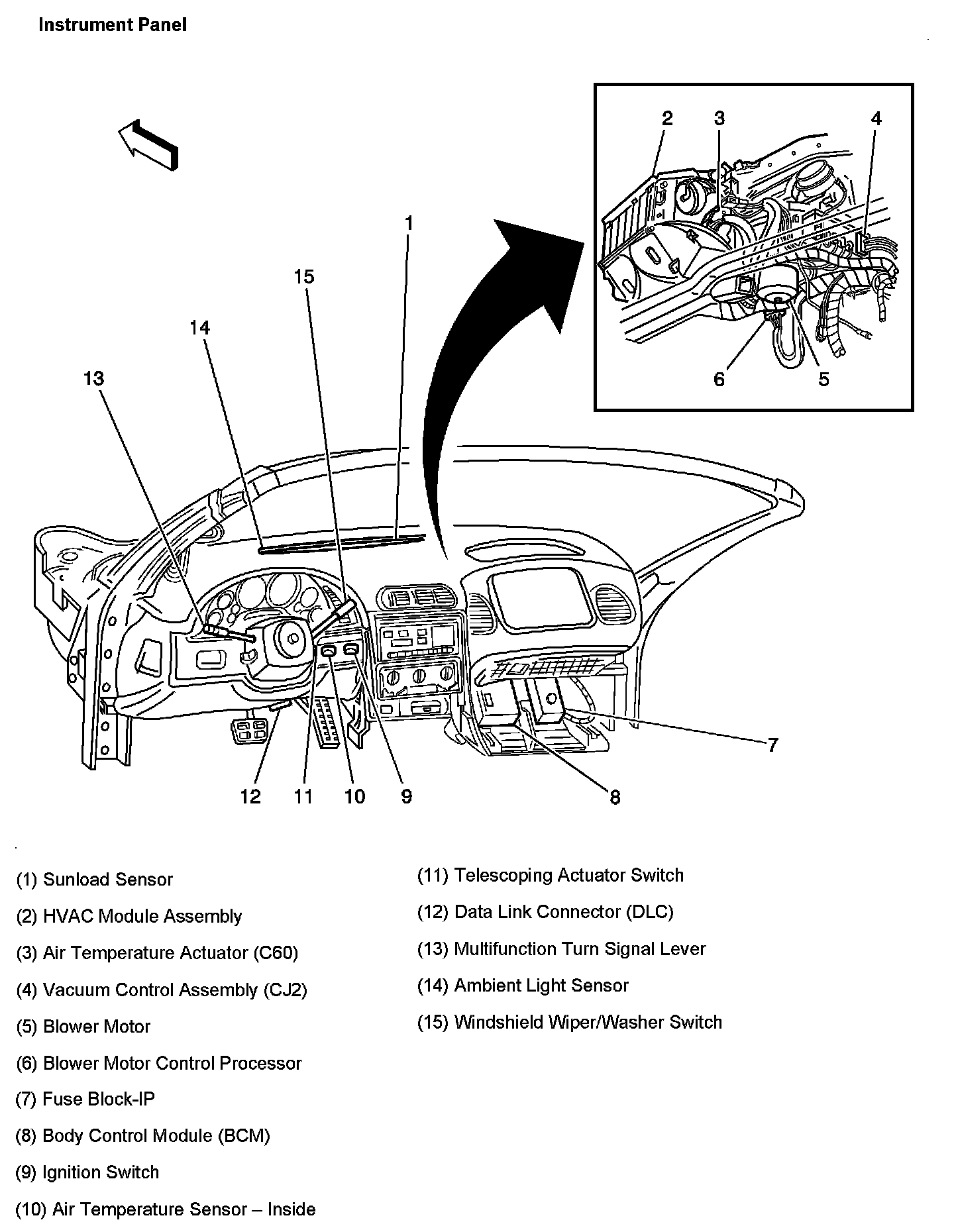

Instrument Panel (w/Manual - HVAC System):
