Rear Door Window Regulator: Service and Repair

Window Regulator Replacement - Rear Door

Removal Procedure

1. Remove the rear door water deflector.
2. Remove the rear window.
3. Disconnect the rear window regulator motor electrical connector.

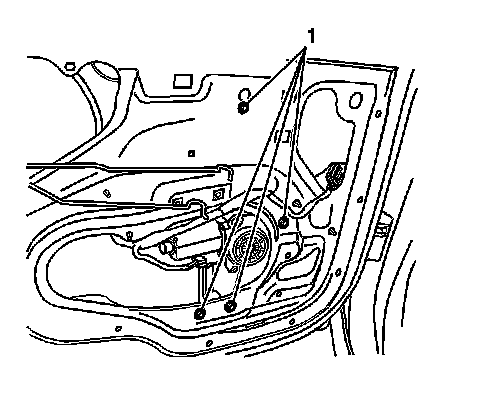

4. Remove the rear window regulator bolts (1).




5. Remove the rear window regulator from the door.

Installation Procedure




1. Position the rear window regulator in the rear door.






Notice: Refer to Fastener Notice in Service Precautions.

2. Install the rear window regulator bolts (1).

Tighten the bolts to 10 N.m (89 lb in).

Connect the rear window regulator motor electrical connector.

3. Install the rear window.
4. Install the rear door water deflector.
5. Install the rear door trim panel.
