Rear Door Window Motor: Service and Repair

Window Regulator Motor Replacement - Rear Door

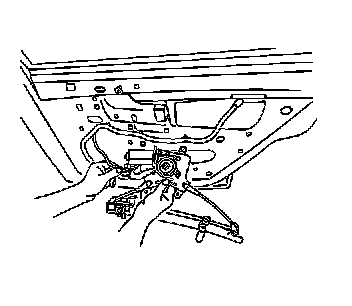

Removal Procedure

1. Remove the rear window regulator.




2. Disconnect the rear window regulator motor electrical connector.
3. Remove the rear window regulator motor screws.
4. Remove the rear window regulator motor from the rear window regulator.

Installation Procedure




1. Position the rear window regulator motor to the rear window regulator.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the rear window regulator motor screws.

Tighten the screws to 10 N.m (89 lb in).

3. Install the rear window regulator motor electrical connector.
4. Install the rear window regulator.
