Flex Plate: Service and Repair

Engine Flywheel Replacement

Removal Procedure
1. Remove the transmission.

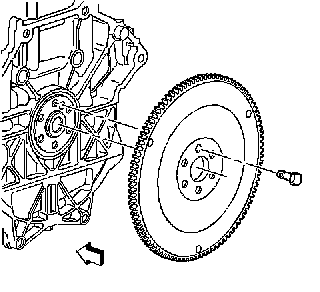

2. Remove the flywheel.

Installation Procedure






Notice:
Fastener Notice in Cautions and Notices.

1. Install the flywheel.
^ Tighten the flywheel bolts to 53 Nm (39 lb ft) plus 25 degrees.
2. Install the transmission.
