Alternator: Service and Repair
GENERATOR REPLACEMENTREMOVAL PROCEDURE
1. Disconnect negative battery cable.
2. Remove the air cleaner resonator.
3. Remove the oil level indicator tube bolt and reposition the tube.
4. Remove the drive belt.
5. Disconnect the electrical connectors from the generator.

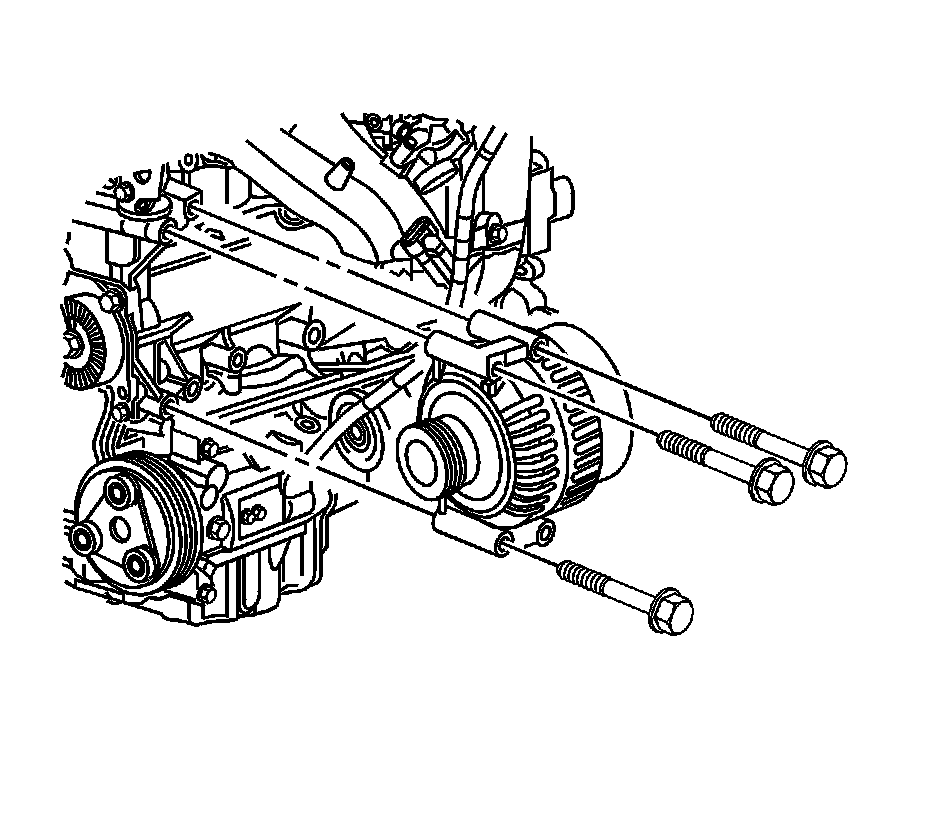

6. Remove the generator bolts.
7. Lower the vehicle.
8. Remove the generator.
INSTALLATION PROCEDURE
1. Install the generator.
2. Raise the vehicle.
NOTE: Refer to Fastener Notice in Service Precautions.
3. Install the generator bolts.
Tighten the generator bolts to 22 N.m (16 lb ft).
4. Connect the generator electrical connectors.
Tighten the generator electrical connector to 20 N.m (15 lb ft).
5. Install the drive belt.
6. Install the oil level indicator tube bolt.
7. Remove the air cleaner resonator.
8. Lower the vehicle.
9. Connect the battery negative cable.
