Home >> Chevrolet >> 2004 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations >> Coolant Level Switch and A/C Refrigerant Pressure Sensor

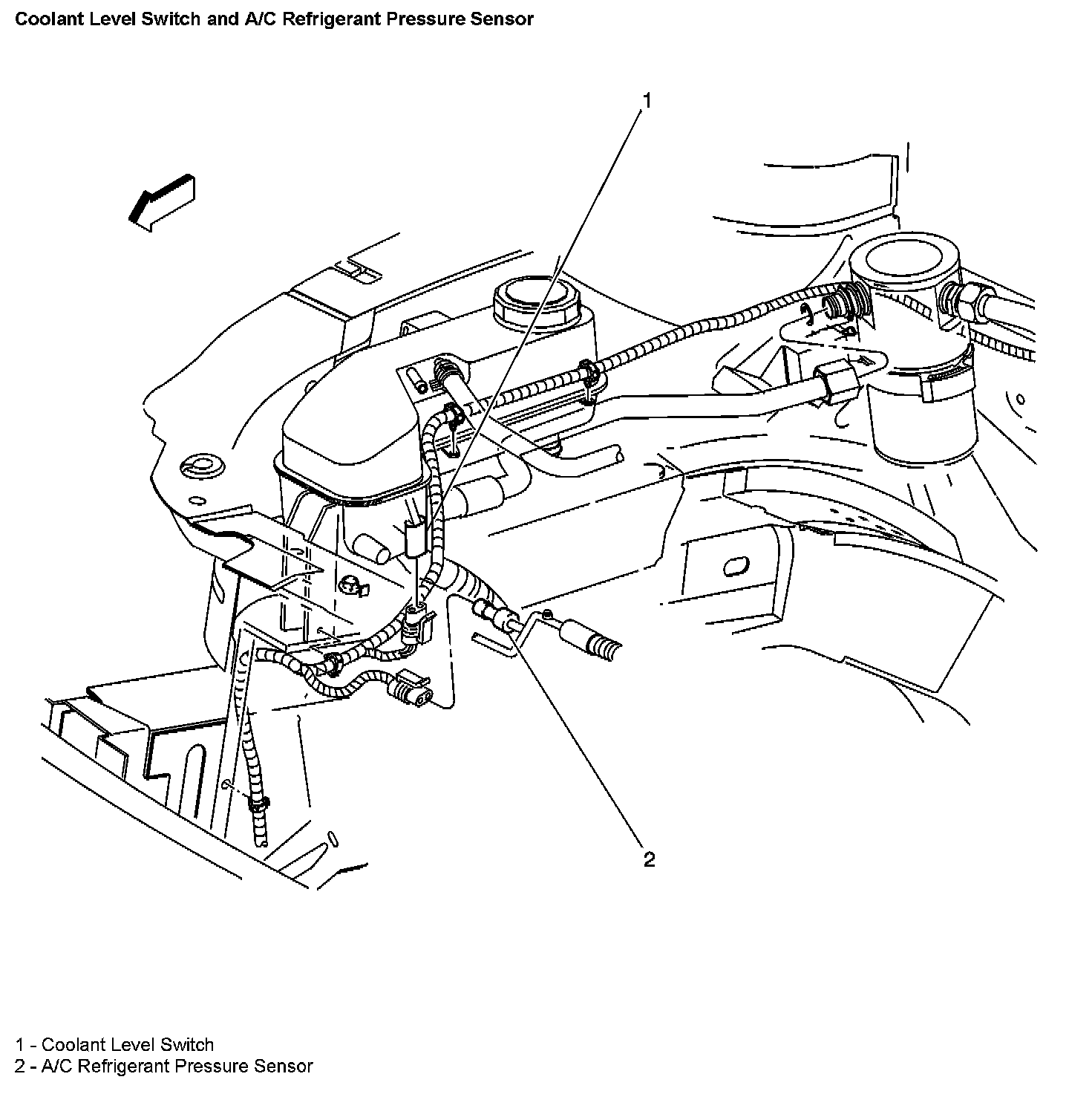

Coolant Level Switch and A/C Refrigerant Pressure Sensor

Coolant Level Switch And A/C Refrigerant Pressure Sensor:
