Chevrolet
>>
2004
>>
Classic L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
Speaker

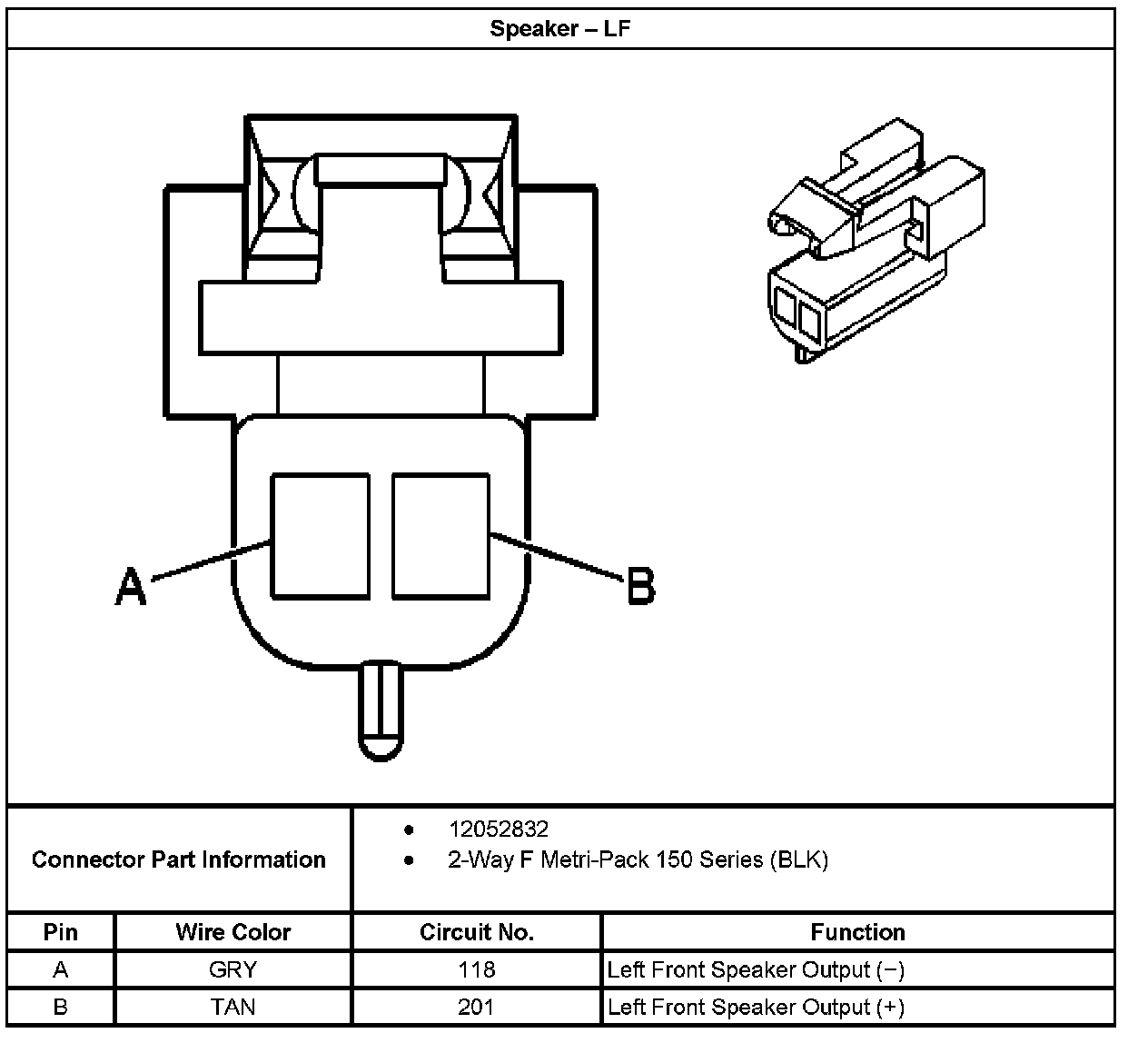

Speaker - LF:
Speaker - LR:
Speaker - RF:
Speaker - RR:
