Power Mirror Switch Replacement

POWER MIRROR SWITCH REPLACEMENT

REMOVAL PROCEDURE

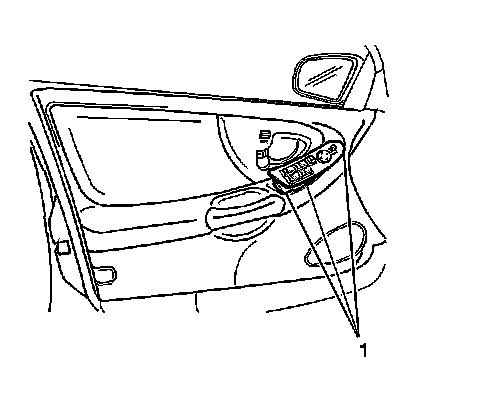

1. With a flat-bladed tool release the power accessory switch panel retainers (1). Push in and lift up on the retainers to remove the switch plate (1) from the door trim panel.

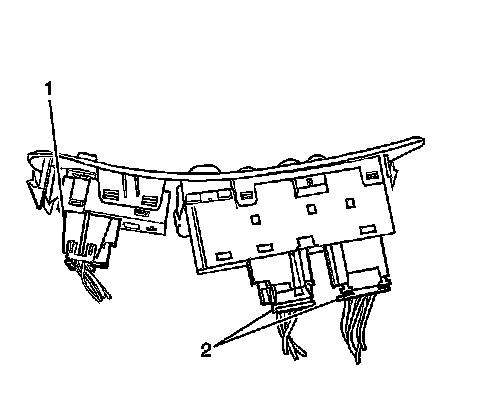

2. Disconnect the electrical connector (1) from the power mirror switch.
3. Release the power mirror switch retainers. Push the mirror switch out of the accessory switch plate.

INSTALLATION PROCEDURE




1. Install the power mirror switch to the accessory switch plate. Press the switch into the switch plate until retaining tabs are fully seated.
2. Connect the electrical connector (1) to the power mirror switch.




3. Install the power accessory switch plate to the door trim panel. Press until the switch plate retainers (1) are fully seated.
