Electrical Specifications

Specifications

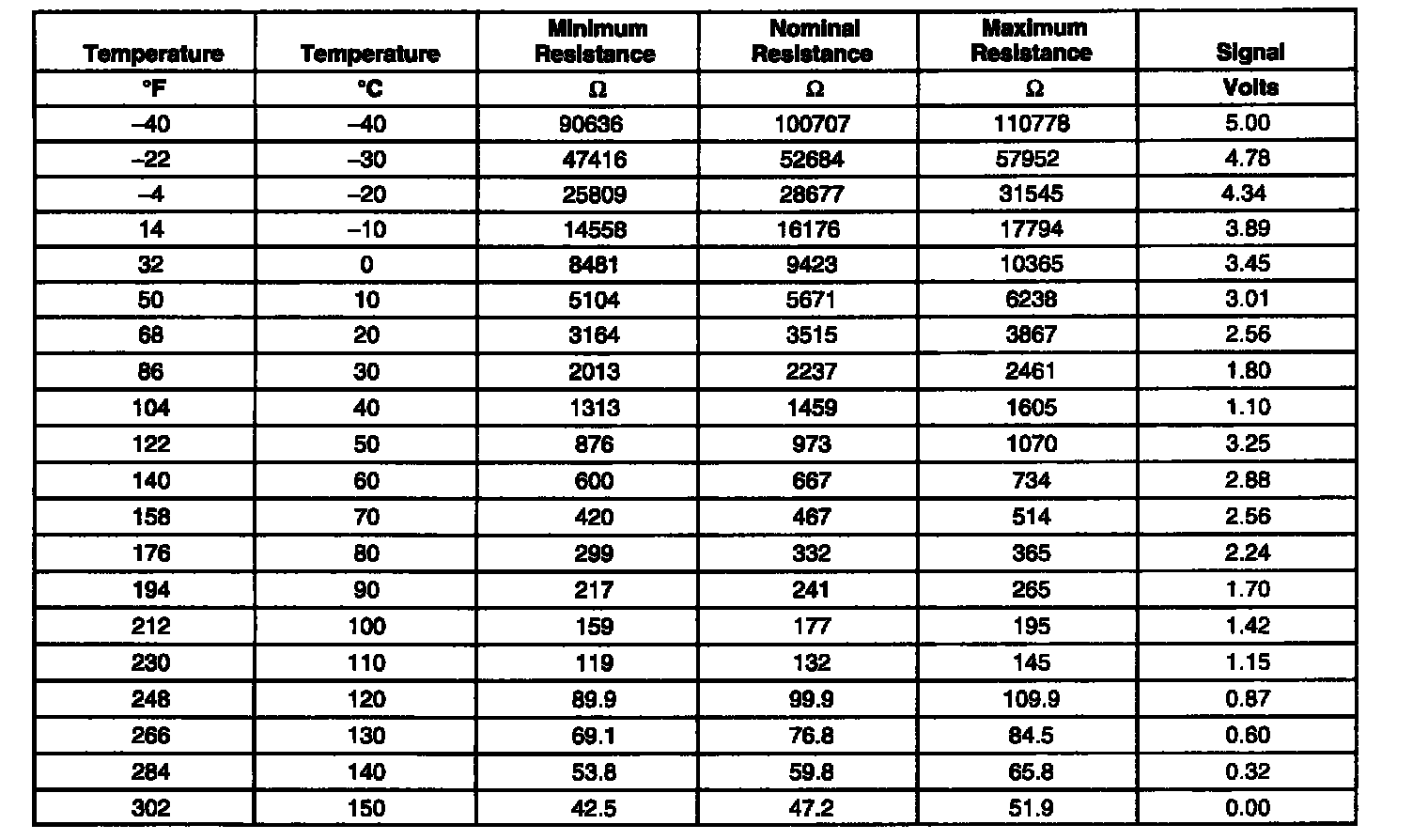

Transmission Fluid Temperature (TFP) Sensor Specifications






Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic






Transmission Range Switch Logic






Component Resistance
