Fluid Pan: Service and Repair

Oil Pan Replacement

Removal Procedure
1. Raise the vehicle. Support the vehicle.
2. Place the drain pan under the transaxle oil pan.

Notice: When removing the oil pan bolts, be careful not to damage the oil pan sealing surfaces. Such damage may result in oil leaks in this area.





3. Remove the oil pan bolts from only the front and the sides.
4. Loosen the rear oil pan bolts about 4 turns.
5. Lightly tap the oil pan with a rubber mallet or pry in order to allow the fluid to drain.
6. Remove the remaining oil pan bolts.





7. Remove the oil pan.

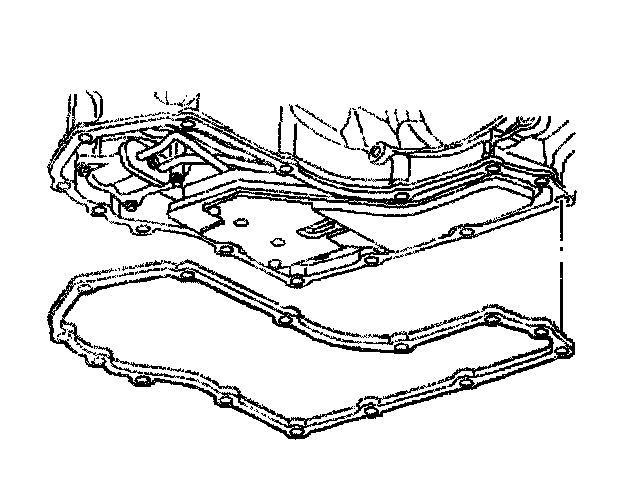

8. Remove the oil pan gasket.

Installation Procedure
1. Clean and inspect the oil pan for dents or damage. Dry the oil pan before installation.





2. Install the oil pan gasket. Use a new gasket if the sealing ribs are damaged.





3. Install the oil pan. Replace the bottom pan it damaged.

Notice: Refer to Fastener Notice in Service Precautions

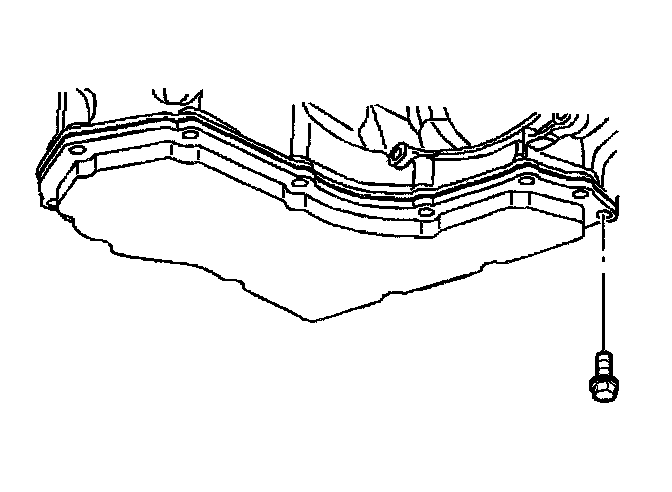

4. Install the oil pan attaching bolts.
Tighten the bolts to 14 Nm (124 inch lbs.).
5. Lower the vehicle.
6. Fill the transmission.
7. Inspect the transmission fluid level.
8. Inspect the oil pan gasket for leaks.
