Oil Pressure Sensor: Locations

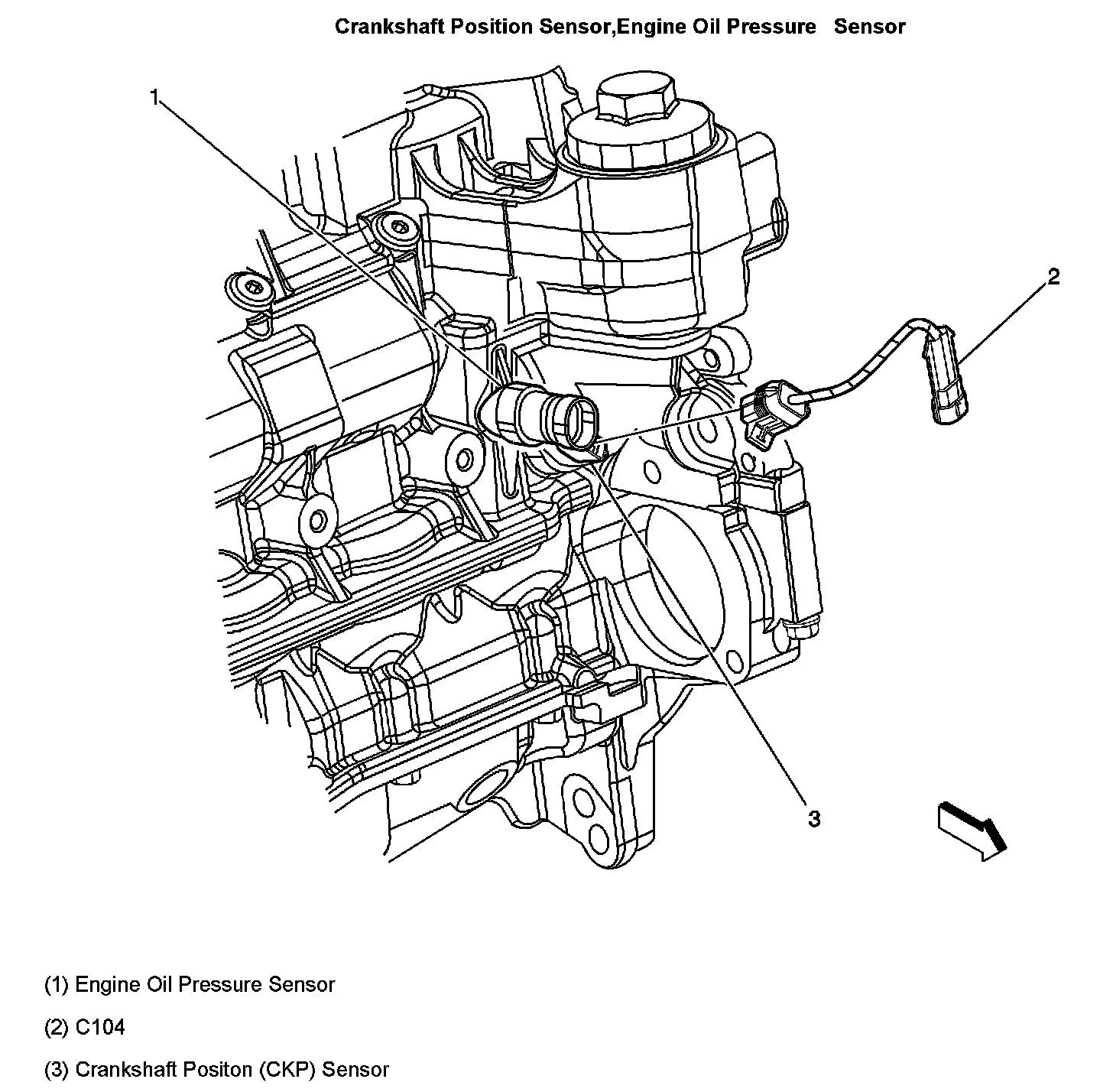

Crankshaft Position Sensor, Engine Oil Pressure Sensor:

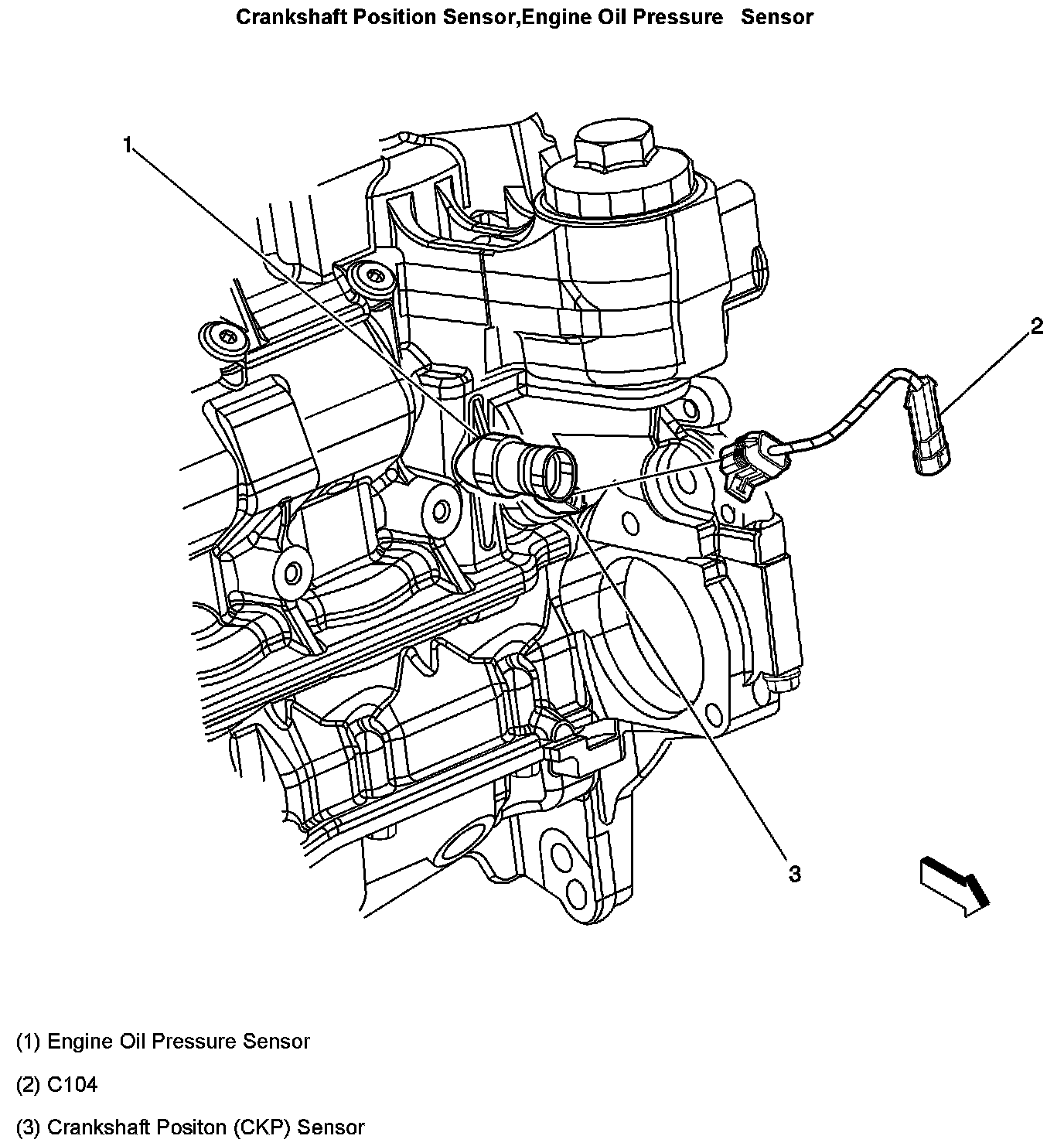

Crankshaft Position Sensor,Engine Oil Pressure Sensor:

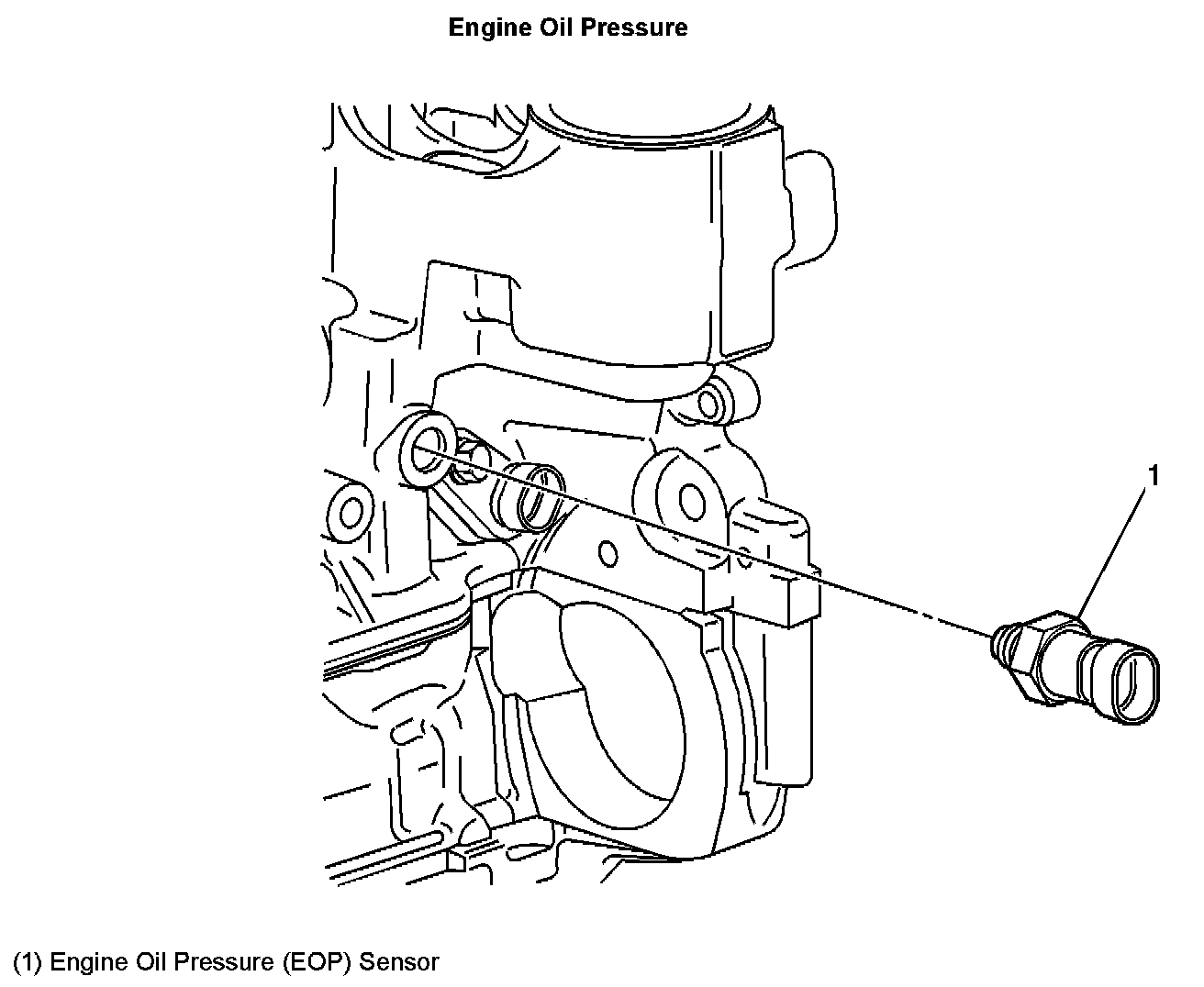

Engine Oil Pressure:



Crankshaft Position Sensor, Engine Oil Pressure Sensor:
