Expansion Block/Orifice Tube: Service and Repair
EXPANSION (ORIFICE) TUBE REPLACEMENTTOOLS REQUIRED
- J 39400-A Halogen Leak Detector
- J 26549-E Orifice Tube Remover
REMOVAL PROCEDURE

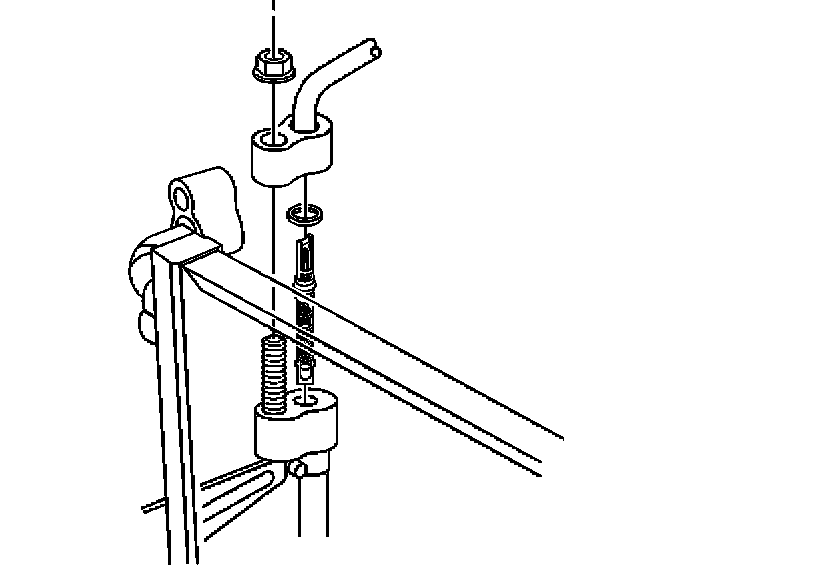

1. Remove the evaporator tube.
2. Remove the evaporator tube from the condenser tube.
3. Use the J 26549-E in order to remove the expansion orifice tube.
4. Inspect the expansion (orifice) tube for the following conditions and clean or replace with a new tube as indicated:

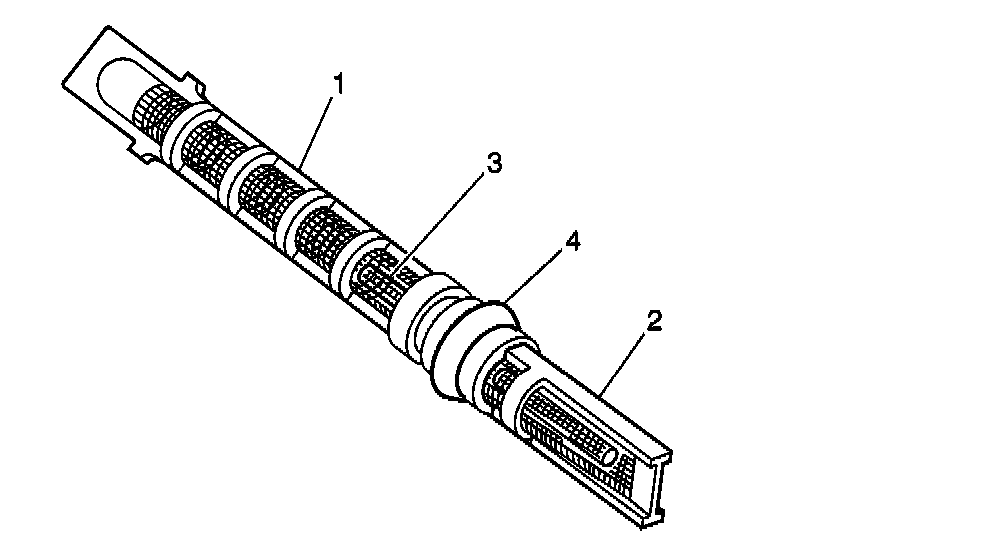

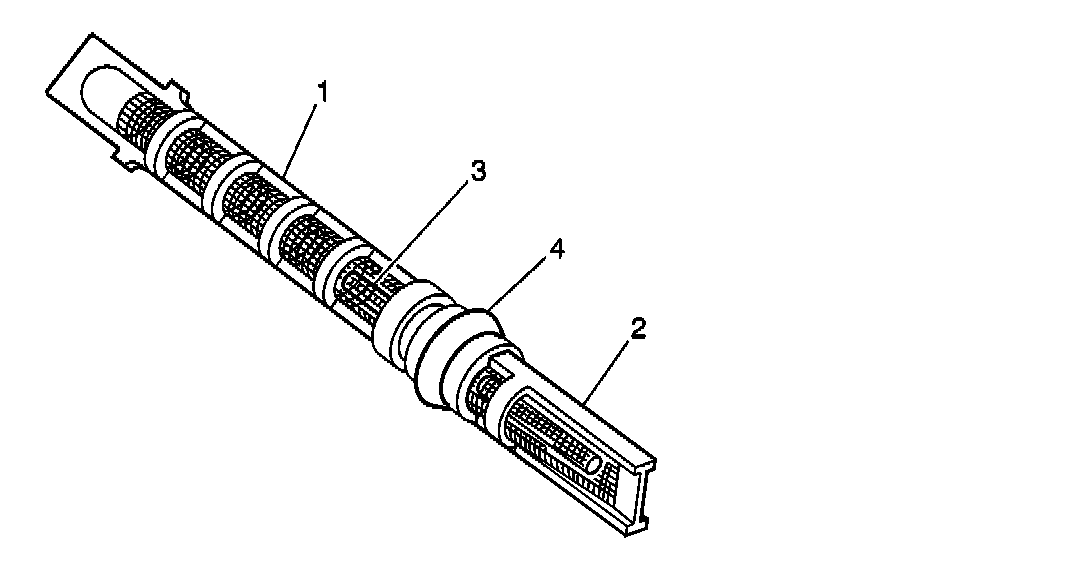

- Broken plastic frame, replace tube.
- Filter screen (1,2) torn, damaged or plugged with fine gritty material, replace tube.
- Brass orifice tube (3) damaged or plugged, replace tube.
- Filter screen (1) coated with metal chips, flakes, or slivers-coating may be removed with low pressure shop air and reused if cleaned satisfactorily.
If reusing the tube, install a new O-ring (4).
INSTALLATION PROCEDURE
1. Lightly coat the new orifice tube O-ring seal (4) with mineral base 525 viscosity refrigerant oil.
2. Remove the cap or tape from the evaporator tube.
3. Using needle-nose pliers, CAREFULLY grasp the edge of the expansion (orifice) tube (short filter screen (2) inlet side of tube) without touching the filter screen and insert the tube (long filter screen (1) outlet side first) fully into the evaporator line.
4. Using a lint-free clean, dry cloth, carefully clean the sealing surfaces of the tube fittings.
5. Install a new O-ring seal on the condenser tube.
Coat the O-ring seal with 525 viscosity refrigerant oil.

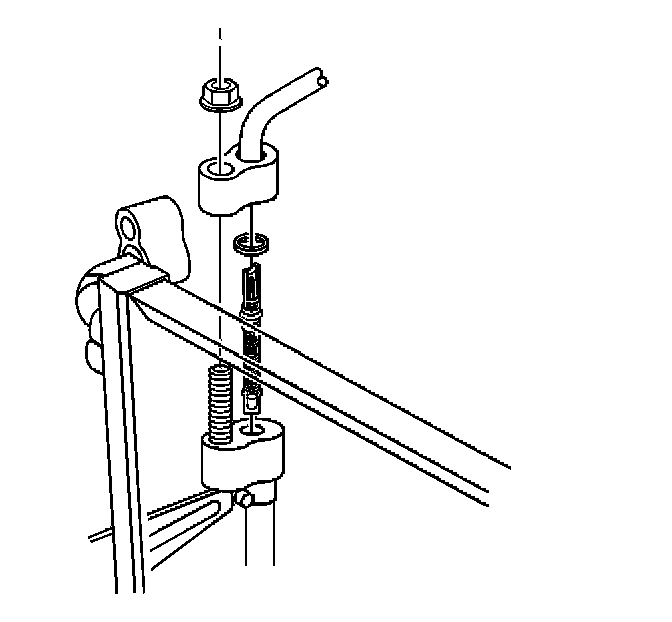

6. Install the evaporator tube.
7. Evacuate and recharge the A/C system.
8. Leak test the fittings of the component using the J 39400-A.
9. Install the hood close out filler panel.
