Blower Motor Resistor: Service and Repair

BLOWER MOTOR RESISTOR ASSEMBLY REPLACEMENT

REMOVAL PROCEDURE




1. Remove the blower motor.

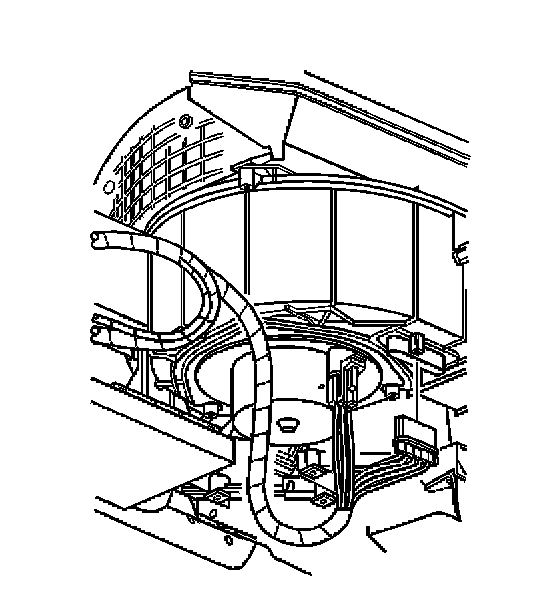

2. Disconnect the electrical connection at the blower motor resistor assembly.

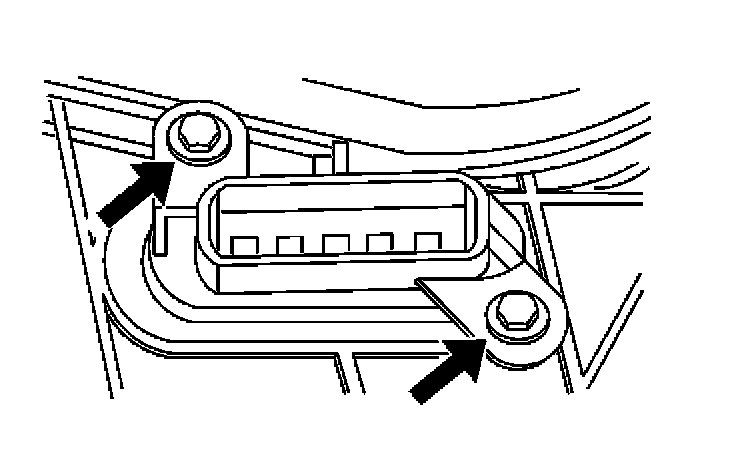

3. Remove the blower motor resistor assembly screws.
4. Remove the blower motor resistor assembly.

INSTALLATION PROCEDURE




1. Install the blower motor resistor assembly.

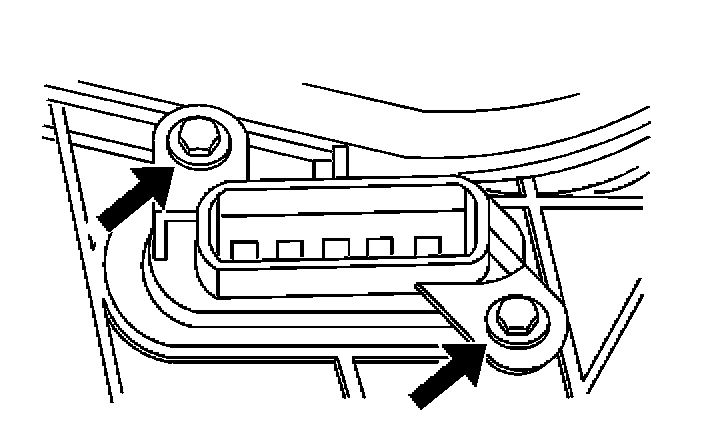

2. Install the blower motor resistor assembly screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 1 N.m (9 lb in).

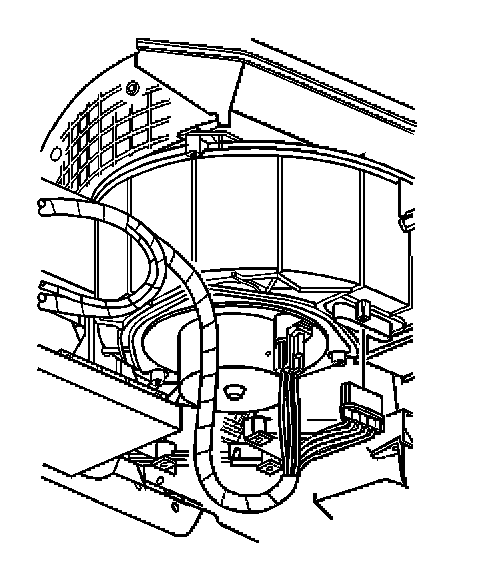

3. Connect the electrical connector to the blower motor resistor assembly.
4. Install the blower motor.
