Home >> Chevrolet >> 2004 >> Cavalier L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle

Manual Transmission/Transaxle

Transmission Component Location

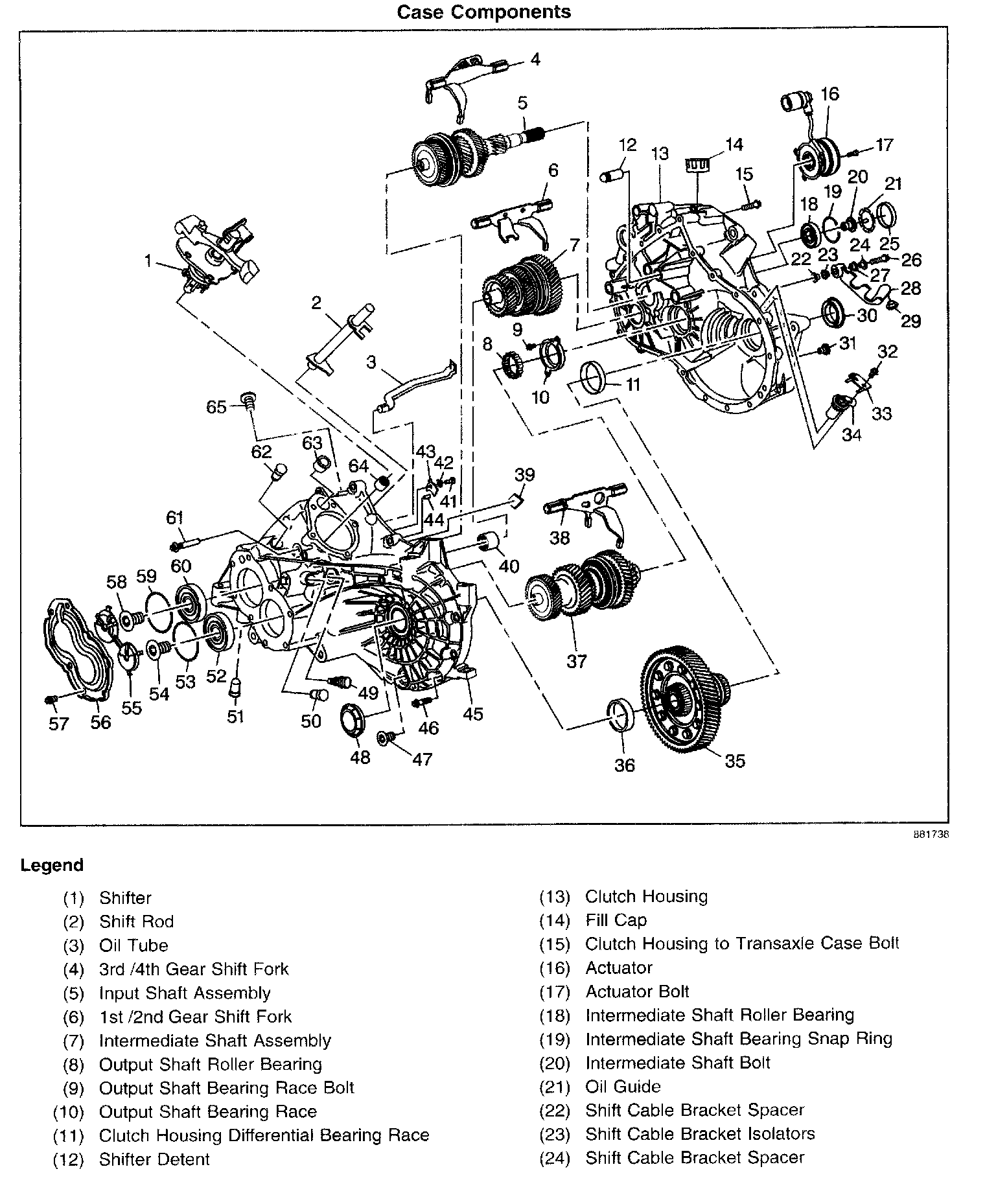

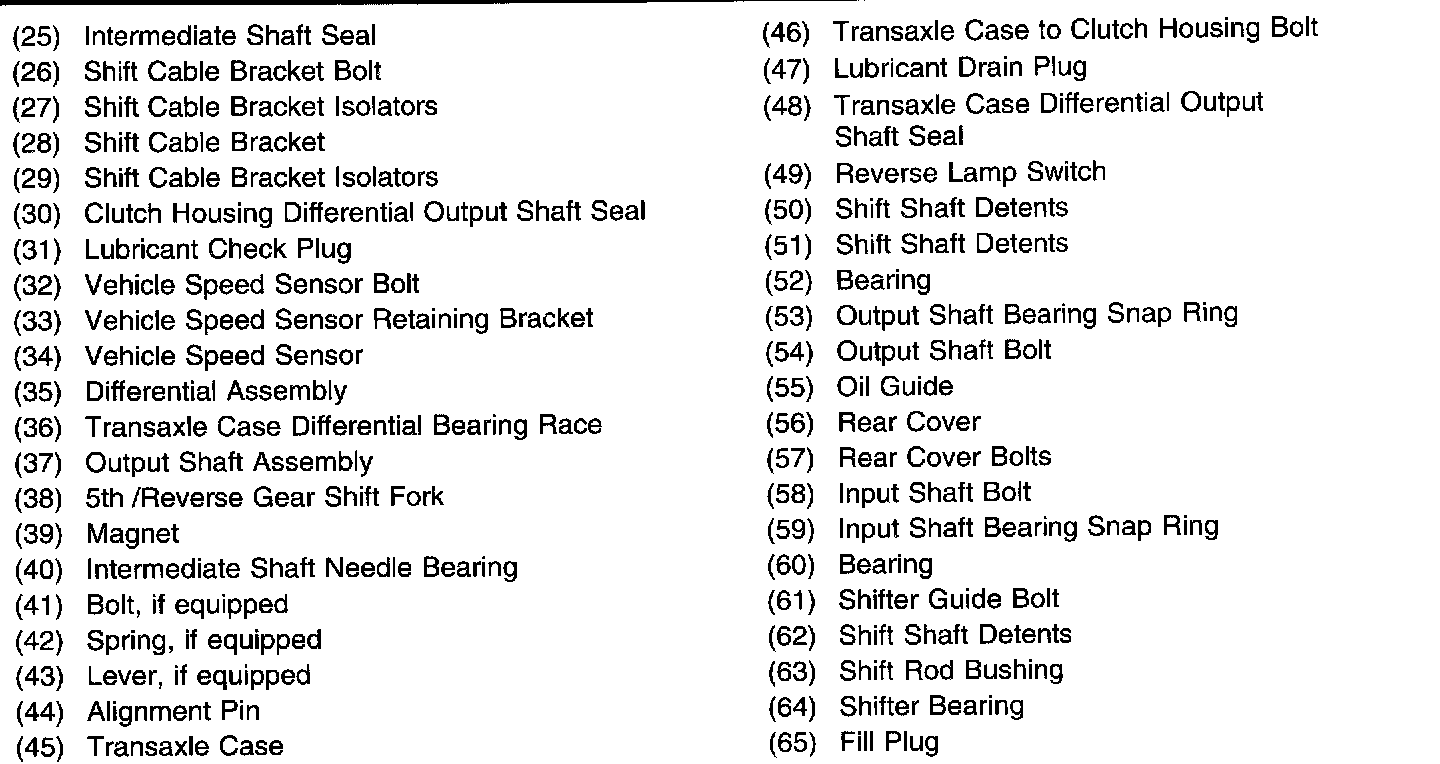

Case Components

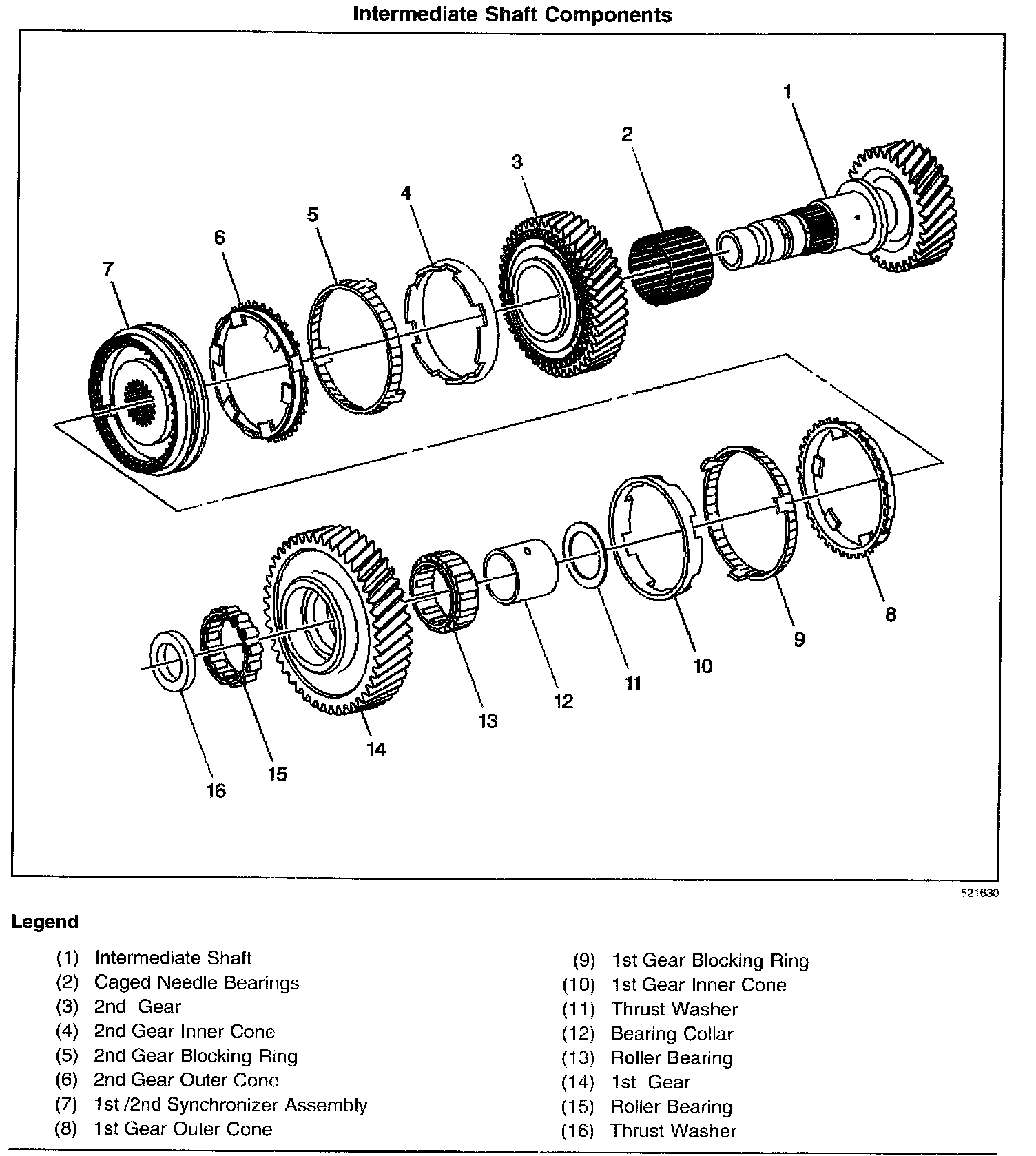

Intermediate Shaft Components

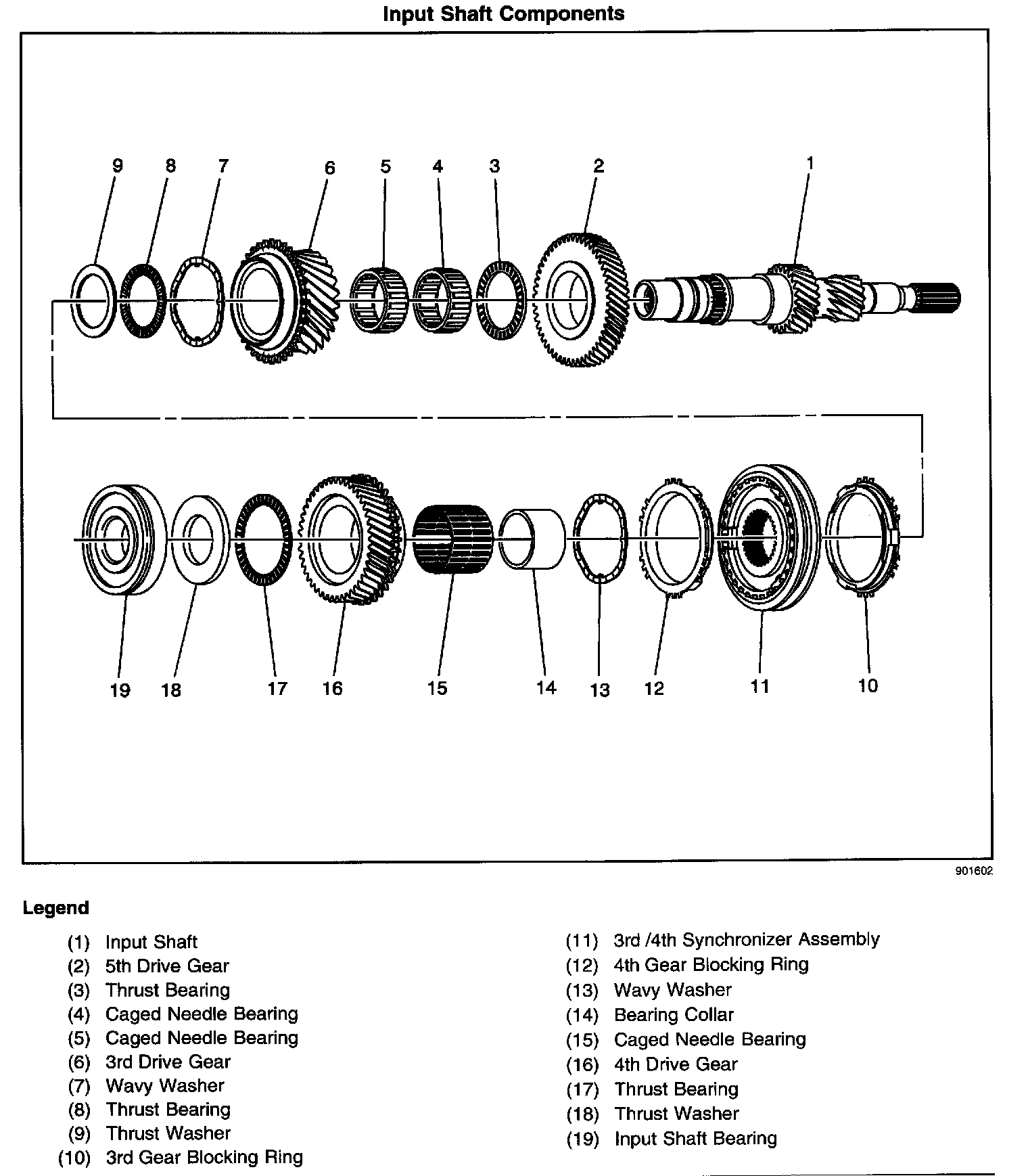

Input Shaft Components

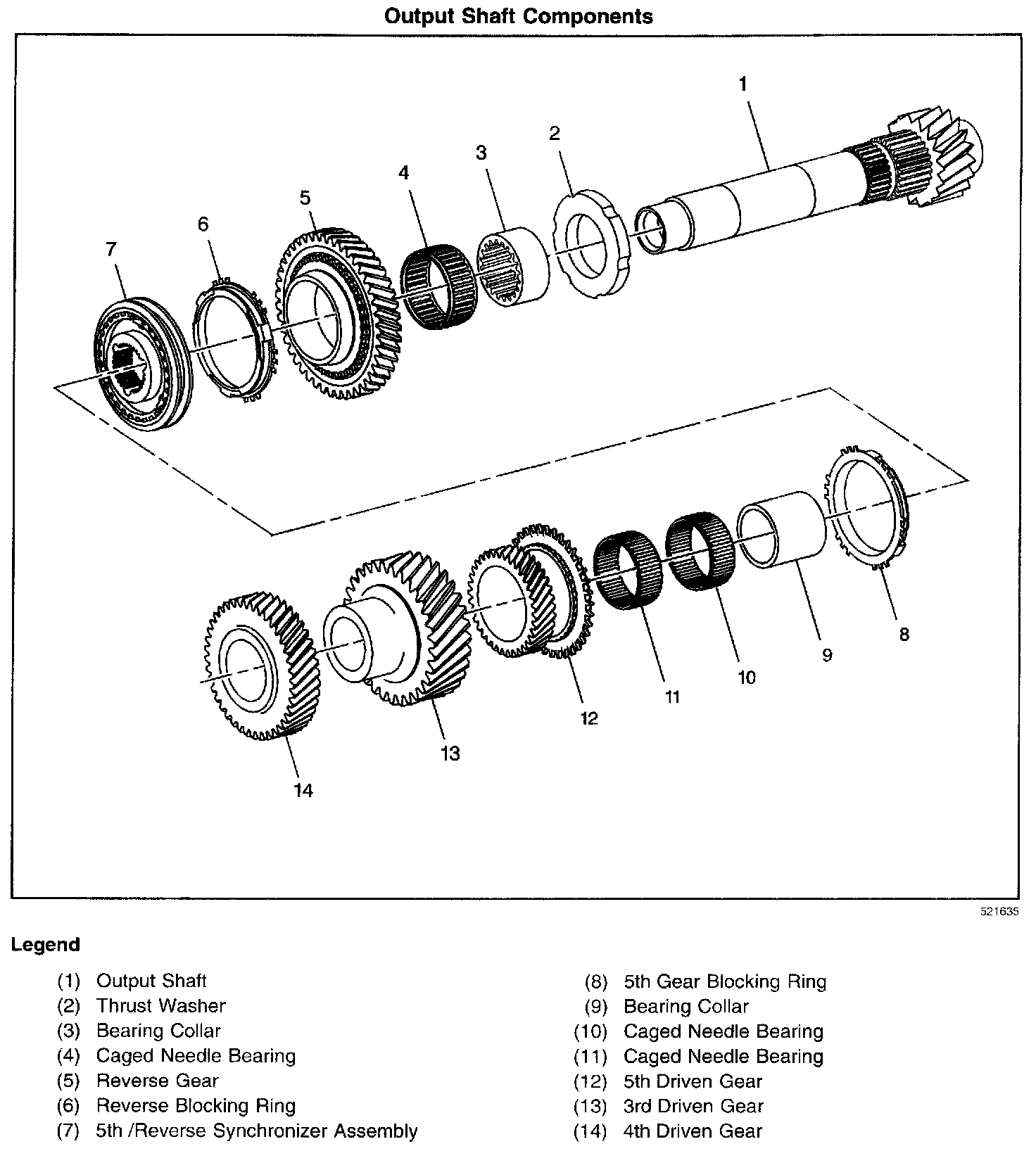

Output Shaft Components

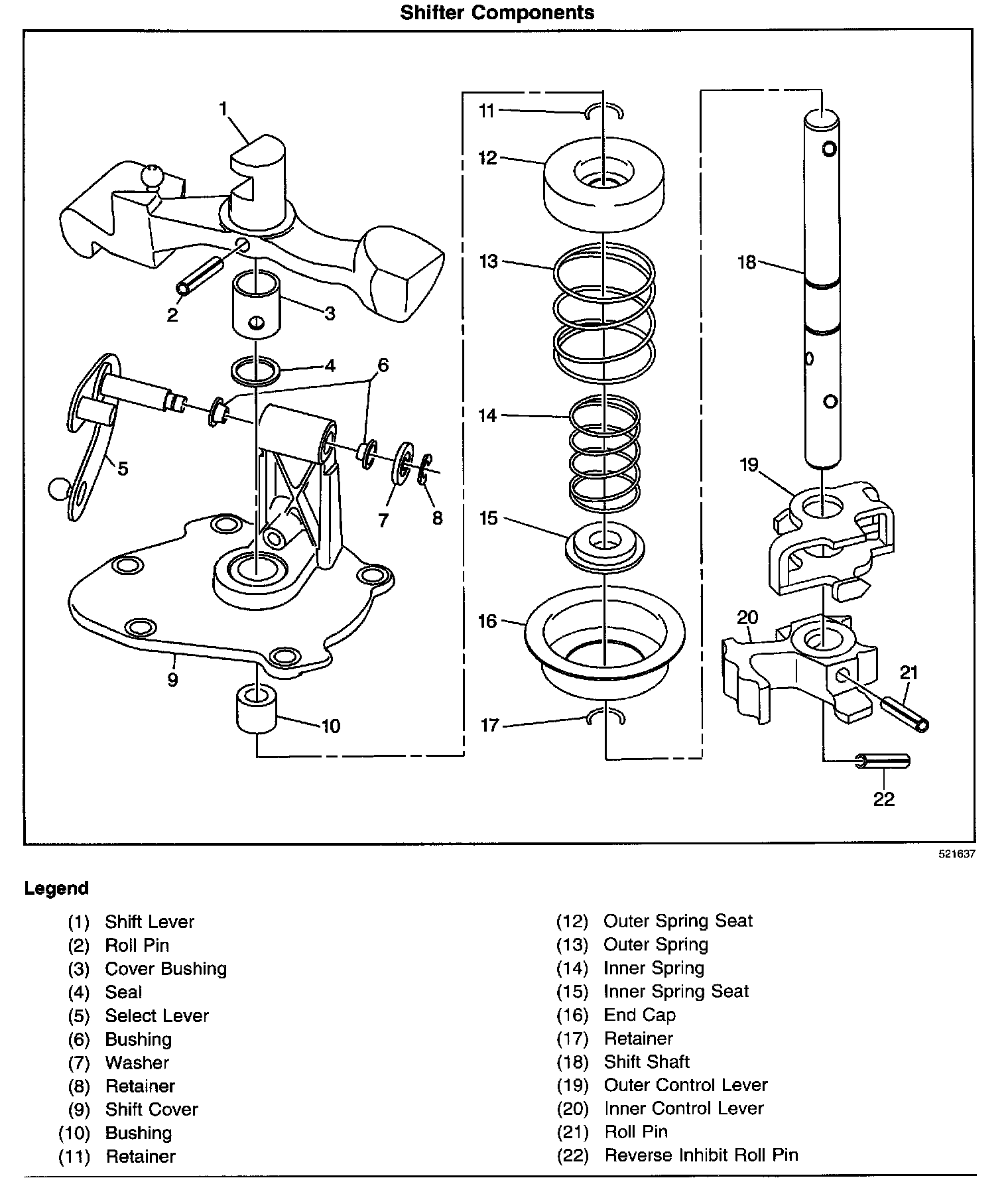

Shifter Components

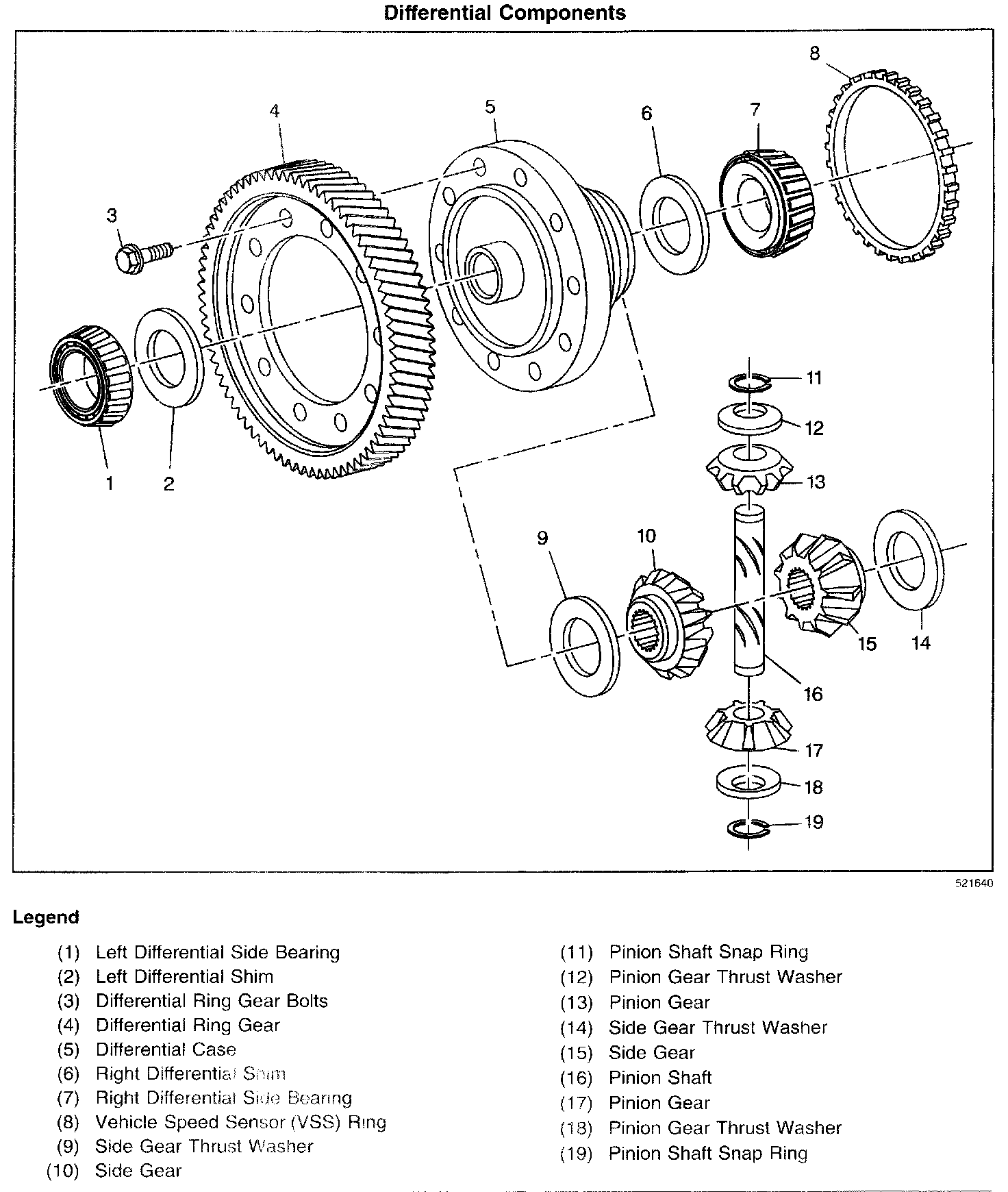

Differential Components
