Home >> Chevrolet >> 2004 >> Cavalier L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cellular Phone >> System Diagram >> Vehicle Communications Interface Module (VCIM) C2

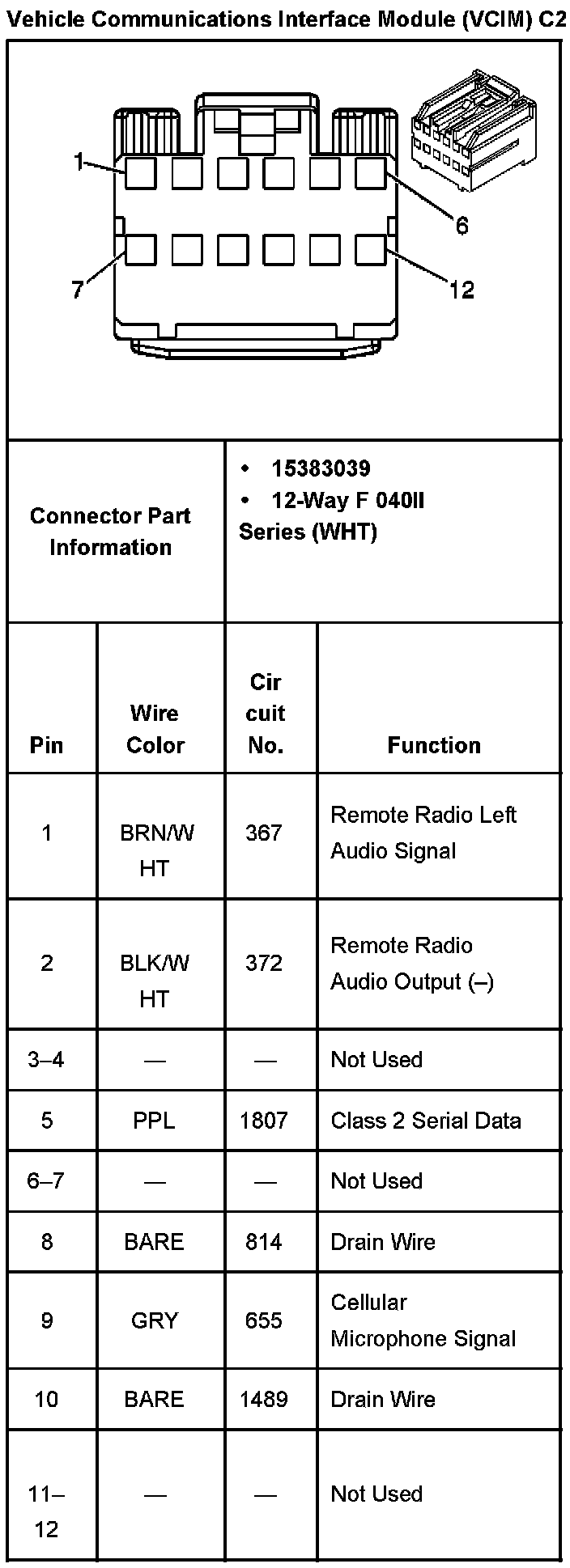

Vehicle Communications Interface Module (VCIM) C2

Vehicle Communications Interface Module (VCIM) C2:
