Brake Switch - TCC

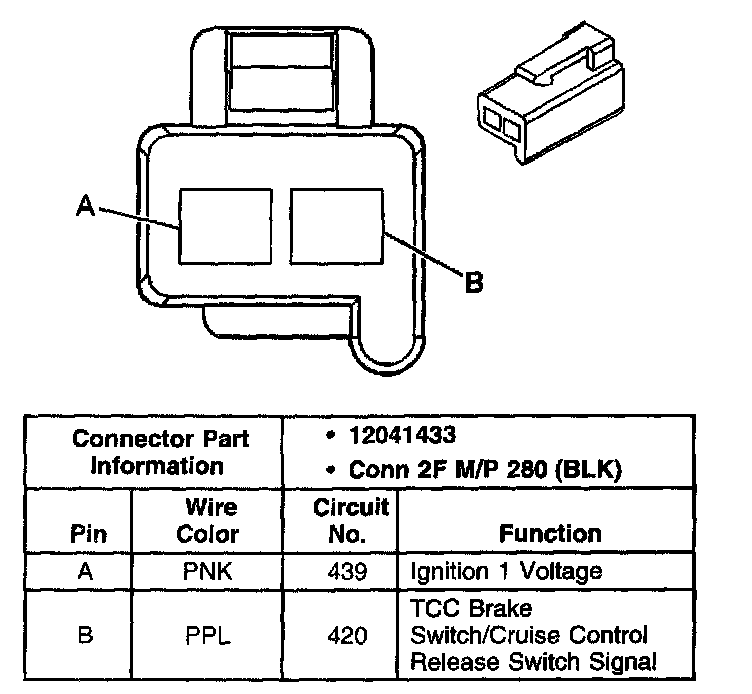

Two Way Brake Switch Connector, Wiring Harness Side:

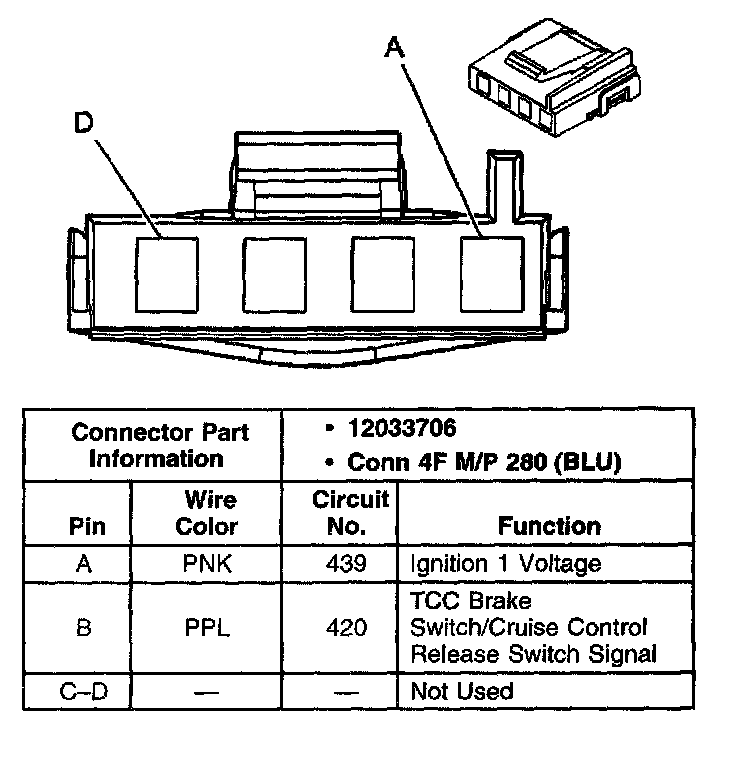

Four Way Brake Switch Connector, Wiring Harness Side:
