Amplifier, Sound System
>>
Audio Amplifier (With RPO Code UQ3)
Audio Amplifier (With RPO Code UQ3)

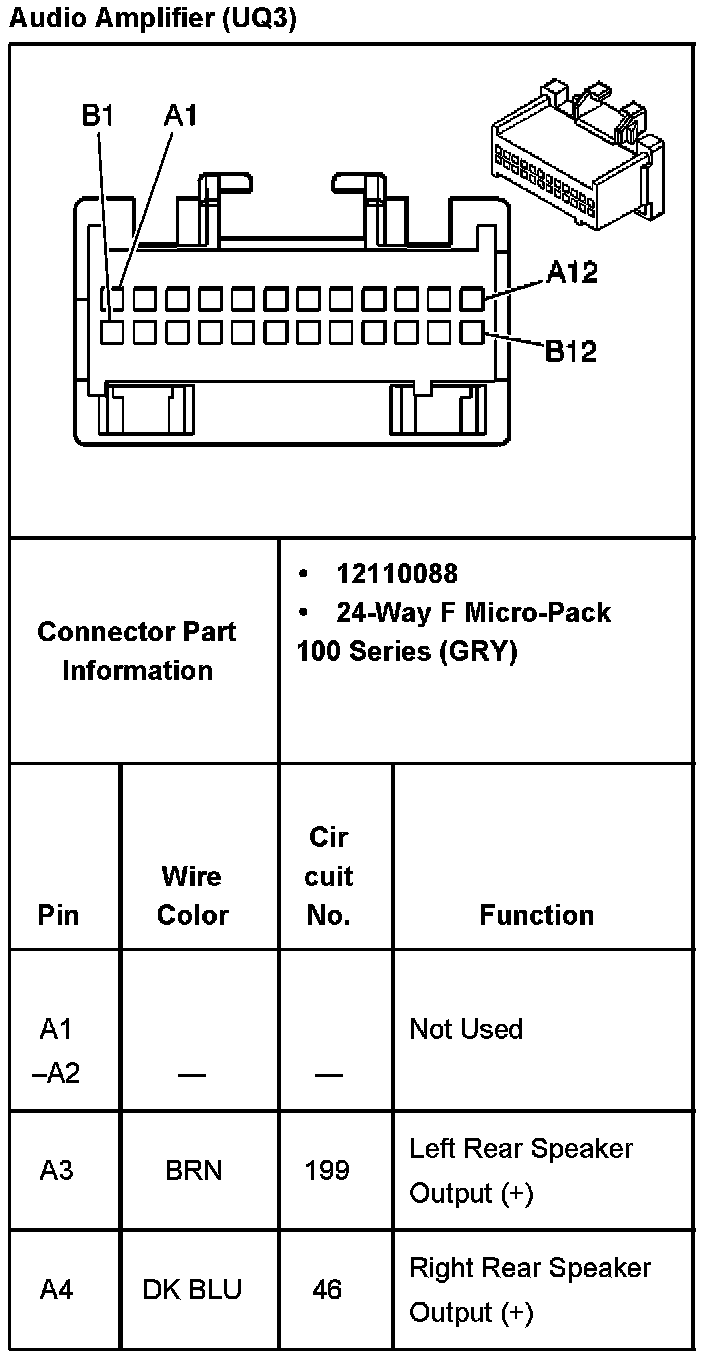

Audio Amplifier (With RPO Code UQ3) Part 1:

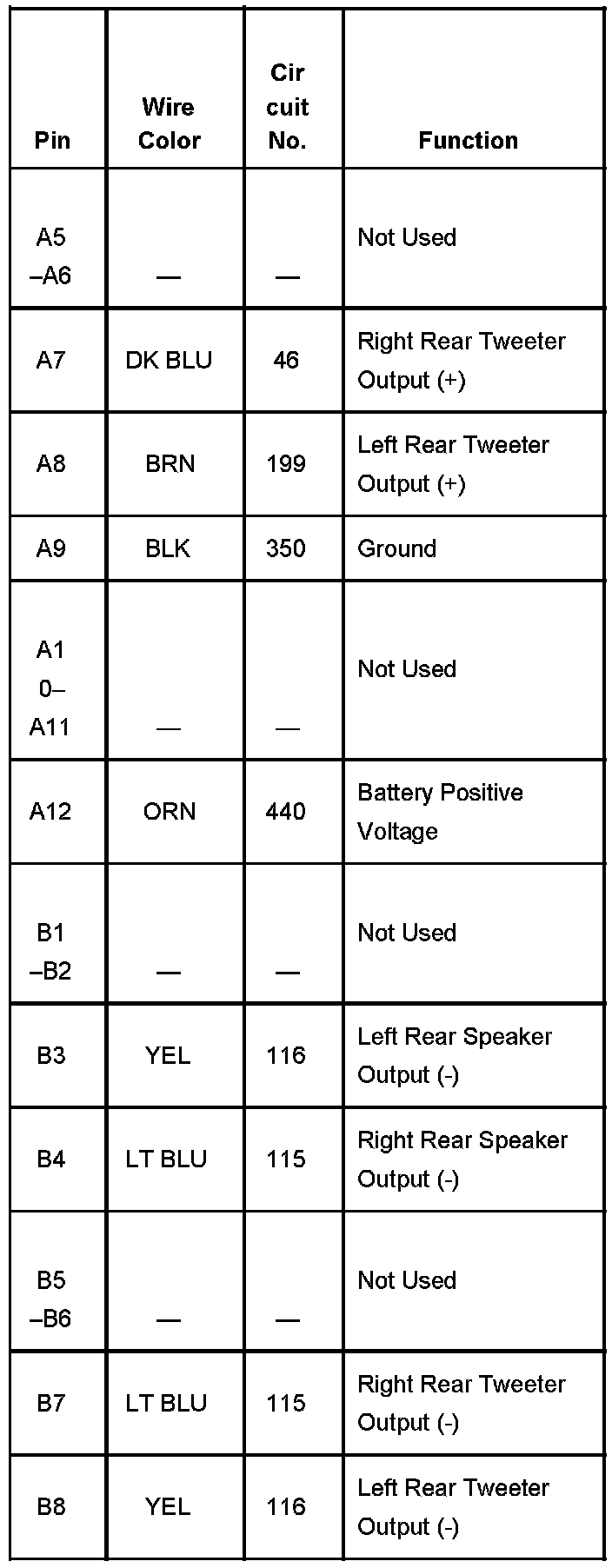

Audio Amplifier (with RPO Code UQ3) Part 2:

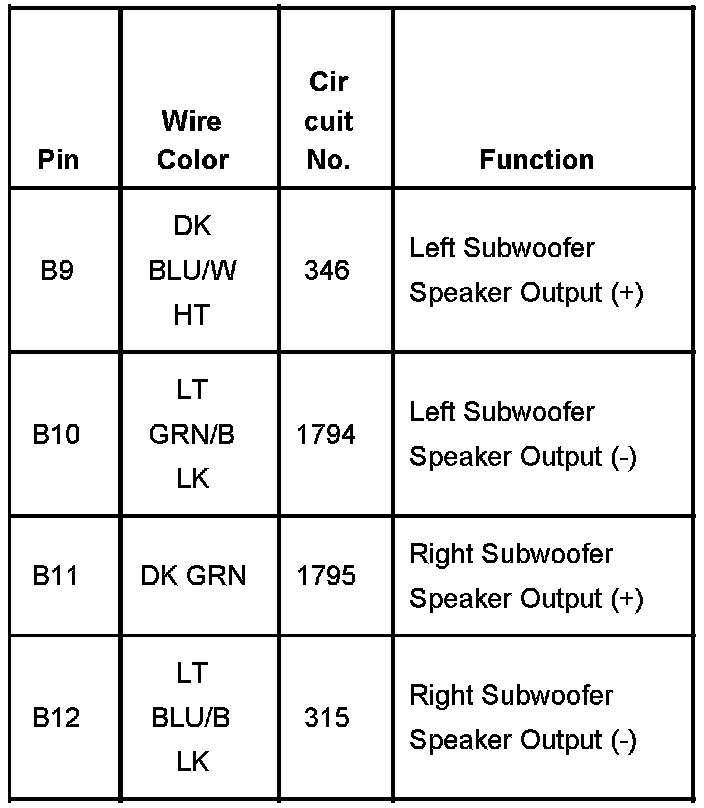

Audio Amplifier (With RPO Code UQ3) Part 3:
