Ignition Coil: Service and Repair

IGNITION COIL(S) REPLACEMENT

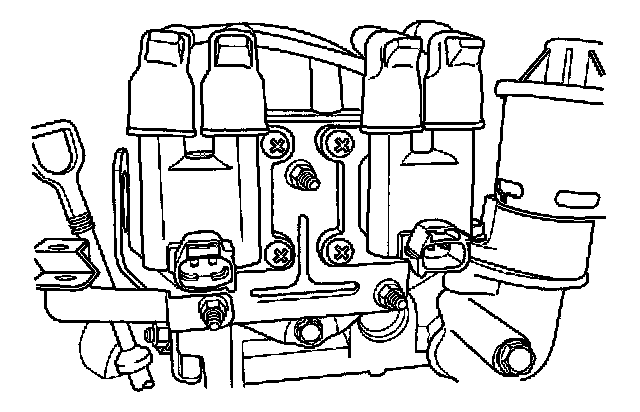

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.
2. Disconnect the electronic ignition (EI) system ignition coil connector.
3. Note the ignition wire location and remove the ignition wire.
4. Remove the EI system ignition coil retaining nuts.
5. Remove the EI system ignition coil.

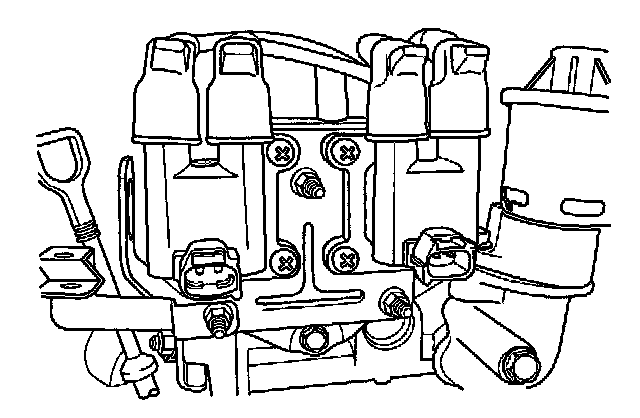

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the EI system ignition coil into the mounting location and install the retaining nuts.

Tighten
Tighten the EI system ignition coil retaining nuts to 10 N.m (89 lb in).

2. Connect the EI system ignition coil connector.
3. Connect the negative battery cable.
